Plm Lifting Magnet - HPLM-100
- SKU:
- HPLM-100
- Availability:
- Lead time varies. We will confirm ship date after order. Need exact lead time? Add to quote.
- Weight:
- 10.00 LBS
*Images are for visual reference only.
Description

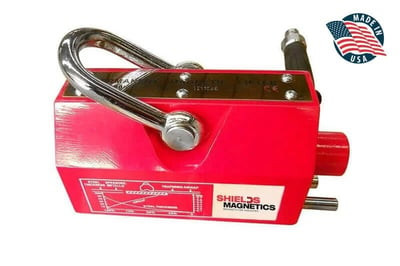

Plm Lifting Magnet - HPLM-100
Safest, strongest permanent lifting magnet.Features built-in safety factor of 3.3 times the rated load.PLM Lifting Magnets are used to move plate steel, block or round steel and iron material. The super-powerful lifting magnet requires no electricity. Perfect for loading or unloading most workpieces including press molds, plastic molds, machined parts, etc. Simply move the lever to the "ON" position to engage the lifting magnet. Spring-loaded lock keeps the magnet engaged until you release it. FOB Shipping Point. Never lift more than the maximum rated load. Surcharges may apply.
| Plate SteelMax. Rated Load (lbs.) | 220 |
|---|---|
| Plate SteelMinimum Thickness | .59" |
| Round SteelMax. Rated Load (lbs.) | 99 |
| Round SteelMax. Dia. | 5.9" |
| Max. Length | 40" |
| Wt.(lbs.) | 10 |
| Price. Ea. | $348.00 |
