Specialty Washers

Lock Washer - 40631BFG3/8" Lock Washers, External Tooth, Zinc Plated, BoxSpec Sheet PDF

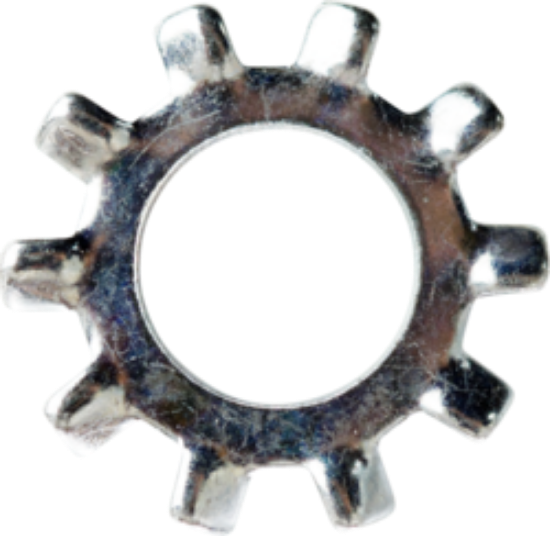

Lock Washer - 70941J1/2" External Tooth Lock Washers, Type 18-8 Stainless Steel,JarBrand NameMinerallacSub Brand CullyTypeExternal Tooth LockwasherApplicationThis is the most preferable of all tooth-lock washers. It offers the greatest locking efficiency...

Lock Washer - 70935J3/8" External Tooth Lock Washers, Type 18-8 Stainless Steel,JarBrand NameMinerallacSub Brand CullyTypeExternal Tooth LockwasherApplicationThis is the most preferable of all tooth-lock washers. It offers the greatest locking efficiency...

Lock Washer - 70925J1/4" External Tooth Lock Washers, Type 18-8 Stainless Steel,JarBrand NameMinerallacSub BrandCullyApplicationThis is the most preferable of all tooth-lock washers. It offers the greatest locking efficiency since the teeth are on the...

Lock Washer - 70916J#10 External Tooth Lock Washers, Type 18-8 Stainless Steel,JarBrand NameMinerallacSub Brand CullyTypeExternal Tooth LockwasherApplicationThis is the most preferable of all tooth-lock washers. It offers the greatest locking efficiency...

Lock Washer - 70911J#8 External Tooth Lock Washers, Type 18-8 Stainless Steel,JarBrand NameMinerallacSub Brand CullyTypeExternal Tooth LockwasherApplicationThis is the most preferable of all tooth-lock washers. It offers the greatest locking efficiency...

Lock Washer - 70906J#6 External Tooth Lock Washers, Type 18-8 Stainless Steel,JarBrand NameMinerallacSub Brand CullyMaterial18-8 Stainless SteelFastener Size#6TypeExternal Tooth LockwasherApplicationThis is the most preferable of all tooth-lock washers...

Lock Washer - 40626J5/16" Lock Washers, External Tooth, Zinc Plated, JarBrand NameMinerallacSub Brand CullyTypeExternal Locking WasherFastener Size5/16"MaterialSteelFinishZinc PlatedSpec Sheet PDF

Lock Washer - 40625J5/16" Lock Washers, Internal Tooth, Zinc Plated, JarBrand NameMinerallacSub Brand CullyTypeInternal Locking WasherFastener Size5/16"MaterialSteelFinishZinc PlatedSpec Sheet PDF

Lock Washer - 40621J1/4" Lock Washers, External Tooth, Zinc Plated, JarBrand NameMinerallacSub Brand CullyTypeExternal Locking WasherFastener Size1/4"MaterialSteelFinishZinc PlatedSpec Sheet PDF

Lock Washer - 40620J1/4" Lock Washers, Internal Tooth, Zinc Plated, JarBrand NameMinerallacSub Brand CullyFastener Size1/4"MaterialSteelFinishZinc PlatedTypeInternal Tooth LockwasherSpec Sheet PDF

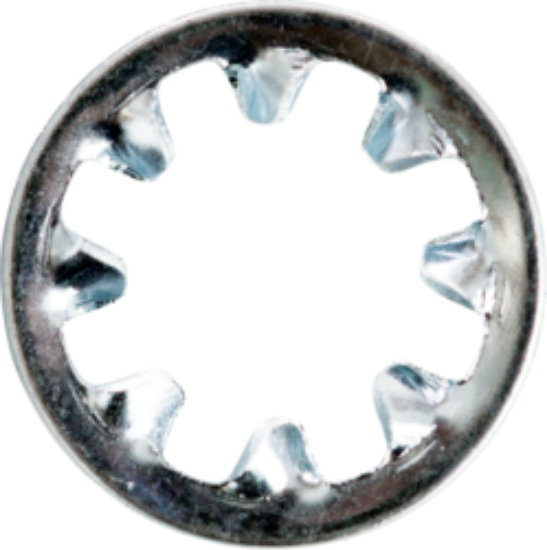

Lock Washer - 40615J#10 Lock Washers, Internal Tooth, Zinc Plated, JarBrand NameMinerallacSub Brand CullyTypeInternal Locking WasherFastener Size#10MaterialSteelFinishZinc PlatedSpec Sheet PDF

Lock Washer - 40611J#8 Lock Washers, External Tooth, Zinc Plated, JarBrand NameMinerallacSub Brand CullyTypeExternal Locking WasherFastener Size#8MaterialSteelFinishZinc PlatedSpec Sheet PDF

Lock Washer - 40616-1000#10 Lock Washers, External Tooth, Zinc Plated, BoxSpec Sheet PDF

Lock Washer - 40616J#10 Lock Washers, External Tooth, Zinc Plated, JarBrand NameMinerallacSub Brand CullyTypeExternal Locking WasherFastener Size#10MaterialSteelFinishZinc PlatedSpec Sheet PDF

Lock Washer - 40610J#8 Lock Washers, Internal Tooth, Zinc Plated, JarBrand NameMinerallacSub Brand CullyTypeInternal Locking WasherFastener Size#8MaterialSteelFinishZinc PlatedSpec Sheet PDF

Lock Washer - 40606J#6 Lock Washers, External Tooth, Zinc Plated, JarBrand NameMinerallacSub Brand CullyTypeExternal Locking WasherMaterialSteelFinishZinc PlatedFastener Size#6Spec Sheet PDF

Lock Washer - 40605J#6 Internal Tooth Lockwasher Zinc, JarBrand NameMinerallacSub Brand CullyTypeInternal Locking WasherMaterialSteelFinishZinc PlatedFastener Size#6Spec Sheet PDF

Lock Washer - 40631J3/8" Lock Washers, External Tooth, Zinc Plated, JarSpec Sheet PDF

Finish Cup Washer - 71115J#10 Finish Cup Washer, Type 18-8 Stainless Steel,JarSpec Sheet PDF

Finish Cup Washer - 71110J#8 Finish Cup Washer, Type 18-8 Stainless Steel,JarSpec Sheet PDF

Finish Cup Washer - 71105J#6 Finish Cup Washer, Type 18-8 Stainless Steel,JarSpec Sheet PDF

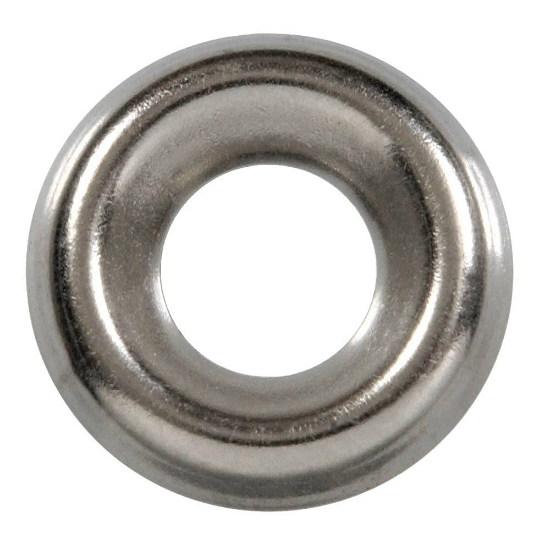

Finish Cup Washer - 71120J#12 Finish Cup Washer, Type 18-8 Stainless Steel,JarSpec Sheet PDF

Finish Cup Washer - 71125J#14 Finish Cup Washer, Type 18-8 Stainless Steel,JarSpec Sheet PDF

Finish Cup Washer - 71135J3/8" Finish Cup Washer, Type 18-8 Stainless Steel,JarSpec Sheet PDF

Finish Cup Washer - 43815J#10 Finish Cup Washer, Brass, JarBrand NameMinerallacSub Brand CullyTypeFinish Cup WasherApplicationDesigned for accommodating the heads of countersunk screws. It provides additional bearing area on the material being fastened...

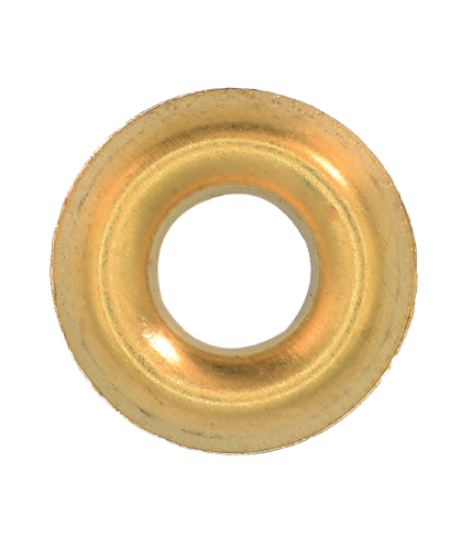

Finish Cup Washer - 43810J#8 Finish Cup Washer, Brass, JarBrand NameMinerallacSub Brand CullyTypeFinish Cup WasherApplicationDesigned for accommodating the heads of countersunk screws. It provides additional bearing area on the material being fastened...

Finish Cup Washer - 43805J#6 Finish Cup Washer, Brass, JarBrand NameMinerallacSub Brand CullyTypeFinish Cup WasherApplicationDesigned for accommodating the heads of countersunk screws. It provides additional bearing area on the material being fastened...

Belleville Washer - 40925HDBFG1/2" Belleville Washer, Heavy Duty, Spring Steel, CartonBrand NameMinerallacSub BrandCullyTypeSpecialty WashersFinishZinc PlatedMaterialSpring Steel – AISI 6150ID (Min)0.515"Fits Bolt Sizes1/2"OD (Max)1.125"THK Nom0.125"OH...

Belleville Washer - 40915HDJ3/8" Belleville Washer, Spring Steel, JarBrand NameMinerallacSub BrandCullyTypeSpecialty WashersFinishZinc PlatedMaterialSpring Steel – AISI 6150ID (Min)0.386"Fits Bolt Sizes3/8"OD (Max)1.188"THK Nom0.091"OH Ref0.121"Def...

Belleville Washer - 40925HDJ1/2" Belleville Washer, Heavy Duty, Spring Steel, JarBrand NameMinerallacSub BrandCullyTypeSpecialty WashersFinishZinc PlatedMaterialSpring Steel – AISI 6150ID (Min)0.515"Fits Bolt Sizes1/2"THK Nom0.125"OH Ref0.142"Def Nom0...

Belleville Washer - 40915BFG3/8" Belleville Washer, Spring Steel, CartonBrand NameMinerallacSub BrandCullyTypeSpecialty WashersFinishZinc PlatedMaterialSpring Steel – AISI 6150ID (Min)0.386"Fits Bolt Sizes3/8"OH Ref0.107"Def Nom0.025"Torque FT18.7...

Belleville Washer - 40925SSJ1/2" Belleville Washer, Type 18-8 Stainless Steel , JarBrand NameMinerallacSub BrandCullyTypeSpecialty WashersMaterial301 Full-Hard Stainless SteelID (Min)0.531"OD (Max)1.000"Fits Bolt Sizes1/2"THK Nom0.062"OH Ref0.093"Def...

Belleville Washer - 40925J1/2" Belleville Washer, Spring Steel, JarBrand NameMinerallacSub BrandCullyTypeSpecialty WashersFinishZinc PlatedMaterialSpring Steel – AISI 6150ID (Min)0.515"OD (Max)1.188"Fits Bolt Sizes1/2"THK Nom0.091"OH Ref0.117"Def Nom0...

Belleville Washer - 40925BFG1/2" Belleville Washer, Spring Steel, CartonBrand NameMinerallacSub BrandCullyTypeSpecialty WashersFinishZinc PlatedMaterialSpring Steel – AISI 6150ID (Min)0.515"OD (Max)1.188"Fits Bolt Sizes1/2"THK Nom0.091"OH Ref0.117"Def...

Belleville Washer - 40915SSJ3/8" Belleville Washer, Type 18-8 Stainless Steel , JarBrand NameMinerallacSub BrandCullyTypeSpecialty WashersMaterial301 Full-Hard Stainless SteelID (Min)0.380"OD (Max)0.755"Fits Bolt Sizes3/8"THK Nom0.040"OH Ref0.058"Def...

Belleville Washer - 40915J3/8" Belleville Washer, Spring Steel, JarBrand NameMinerallacSub BrandCullyTypeSpecialty WashersFinishZinc PlatedMaterialSpring Steel – AISI 6150ID (Min)0.386"OD (Max)1.063"Fits Bolt Sizes3/8"OH Ref0.107"Def Nom0.025"Torque...

Belleville Washer - 40910SSJ5/16" Belleville Washer, Type 18-8 Stainless Steel , JarBrand NameMinerallacSub BrandCullyTypeSpecialty WashersMaterial301 Full-Hard Stainless SteelID (Min)0.317"OD (Max)0.630"Fits Bolt Sizes5/16"OH Ref0.048"Def Nom0...

Belleville Washer - 40910J5/16" Belleville Washer, Spring Steel, JarBrand NameMinerallacSub BrandCullyTypeSpecialty WashersFinishZinc PlatedMaterialSpring Steel – AISI 6150Fits Bolt Sizes5/16"ID (Min)0.322"OD (Max)1.063"THK Nom0.082"OH Ref0.110"Def...

Belleville Washer - 40905SSJ1/4" Belleville Washer, Type 18-8 Stainless Steel , JarBrand NameMinerallacSub BrandCullyTypeSpecialty WashersMaterial301 Full-Hard Stainless SteelFits Bolt Sizes1/4"ID (Min)0.255"OD (Max)0.500"THK Nom0.025"OH Ref0.038"Def...
