Dixon

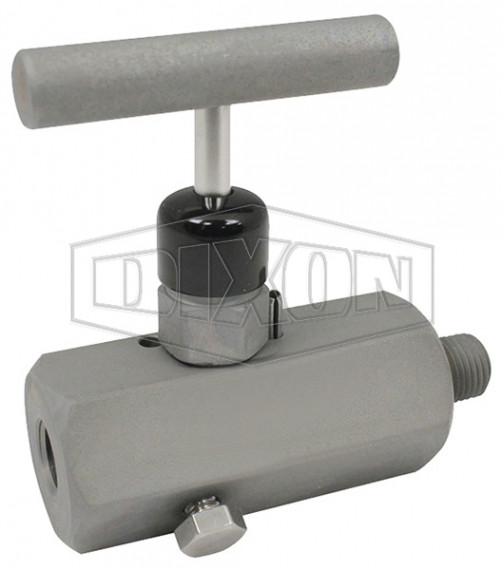

MFC704 - Block and Bleed Needle Valve
- SKU:
- MFC704
- Availability:
- Usually Ships Within 24 Hours
- Weight:
- 1.37 LBS
*Images are for visual reference only.
Description
Details
Construction
- Male to Female
- 316 Stainless Steel Stem
- Handle Style : T Design
Features
- Allows pressure to be bled off without disturbing the permanent piping installation allowing quick and easy removal or replacement of instruments
- FKM O-ring and PTFE back- up ring below the threads protects from corrosion and galling
- Stem threads are rolled for strength and ease of operation
- 0.090" bleed hole located on bottom is controlled by a 1/4" - 20 UNF-2A bleed screw
Specifications
Flow coefficient: 0.44
