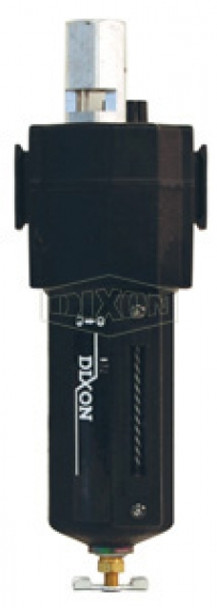

L74M-6MBPX - Series 1 L74-Series Standard Micro-Fog Lubricator

Micro-fog lubricators are used for applications containing one or more points of lubrication, cylinders and multiple or single tools.

• Metal bowl with sight glass
• 7 oz. reservoir
• Quick-release bayonet bowl
• Micro-fog design delivers aerosol mist
• High-pressure dome with aluminum case and fluorocarbon O-rings and seals
• High-pressure sight glass on bowls and metal petcock drain.

• Air flow through the lubricator lifts oil from the reservoir to the sight-feed dome. Oil is dropped into the fog generator and atomized into a fine mist. Lightweight particles are delivered downstream for lubrication. Heavier particles fall back into the reservoir.
• The micro-fog lubricator delivers 10% of the oil drops visible through the transparent sight-feed dome.

In-line or modular installation

• FRL's are designed for air service only, unless otherwise indicated.
• Micro-fog lubricators cannot be filled under pressure.
• Pressure rating given at ambient temperature 70°F.
• SCFM ratings at 90 PSIG inlet pressure

• Designed for use with alcohol or other anti-freeze agents when units are installed in cold temperature environments.
• Recommended lubricants: misting type oil rated 50 to 200 SSU (ISO Grade 7 to 46) at 100°F (38°C)
