Dixon

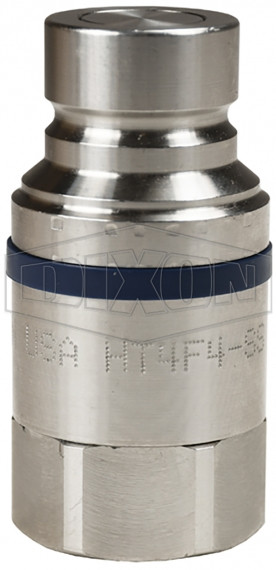

HT4F4-SS - HT-Series Flushface Female Threaded Plug
(No reviews yet)
Write a Review
- SKU:
- HT4F4-SS
- Availability:
- Usually Ships Within 24 Hours
- Weight:
- 0.42 LBS
*Images are for visual reference only.
Description
Details
Available Options
- Contact Dixon for all available option adders
- Oxy-clean treatment is available
Compatibility & Interchange Data
- Interchangeable to ISO16028
- Conforms to ISO16028 interchange standard interchangeable with Eaton/Hansen FF, Parker FEM, Snap-tite 74, Faster FFH/2FFN/2FFI, Stucchi A/FIRG and Holmbury HQ/A/FIMC
Construction
- Machined components are manufactured using solid bar stock
- Has molded Polyurethane valve seals, with a temperature range of -65° to +212°F
- Ancillary nipple seals are Nitrile (Nitrile Rubber), with a temperature range of -40°F to +250°F
- PTFE or TPC-ET Anti-Extrusion ring protects main coupling valve seal from dynamic impulse pressure damage.
Features
- High flow performance, compact profile
- Easily rebuildable!
- High strength laser-cut valve guide maximizes valve stability while minimizing flow restriction.
- Improved sealing system incorporates a high performance molded polyurethane or O-ring energized PTFE valve seal.
Specifications
Rated pressure for connected 316 Stainless Steel Coupler and 316 Stainless Steel Plug: 3,400 PSI (234 bar) Maximum Working and 17,000 PSI (1,172 bar) burst
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
