TPI Corporation
High Velocity Air Circulators - HHV18-480V-3
- SKU:
- HHV18-480V-3
- Availability:
- Lead time varies. We will confirm ship date after order. Need exact lead time? Add to quote.
- Weight:
- 45.00 LBS
Description

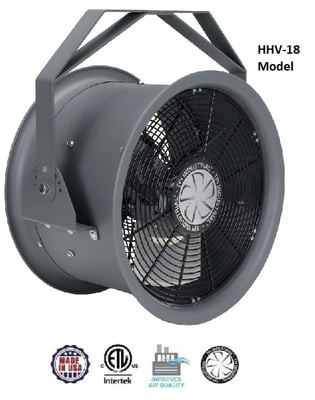

High Velocity Air Circulators - HHV18-480V-3
All steel construction.Fully enclosed motor.18", 24" & 30" model sizes.Heavy-duty yoke mounted fan head.Great for use in warehouses and loading dock areas.Housing designed for all types of air circulating applications to provide directional - high velocity air flow. Built-in rotating design allows the supplied mounting bracket to pivot 120 degrees in (9) adjustment setting at 15 degree variations. Front and rear spiral wound grills are OSHA approved and have a black coated finish. All units are shipped fully assembled and ready for hard-wired connections. TEAO motor has a Class B rating, with automatic thermal protection and ball bearing design for harsh environments; rated up to 115 degrees Fahrenheit maximum ambient temperature. Single and three phase options available in 120, 208/240, 277 and 480-volt. Mounting brackets sold separately. FOB Shipping Point. See Related Items tab for High Velocity Air Circulators - Mounting Brackets.
| Description | 18" 1/2 HP 373 Watts |
|---|---|
| Volts | 480 |
| Phase | 3 |
| CFM/RPM | 5000/1725 |
| SizeH x W x D | 25-7/8 x 23-3/8 x 13-1/2" |
| Amps | 1.0 |
| Wt.(lbs.) | 45 |
