Graco Twistork Helix Mixer Agitator Bung-Mounted Air-Driven Drum Mixer
(No reviews yet)
Write a Review
- SKU:
- 20G224854
- Availability:
- Allow 2-3 Days to Ship
- Weight:
- 18.00 LBS
*Images are for visual reference only.
Description
Graco Twistork Helix Mixer Agitator Bung-Mounted Air-Driven Drum Mixer

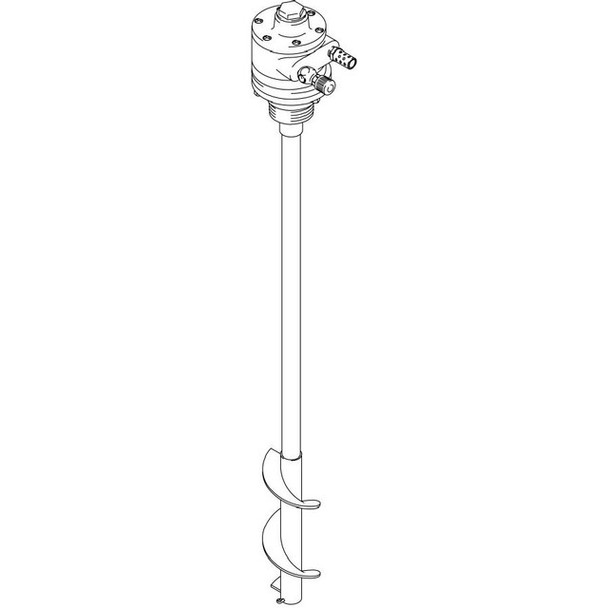

The Graco Twistork Helix Mixer Agitator (Part 224854) is a professional-grade air-driven drum agitator designed to mount through a 2-inch drum bung for efficient closed-head mixing of high-viscosity fluids. Featuring patented helix-shaped blades, this mixer provides gentle, thorough agitation without splashing or material degradation — ideal for coatings, resins, adhesives, and other industrial liquids. The sealed agitator drive helps prevent contamination and solvent evaporation, while the reversible, non-siphon design ensures reliable performance in demanding environments.
Specifications / Feature:
- Air-driven pneumatic agitator with 1.5 HP rotary vane motor for robust mixing performance.
- Bung mount design (2") for use with standard sealed drum tops.
- Helix-shaped mixing blades effectively handle high-viscosity materials up to 10,000 cP.
- Reversible, non-siphon configuration for agitation without material transfer.
- Sealed drive assembly minimizes contamination and solvent emission.
- Maximum speed: 800 RPM.
- Maximum working pressure: 100 psi (7 bar).
- Air inlet: 1/8 in. NPT.
- Weight: 17.6 lbs. (8 kg).
- Material: Carbon steel with fluoroelastomer/acetal wetted parts.
- Designed for 55 gallon (208 L) drums.
