Minerallac
Beam Clamp - BCUMW37EG
- SKU:
- BCUMW37EG
- Availability:
- Allow 1-2 Days to Ship
- Weight:
- 0.41 LBS
*Images are for visual reference only.
Description

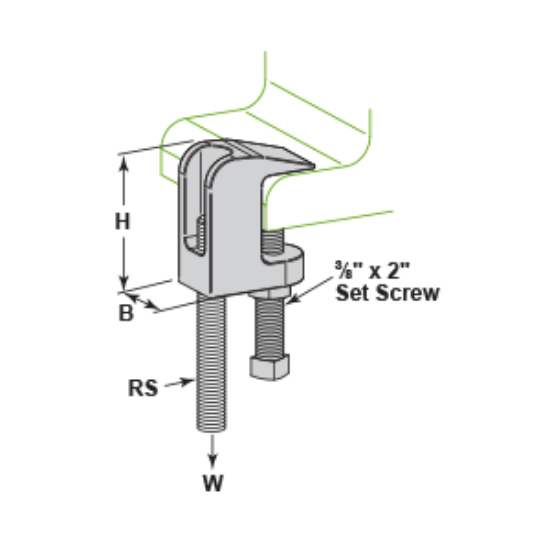

Beam Clamp - BCUMW37EG
Beam Clamp Universal Malleable Iron Wide Mouth 1-1/16" Flange 3/8" Rod, Zinc Plated
| Brand Name | Minerallac |
| Sub Brand | Strut Fittings |
| Material | Steel |
| Finish | Electro-galvanized |
| Width | 7/8" |
| Height | 1-15/16" |
| Rod Size | 3/8"-16 |
| Note | Do not over tighten set screw |
| Set Screw | 3/8" x 2" |
| Max. Flange Thickness | 1-1/16" |
| Maximum Load | 400 lbs. |
Spec Sheet PDF
