Minerallac
Beam Clamp - BCUM50EG
- SKU:
- BCUM50EG
- Availability:
- Allow 1-2 Days to Ship
- Weight:
- 0.32 LBS
*Images are for visual reference only.
Description

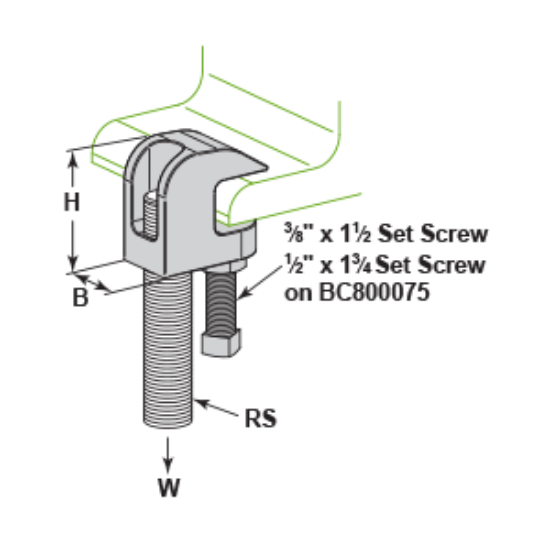

Beam Clamp - BCUM50EG
Beam Clamp Universal Malleable Iron 5/8" Flange 1/2" Rod, Zinc Plated
| Brand Name | Minerallac |
| Sub Brand | Strut Fittings |
| Material | Steel |
| Finish | Electro-galvanized |
| Width | 1" |
| Height | 1-3/8" |
| Set Screw | 3/8" x 1-1/2" |
| Max. Flange Thickness | 5/8" |
| Note | Do not over tighten set screw |
| Maximum Load | 470 lbs. |
| Rod Size | 1/2"-13 |
Spec Sheet PDF
