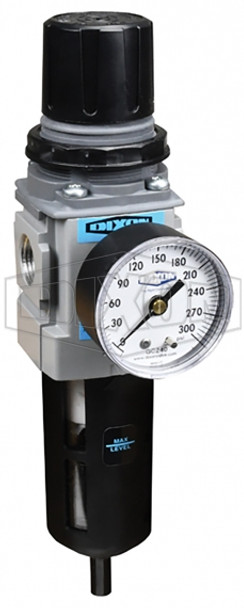

B18-02MG - Wilkerson FRLs B18-Series Compact Filter/Regulator

• Over-under units are space savers and provide for installation in tight areas.
• One common inlet/outlet for both filter and regulator saves on piping costs.

Manual Drain, Transparent Bowl and Guard

• 5 - 125 PSIG adjusting range for transparent bowl with guard
• 5 micron element
• 1.72 oz. bowl
• Self-relieving standard
• Spring-loaded diaphragm
• Transparent Bowl supplied with GC230 gauge

• FRL's are designed for air service only, unless otherwise indicated.
• SCFM ratings at 100 PSIG inlet pressure

• To increase regulated pressure, pull adjusting knob and turn clockwise. To reduce pressure, turn knob counter clockwise. To lock knob, push down.
• Two 1/4" gauge ports located on the front and rear faces of the body. These ports may be used as additional regulated ports or for pressure gauges. Plug unused port(s).
