Dixon

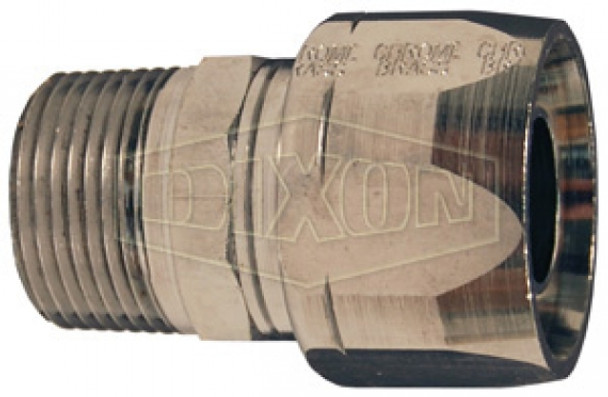

850811 - Dubl-Grip® Field Attachable Non-Swivel Coupling for Curb Pump Hose
(No reviews yet)
Write a Review
- SKU:
- 850811
- Availability:
- Usually Ships Within 24 Hours
- Weight:
- 0.67 LBS
*Images are for visual reference only.
Description
Details
Features
- Two-piece field attachable coupling
- Streamlined design prevents damage to hose and fits well on new pump equipment.
- Wide, flat surfaces of body threads protect inside of hose from breaking.
- Tapered surfaces of sleeve and body cradle hose, prevent one-point strain from flexing.
- Hose is gripped on its full circumference in two places, ensuring a rigid leak-proof connection.
- Couplings have standard male NPT threads
Installation
Easy assembly: hose is held in position by sleeve as body is threaded home, only a wrench is required to assemble the Dubl-Grip®.
Safety Notes
- Reattach static wire if required.
- Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
Specifications
UL recognized
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
