Dixon

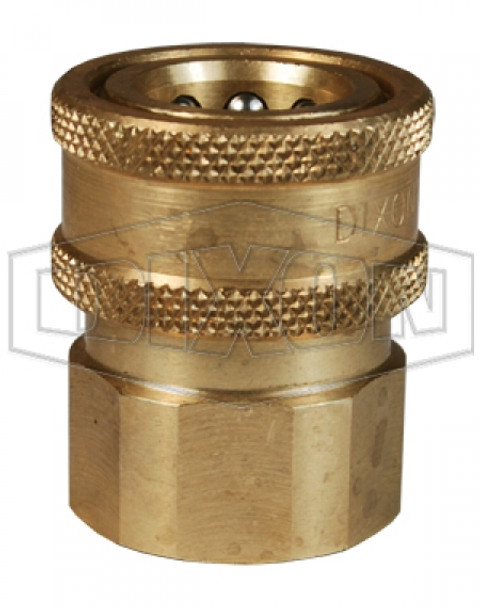

4VF4-B-E - V-Series Unvalved Female Coupler
- SKU:
- 4VF4-B-E
- Availability:
- Usually Ships Within 24 Hours
- Weight:
- 0.39 LBS
*Images are for visual reference only.
Description
Details
Available Options
- Contact Dixon for all available option adders
- Standard seal options include: FKM, EPDM, Steam-EP, FDA FKM, Mil-Nitrile, Fuel Nitrile and Silicone
- Kalrez® seal options include: 4079, 6375 and 7075
- Valve options include: Unvalved, tubular, steel, brass and 316 stainless steel
- Sleeve options include: Sleeve-lock, Flanged and Silicone-flanged
- Oxy-clean treatment is available
Compatibility & Interchange Data
- Interchangeable to MIL-C-51234
- Snap-Tite H and Faster TNV
Construction
- Machined components are manufactured using solid bar stock
- Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
- Steel componentry is plated using ROHS Compliant Trivalent Chrome.
- Steel coupler sleeves are hardened to resist deformation and maximize service life.
- Nitrile (Nitrile Rubber) seals are standard
- All couplers incorporate a PTFE anti-extrusion ring to protect the seal components from dynamic impulse damage.
Features
General purpose hydraulic quick-connect provides superior flow characteristics with built-in reliability
Note
Minimum burst pressure ratings were established under laboratory conditions using a Static Burst Unit (SBU). For high impulse applications and to meet Det Norske Veritas (DNV) compliance, the burst pressure must be divided by four (4) to ensure a 4:1 safety factor during system operation.
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
