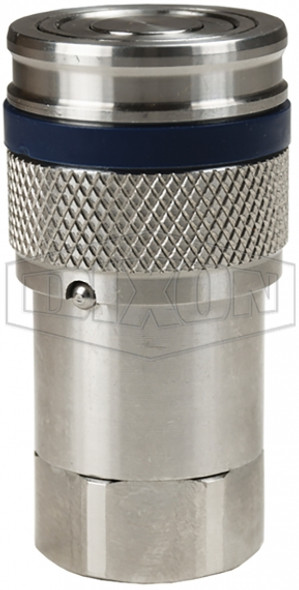

4HTF4 - HT-Series Correct Connect® Flushface Female Threaded Coupler

Used in equipment for oilfield, industrial hydraulic, and construction

• Contact Dixon for all available option adders
• Standard seal options include: FKM, EPDM, FDA FKM, Mil-Nitrile, Fuel Nitrile and Silicone
• Kalrez® seal options include: 4079, 6375 and 7075
• Oxy-clean treatment is available

• Interchangeable to ISO16028
• Conforms to ISO16028 interchange standard interchangeable with Eaton/Hansen FF, Parker FEM, Snap-tite 74, Faster FFH/2FFN/2FFI, Stucchi A/FIRG and Holmbury HQ/A/FIMC

• Machined components are manufactured using solid bar stock
• Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
• Steel componentry is plated using ROHS compliant zinc nickel for corrosion resistance.
• Steel coupler sleeves are hardened to resist deformation and maximize service life.
• Couplers have polyurethane valve stem O-Ring, with a temperature range of -65° to +212°F
• Ancillary coupler seals are Nitrile (Nitrile Rubber), with a temperature range of -40°F to +250°F
• PTFE or TPC-ET Anti-Extrusion ring protects main coupling valve seal from dynamic impulse pressure damage.

• High flow performance, compact profile
• Easily rebuildable
• DORS (dual opposing retention spheres) retention system prevents valve stem ejection during surge flow and pressure spike conditions.

• Rated pressure for connected Steel Coupler and Steel Plug: 5,000 PSI (345 bar) Maximum Working and 20,000 PSI (1,379 bar) burst
• Rated pressure for uncoupled Steel Coupler: 5,000 PSI (345 bar) Maximum Working and 20,000 PSI (1,379 bar) burst
