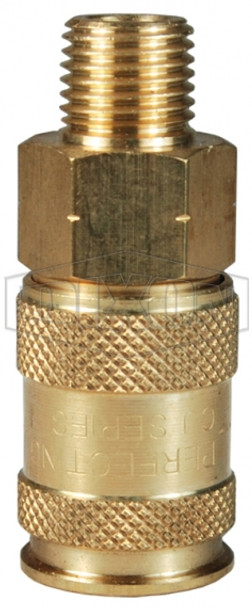

3CJBM3-B - CJ-Series Pneumatic Male Threaded Coupler

• European High-Flow Interchange
• Interchanges with Rectus 27KA, CEJN 410 and other like designs

• Machined components are manufactured using solid brass bar stock.
• Stainless steel springs. Carbon steel balls and retaining rings.
• Nitrile (Nitrile Rubber) seals are standard

It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.

• Rated pressure for connected Brass Coupler & Brass Plug: 300 PSI (20 bar) Maximum Working and 4,400 PSI (300 bar) Burst
• Rated pressure for connected Brass Coupler & Steel Plug: 300 PSI (20 bar) Maximum Working and 8,000 PSI (552 bar) Burst
