Dixon

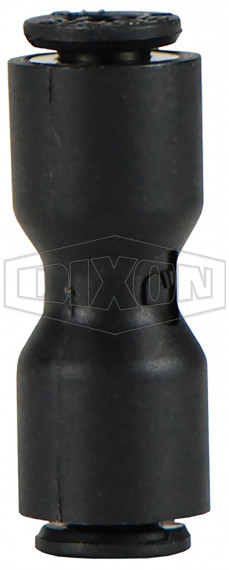

31066000 - Legris Nylon Push-In Union
- SKU:
- 31066000
- Availability:
- Usually Ships Within 24 Hours
- Weight:
- 0.01 LBS
*Images are for visual reference only.
Description
Details
Construction
- Black body is glass-filled nylon
- Nitrile Rubber D seal
- Polypropylene release button
- Silicone free
Features
- Positive seal: sealing and holding is accomplished instantaneously
- Reusable: connect and disconnect numerous times
- Full flow: fitting seals on outside diameter of tubing
Installation
- Quick connect and disconnect, no tools required.
- To connect, simply push tubing in.
- To disconnect, press the release ring towards the fitting and pull tubing out.
Safety Notes
- Maximum circuit pressure depends equally on the type and diameter of the tube used.
- Pressure rating given at ambient temperature 70°F/21°C.
Use
- Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube
- Vacuum capability: vacuum of 28" Hg (99% vacuum)
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
