Dixon

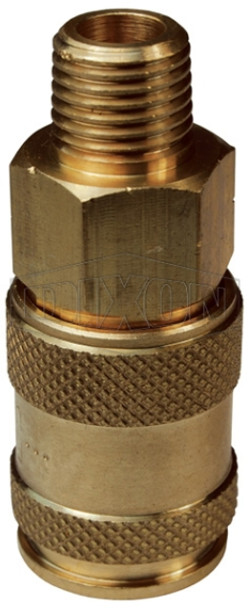

2UBM2-B - U-Series Universal Pneumatic Male Threaded Coupler
(No reviews yet)
Write a Review
- SKU:
- 2UBM2-B
- Availability:
- Usually Ships Within 24 Hours
- Weight:
- 0.24 LBS
*Images are for visual reference only.
Description
Details
Compatibility & Interchange Data
- 2U-Series 6-in-1 (ARO 210, Industrial, Truflate, Lincoln, Italian, and CEJN 320)
- Parker UC-Series, Hansen Auto-Flo 23 and Coilhose Series UC
Construction
- Machined components are manufactured using solid bar stock.
- Stainless steel springs. Carbon steel balls and retaining rings.
- Valve components are machined from solid brass bar stock.
- Nitrile (Nitrile Rubber) seals are standard
Safety Notes
- Note: Many competitive Universal couplings are unable to match the performance capabilities of the Dixon U-Series. Although the universal coupler permits multiple series nipples to mate with one coupler, it is recommended to match like series couplers and nipples. When using a universal coupler, the lower performance rating between the coupler and the nipple must take precedence.
- Dry Air: Some pneumatic applications require the pressurized air to be 'dried' to ensure proper operation of equipment and/or application of product (ie. Auto body shops). It is best to match like series couplers and nipples in these applications. If it is necessary to use a Universal coupler, lube the seal and valve area regularly to ensure reliable service.
Specifications
- Rated pressure when connected with Steel DF Plug: 2,800 PSI (193 bar) Burst
- Rated pressure when connected with Steel CJ Plug: 9,500 PSI (655 bar) Burst
- Rated pressure when connected with Steel J Plug: 6,400 PSI (441 bar) Burst
- Rated pressure when connected with Steel M Plug: 4,300 PSI (297 bar) Burst
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
