Description

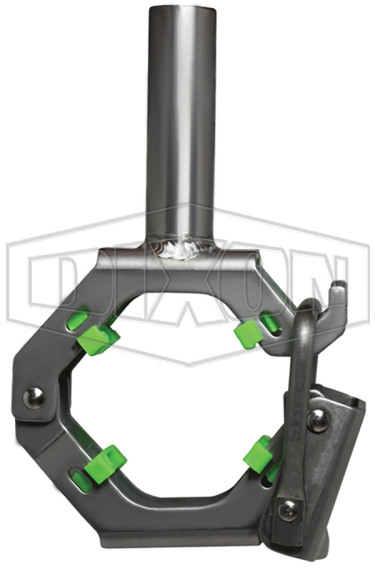

24TH-Series Threadless Hanger
The 24TH-series threadless hanger from Dixon® Sanitary introduces a new level of efficiency and hygienic design to the hanger market.
This tube hanger incorporates a snap-secure latch system that simplifies and significantly reduces installation times by eliminating the standard thread design. The self-contained inserts guide and protect your tubing.
24TH-Series Threadless Hanger PDF
Applications
• Mounted processing lines
• Skid building
Features
• Partial open position allows for adjustment of tubing prior to final lock in
• Threadless design and bacteria-resistant architecture
• The snap-in clip insert assembly makes this hanger easy to assemble
- Optionally compatible with our standard sleeve (inserts removed)
• Save time on installation with no tools needed
• Meets MSS SP-58 load ratings
Specifications
• Mounting: compatible with up to 3/4” diameter rod
• Materials of construction
- Top and bottom halves and latch: 304 stainless steel
- Hook: 304 stainless steel spring wire
- Clip inserts: polypropylene
- Sleeve: polypropylene
