Dixon

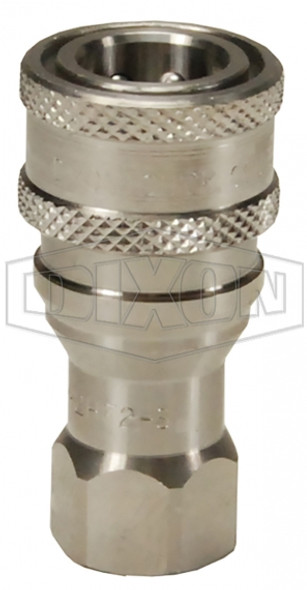

1HF1-S - H-Series ISO-B Poppet Valve Female Threaded Coupler
(No reviews yet)
Write a Review
- SKU:
- 1HF1-S
- Availability:
- Usually Ships Within 24 Hours
- Weight:
- 0.14 LBS
*Images are for visual reference only.
Description
Details
Available Options
- Contact Dixon for all available option adders
- Standard seal options include: FKM, EPDM, Steam-EP, FDA FKM, Mil-Nitrile, Fuel Nitrile, PTFE and Silicone
- Kalrez® seal options include: 4079, 6375 and 7075
- Valve options include: Unvalved, actuator, steel, brass, 303 stainless steel and 316 stainless steel
- Sleeve options include: Sleeve-lock, Flanged and Silicone-flanged
- Oxy-clean treatment is available
Compatibility & Interchange Data
- Meets dimensional requirements of ISO 7241 Series B
- Interchangeable with Parker-Hannifin 60 Series, Snap-Tite 72-Series, Hansen HK-Series, Faster Series 'HNV', Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX
Construction
- Machined components are manufactured using solid bar stock
- Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
- Steel componentry is plated using ROHS Compliant Trivalent Chrome.
- Steel coupler sleeves are hardened to resist deformation and maximize service life.
- Nitrile (Nitrile Rubber) seals are standard
- Redundant o-ring sealing system with PTFE backup ring
Features
Poppet style shut-off valves
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
