150# 316 Stainless Steel Full-Port RTFE Flanged Ball Valve

(No reviews yet) Write a Review
Availability:
Usually Ships Same Day
Weight:
0.00 LBS
*Images are for visual reference only.
$116.34 - $3,127.10

Represents the combined quantity sold of all the sizes under this product SKU.
Sold:

Description

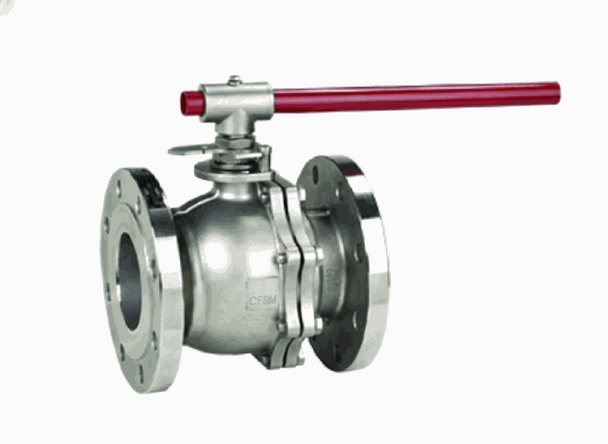

150# 316 Stainless Steel Full-Port RTFE Flanged Ball Valve — Model 6156

Heavy-duty industrial flanged ball valve engineered for reliable shutoff and corrosion resistance in demanding process and fluid control systems. Constructed with a 316 stainless steel body, 316 stainless trim, RTFE seats, and raised face flanged (RF) ANSI Class 150 connections.

Key Features & Specifications

  • Model: Allied 6156 Series Flanged Ball Valve
  • Pressure Class: ANSI Class 150#
  • Body Material: 316 Stainless Steel
  • Trim Material: 316 Stainless Steel (ball & stem)
  • Seat Material: Reinforced PTFE (RTFE)
  • Port Type: Full-Port for maximum flow
  • End Connection: Raised Face Flanges (RF) per ANSI B16.5
  • Design Standards: ASME B16.34, API 598 (pressure test)
  • Mounting Pad: ISO 5211 compatible
  • Operation: Locking lever (manual) or optional actuation
