Dixon
8HTBF8-SS - HT-Series Flushface Female Threaded Coupler
(No reviews yet)
Write a Review
- SKU:
- 8HTBF8-SS
- Availability:
- Usually Ships Within 24 Hours
- Weight:
- 2.67 LBS

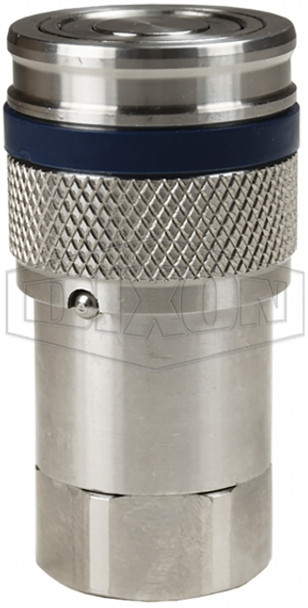

*Images are for visual reference only.
Description
Details
Available Options
- Contact Dixon for all available option adders
- Standard seal options include: FKM, EPDM, FDA FKM, Mil-Nitrile, Fuel Nitrile and Silicone
- Kalrez® seal options include: 4079, 6375 and 7075
- Oxy-clean treatment is available
Compatibility & Interchange Data
- Interchangeable to ISO16028
- Conforms to ISO16028 interchange standard interchangeable with Eaton/Hansen FF, Parker FEM, Snap-tite 74, Faster FFH/2FFN/2FFI, Stucchi A/FIRG and Holmbury HQ/A/FIMC
Construction
- Machined components are manufactured using solid bar stock
- Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
- Steel componentry is plated using ROHS compliant zinc nickel for corrosion resistance.
- Steel coupler sleeves are hardened to resist deformation and maximize service life.
- Couplers have polyurethane valve stem O-Ring, with a temperature range of -65° to +212°F
- Ancillary coupler seals are Nitrile (Nitrile Rubber), with a temperature range of -40°F to +250°F
- PTFE or TPC-ET Anti-Extrusion ring protects main coupling valve seal from dynamic impulse pressure damage.
Features
- High flow performance, compact profile
- Easily rebuildable!
- DORS (dual opposing retention spheres) retention system prevents valve stem ejection during surge flow and pressure spike conditions.
Specifications
Rated pressure for connected 316 Stainless Steel Coupler and 316 Stainless Steel Plug: 2,920 PSI (201 bar) Maximum Working and 14,600 PSI (1,007 bar) burst
