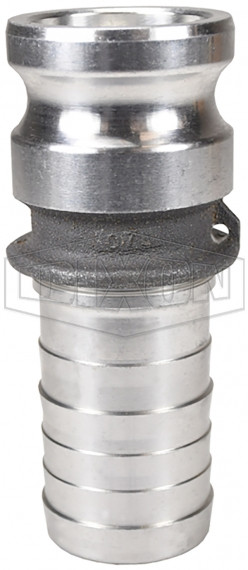

801-E-AL - Dixon Cam & Groove Type E Adapter x Hose Shank

Designed for use with liquids, consult Dixon for specific recommendations

Precision machined to rigid tolerances

• To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
• Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

• Under no circumstances should cam and groove couplings be used for compressed air or steam service!
• Pressure rating is based on the seal of the mating part
• Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
• Dixon and Boss-Lock cam and groove couplings do not interchange in the 8" size.

No standard exists for the 8" fittings, and generally does not interchange with other manufacturers.
