Nibco
Class 150 Bronze Check Valves Solder
- SKU:
- S-433
- Availability:
- Usually Ships Within 24 Hours
- Weight:
- 0.00 LBS
*Images are for visual reference only.
Description
Class 150 Bronze Check Valves Solder

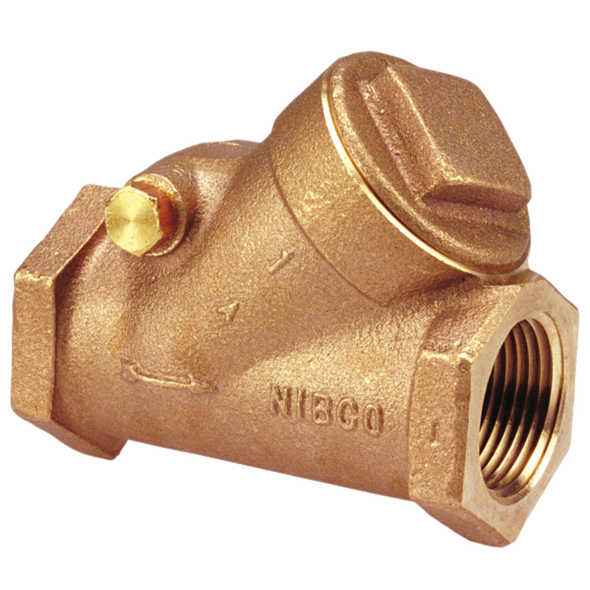

The NIBCO® bronze horizontal swing check valve has a Y-pattern design with renewable seat and disc. The swing check valve prevents backflow by automatically closing when fluid reverses direction. It features a screw-in bonnet for accessibility to repair or replace parts. The check valve is recommended for commercial and industrial steam, water, oil and gas services.
- Horizontal Swing
- Solder Ends
- Regrinding Type
- Renewable Seat and Disc
- Y-Pattern
- 150 PSI/10.3 bar saturated steam to 366º F/185º C
- 300 PSI/20.7 bar non-shock cold working pressure
- Spec Sheet PDF
- Bronze & Iron Valves Catalog PDF
- IBBM Globe Valves IOM Manual PDF
- Pressure Rated Metal Valves Warranty PDF
