Dixon

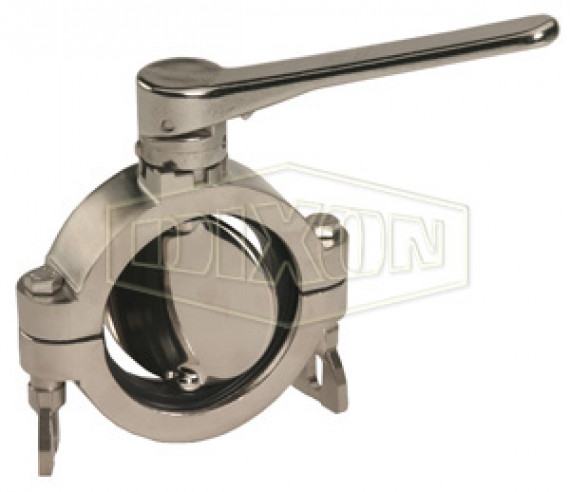

B5102S400-A - B5102-Series Butterfly Valve Clamp End
(No reviews yet)
Write a Review
- SKU:
- B5102S400-A
- Availability:
- Usually Ships Within 24 Hours
- Weight:
- 4.71 LBS
*Images are for visual reference only.
Description
Details
Available Options
- Various automatic operations available
- Can be modified for lockout / tagout
Construction
- All wetted surfaces are sanitary finish 316L stainless steel
- PTFE valve disc bushings reduce friction and increase cycle life
- 3-position reversible handle
Features
- All sizes use only 3/4" of line space
- The grooved clamp housing connects directly to the corresponding sanitary clamp size
- 100% tested / 100% inspected
- Field serviceable (no special tools required)
Note
Pressure rating (PSI), Flow Coefficient (CV), Assembly Torque (in. lbs.) and Break Torque (in. lbs.) information supplied is based on water media at 68°F
Specifications
- Break torque: 495 in. lbs.
- Assembly torque: 43.2 in. lbs.
- Flow coefficient: 800 CV
