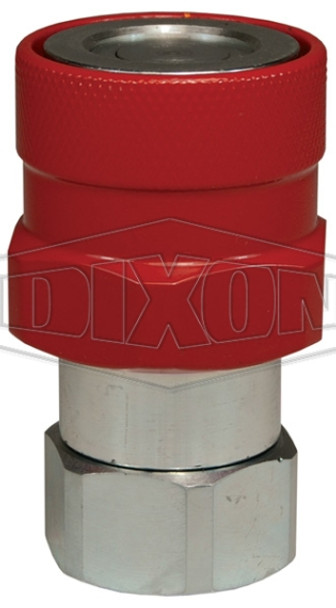

3VEPF4-BOP - VEP-BOP Series Blowout Preventer Female Threaded Coupler

Designed specifically for blow-out preventer systems on drilling rigs

• Stucchi VEP/VEP-HD Series
• DNP FSI-BOP Series

• Machined components are manufactured using solid steel bar stock
• Stainless steel retaining rings and springs maximize corrosion resistance and extend service life.
• Steel components are plated using ROHS Compliant Zinc Nickel
• Red powder coated components and external O-rings for easy BOP service identification
• Blow-out Preventer (BOP) coupling critical seals are severe service FKM
• PTFE Anti-Extrusion ring protects main coupling valve seal from dynamic impulse pressure damage

• BOP couplings have been fire tested and Lloyd's certified to 700°C (1300°F) in accordance with API 16D. Certificate available upon request.
• Maximum Impulse Pressure : 8000 PSI (55 MPa)
• Burst Pressure Connected: 22000 PSI (152 MPa)
• Burst Pressure Coupler: 18000 PSI (124 MPa)
• Maximum Pressure Connect & Disconnect : 4500 PSI (31 MPa)
• Lloyd's Test Pressure: 5,000 PSI
