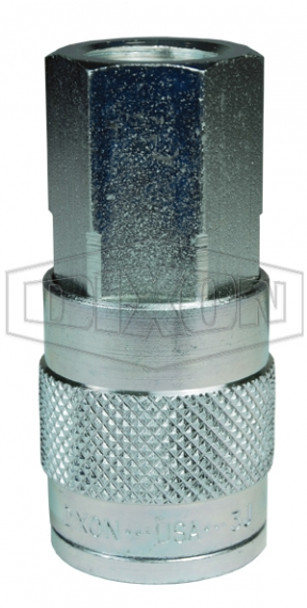

3JF3 - J-Series Automotive Pneumatic Female Threaded Coupler

• Truflate Automotive Interchange
• Parker 10 Series, Rectus 55KM and Tomco A2100/PT400

• Machined components are manufactured using solid bar stock.
• Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
• Nitrile (Nitrile Rubber) seals are standard
• Steel componentry is plated using ROHS Compliant Trivalent Chrome.
• Steel sleeve and steel tubular valve

It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.

Rated pressure for connected Steel Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 18,000 PSI (1,241 bar) Burst
