Dixon

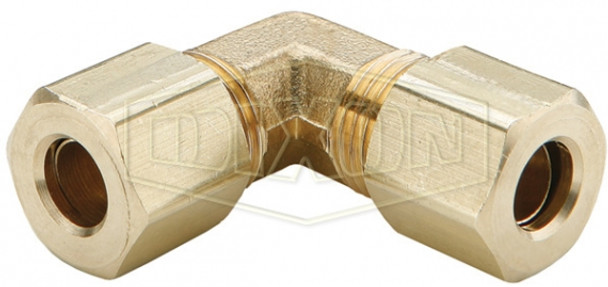

165C-10 - Compression 90° Union Elbow
- SKU:
- 165C-10
- Availability:
- Usually Ships Within 24 Hours
- Weight:
- 0.26 LBS
*Images are for visual reference only.
Description
Details
Applications
- Use with copper, aluminum and thermoplastic tubing.
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved.
Installation
- No flaring, soldering or other preparation of tubing necessary to assemble
- Slide nut, then sleeve onto tubing. The thread end of the nut must face out.
- Insert tube into the fitting. Be sure the tube is bottomed on the fitting shoulder.
- Assemble nut to body, and tighten hand-tight. Then follow the number of appropriate wrench turns for the given size.
Note
- Temperature and type of tubing used are important factors in working pressure ranges. Pressure rating given at 73°F (23°C). For thermoplastic tubing, see manufacturers recommendation for pressure range.
- Temperature ranges are given for use with soft metal tubing. For thermoplastic tubing, see manufacturers recommendation for tubing temperature range.
Safety Notes
- Not recommended for steel tubing
- Not recommended for applications using gaseous media.
Specifications
- Underwriter's Laboratories listed for flammable liquid
- SAE J-512
- ASA
- Reference SAE 060201 BA
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
