*Images are for visual reference only.
Description

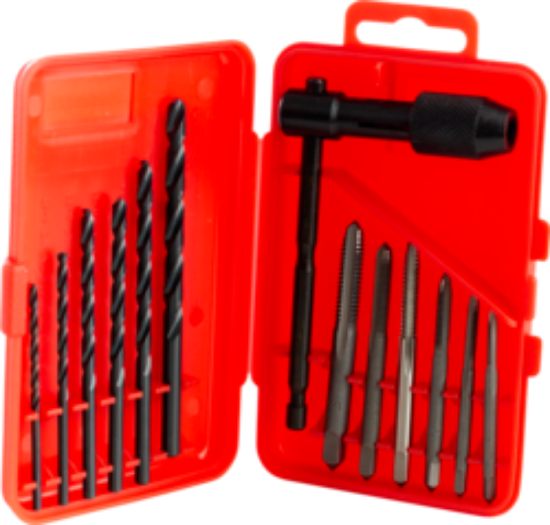

Tap Bit - 96042
13 Piece Carbon Steel Taps and Drill Set, Carbon Plug Taps 4-40, 6-32, 8-32, 10-24, 10-32 and 1/4"-20, High speed Drills #43, #36, #29, #25, #21 & #7, T-Handled Wrench
| Brand Name | Minerallac |
| Sub Brand | ITM |
| Number of Flutes | 3 |
| Finish | Bright |
| Type | 13 Piece Tap & Drill Bit Set |
| Special Features | 6 Carbon Plug Taps: 4-40, 6-32, 8-32, 10-24, 10-32 & 1/4"-20; 6 High Speed Twist Drills: #43, #36, #29, #25, #21 & #7; 1 T-Handled Wrench |
| Application | 6 Carbon Plug Taps: 4-40, 6-32, 8-32, 10-24, 10-32 & 1/4"-20 |
| Size | 4-40, 6-32, 8-32, 10-24, 10-32 & 1/4"-20 |
| Length | #43: 2-1/4", #36: 2-1/2", #29: 2-7/8", #25: 3", #21: 3-1/4" & #7: 3-5/8"; 4-40: 2", 6-32: 2", 8-32: 2-1/4", 10-24: 2-1/2", 10-32: 2-5/8" & 1/4"-20: 2-5/8" |
| Thread Length | 4-40: 7/8", 6-32: 3/4", 8-32: 1", 10-24: 1", 10-32: 1-1/8" & 1/4"-20: 1-1/8" |
| Thread per Inch | 4-40, 6-32, 8-32, 10-24, 10-32 & 1/4"-20 |
| Thread Type | National Coarse |
| Point Type | Taper |
| Material | Heat Treated Carbon Steel |
Spec Sheet PDF
