Dixon

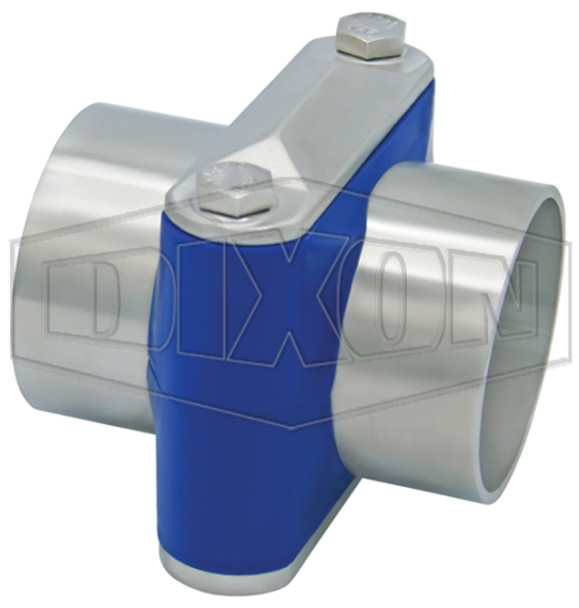

B24V-WP-G250 - Weld Plate Pipe Block Hanger
- SKU:
- B24V-WP-G250
- Availability:
- Usually Ships Within 24 Hours
- Weight:
- 0.64 LBS
*Images are for visual reference only.
Description
Details
Applications
- Clean rooms and mechanical areas; not limited to: biotech, pharmaceutical, food processing.
- Low flow & low pressure systems with moderate vibration: WFI, SIP, CIP, process, utility & instrument lines
Construction
- One piece silicone insert - 80 durometer
- Hardware: 304 & 316 stainless steel
Features
- Insulation envelope: reduced OD allows hanger to be buried under the insulation jacket
- There are no exposed threads or openings in hardware plates
- All plates are polished, bolts are cleaned and nuts are lubricated with FDA approved product
- Hanger threads match MSS 69 rod OD requirements
