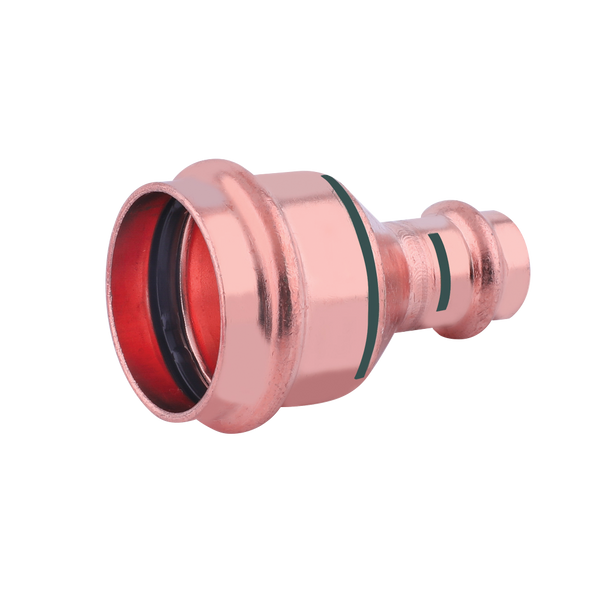

SCI® Press - Copper Reducing Coupling
SCI® Press - Copper Reducing Coupling provides a straight Press x Press connection for transitioning between two different nominal sizes of compatible copper tubing within an SCI Press Copper piping system.
Identified by SCI as Fig. SP604R, this fitting is cataloged as SP604R CU P X P RED COUPLING. The reducing configuration combines the function of a straight coupling and a size transition in a single press fitting.
Product Highlights
- SCI® Press Copper Reducing Coupling
- SCI Fig. SP604R
- SCI catalog configuration: SP604R CU P X P RED COUPLING
- Press x Press reducing configuration
- Connects two different nominal copper tube sizes
- Provides an in-line size transition within a straight piping run
- Copper alloy construction for the SCI Press Copper system
- Grade “E” peroxide-cured EPDM sealing elements
- EPDM operating temperature range of -20°F to 248°F
- Designed for compatible ASTM B88 copper tubing
- Compatible with common pressing tools and jaws
- IAPMO UPC PS-117, NSF/ANSI 61, and NSF/ANSI 372 approvals/certifications
- Mechanical press connections eliminate conventional soldering or brazing at the joints
Technical Specifications
| Product Type | Copper Press Reducing Coupling |
|---|---|
| Brand | SCI® Press |
| Figure | SP604R |
| SCI Configuration | SP604R CU P X P RED COUPLING |
| Connection | Press x Press |
| Configuration | Straight Reducing Coupling |
| Function | Transitions between two different nominal sizes of compatible copper tubing |
| Body Material | Copper Alloy conforming to UNS C12200 |
| Sealing Element | Grade “E” EPDM, Peroxide Cured |
| EPDM Temperature Range | -20°F to 248°F |
| Copper Tubing Standard | ASTM B88 |
| Water Systems | 300 PSI; 600 PSI Test Pressure |
| Approvals & Certifications | IAPMO UPC PS-117, NSF/ANSI 61, NSF/ANSI 372 |
Construction Details
The SCI® Press Copper Reducing Coupling is identified as Fig. SP604R and uses a Press x Press reducing configuration for joining compatible copper tubing of two different nominal sizes.
SCI catalogs the fitting as SP604R CU P X P RED COUPLING. Each side incorporates an SCI Press connection sized for its corresponding copper tube, creating an integrated transition between the two tube sizes.
The fitting is manufactured as part of the SCI Press Copper system using copper alloy conforming to UNS C12200. Applicable press connections incorporate Grade “E” peroxide-cured EPDM sealing elements.
Important: SCI states that fluids containing hydrocarbon-based oils are not compatible with the EPDM seal and that SCI Press Copper EPDM fittings are not for use in petroleum applications.
Press x Press Reducing Configuration
Larger Press Connection
One side of the SP604R accepts the larger compatible copper tube size using the SCI Press mechanical connection system.
Smaller Press Connection
The opposite side accepts the corresponding smaller copper tube size, completing the straight in-line size transition without requiring a separate reducer and coupling.
Integrated Copper Tube Size Transition
The SP604R combines a straight coupling and reducing transition into one fitting. This allows a copper piping run to change nominal tube size while maintaining Press connections on both sides.
The fitting is useful where the piping layout needs to transition from a larger copper tube to a smaller copper tube without introducing a threaded adapter or another connection type.
Because both ends use SCI Press technology, the transition remains within the mechanical copper press system.
SP604R Connection Function
Connect
Provides an SCI Press connection for compatible copper tubing at both ends of the fitting.
Reduce
Transitions between different nominal copper tube sizes within the fitting body.
Continue
Maintains a straight-through piping direction while changing the nominal tube size.
Reducing Coupling vs. Standard Coupling
SP604R Reducing Coupling
The SP604R connects two different nominal copper tube sizes, providing an integrated reduction within a straight piping run.
SP604 Coupling with Stop
The SP604 is SCI's standard Press x Press coupling for joining compatible copper tubing of the same nominal size.
Reducing Coupling vs. FTG x Press Reducing Adapter Coupling
SP604R Reducing Coupling
The SP604R provides Press x Press connections on both sides, allowing two different copper tube sizes to be connected directly.
SP609R Reducing Adapter Coupling
The SP609R uses SCI's Male Street x Press reducing adapter configuration. Select the fitting configuration that matches the required connection types in the piping layout.
SCI® Press Copper Connection
SCI Press Technology provides a mechanical copper piping connection that eliminates the need for conventional soldering or brazing at the press joints.
SCI Press Copper Fittings are intended for use with ASTM B88 Types K, L, and M hard copper tubing and applicable soft copper tubing within the SCI Press Copper system.
The SCI Press Copper system is compatible with common pressing tools and jaws. SCI also states that fittings may be installed above and below ground where permitted by applicable local building codes.
Copper Tube Preparation & Pressing
Both copper tube ends should be properly prepared before installation. Follow the supplied SCI Press installation instructions for cutting, deburring, cleaning, inspection, insertion marking, fitting assembly, and pressing.
Because the SP604R connects two different tube sizes, verify the required size on each side of the fitting before installation and use the appropriate compatible pressing jaw for each connection.
After both connections are visually confirmed, the completed piping system should be pressure tested in accordance with applicable local code requirements.
EPDM Sealing System
The SCI Press Copper system uses peroxide-cured Grade “E” EPDM sealing elements. SCI lists an operating temperature range of -20°F to 248°F for the EPDM sealing material.
The EPDM seal is recommended by SCI for water service, diluted acids, alkaline solutions, oil-free air, and many other compatible chemical services.
Fluids containing hydrocarbon-based oils are not compatible with the EPDM seal. Do not use SCI Press Copper EPDM fittings in petroleum applications.
Selected Service Ratings
| Water Systems | 300 PSI; Test Pressure 600 PSI; -20°F to 248°F |
|---|---|
| Residential Steam | 5 PSI Maximum; 227°F |
| Compressed Air | 200 PSI Maximum; 140°F Maximum; oil concentration ≤25 mg/m³ |
| Nitrogen | 200 PSI Maximum; 140°F Maximum |
| Carbon Dioxide | 200 PSI Maximum; 140°F Maximum |
| Carbon Monoxide | 200 PSI Maximum; 140°F Maximum |
| Argon | 200 PSI Maximum; 140°F Maximum |
| Non-Medical Oxygen | 140 PSI Maximum; 140°F Maximum; keep free of oil and grease |
| Hydrogen | 125 PSI Maximum; 140°F Maximum |
| Vacuum - Differential Pressure | 29.2" Hg Maximum; 160°F Maximum |
Approvals & Certifications
IAPMO UPC PS-117
SCI identifies the SCI Press Copper fitting system with IAPMO UPC PS-117 approval.
NSF/ANSI 61
The SCI Press Copper fitting system carries NSF/ANSI 61 certification for applicable drinking-water applications.
NSF/ANSI 372
SCI also identifies NSF/ANSI 372 certification for its Press Copper fitting system.
Typical Applications
Plumbing & Water Systems
- Potable water piping systems
- Residential plumbing
- Commercial plumbing
- Copper water distribution
- Different-size copper tube connections
Mechanical & Retrofit Piping
- Mechanical copper piping
- Copper piping size transitions
- Equipment piping connections
- Compatible industrial copper systems
- Repair and retrofit installations
Installation & Selection Considerations
- Confirm both required copper tube sizes before ordering the SP604R Reducing Coupling.
- Verify that the copper tubing complies with ASTM B88 and is compatible with the SCI Press Copper system.
- Cut, deburr, clean, inspect, and mark both copper tube ends according to the supplied SCI Press installation instructions.
- Use the correct compatible pressing tool and jaw for the connection size on each side of the reducing coupling.
- Verify fluid, pressure, temperature, and EPDM compatibility before placing the completed system into service.
Use the supplied SCI Press documents to confirm the SP604R Press x Press reducing configuration, copper tubing compatibility, EPDM service requirements, system ratings, pressing procedures, and installation requirements.
SCI Press Copper Fittings Submittal PDF SCI Press Copper Installation Instructions PDF SCI Copper Press Product Flyer PDFNeed Help Selecting an SCI® Press Copper Reducing Coupling?
Our fitting specialists can help review your SP604R inlet combination, copper tubing, press-tool compatibility, service conditions, EPDM compatibility, and installation requirements before you order.
Frequently Asked Questions
What is the SCI figure number for the Copper Reducing Coupling?
SCI identifies the Copper Reducing Coupling as Fig. SP604R.
What is the SCI catalog configuration for the SP604R?
SCI catalogs the fitting as SP604R CU P X P RED COUPLING.
What connections does the SP604R use?
The SP604R uses Press x Press connections for joining two different nominal sizes of compatible copper tubing.
What does a Copper Reducing Coupling do?
It provides a straight in-line transition between two different nominal copper tube sizes while keeping SCI Press connections on both sides.
How is the SP604R different from the SP604 Coupling with Stop?
The SP604R connects different nominal copper tube sizes. The SP604 standard coupling connects compatible copper tubing of the same nominal size.
How is the SP604R different from the SP609R?
The SP604R is a Press x Press Reducing Coupling. The SP609R is SCI's FTG x Press Reducing Adapter Coupling and uses a Male Street x Press configuration.
Does the SP604R require soldering or brazing?
No. SCI Press Technology uses mechanical press connections that eliminate conventional soldering or brazing at the press joints.
What copper tubing is compatible with SCI Press Copper fittings?
SCI specifies ASTM B88 Types K, L, and M hard copper tubing and applicable soft copper tubing for its Press Copper system.
What sealing material does the SCI Press Copper system use?
SCI specifies peroxide-cured Grade “E” EPDM sealing elements with an operating temperature range of -20°F to 248°F.
Can SCI Press Copper EPDM fittings be used in petroleum applications?
No. SCI states that fluids containing hydrocarbon-based oils are not compatible with the EPDM seal and that these fittings are not for use in petroleum applications.
What certifications are identified for the SCI Press Copper system?
SCI identifies IAPMO UPC PS-117, NSF/ANSI 61, and NSF/ANSI 372 approvals and certifications for the system.
Important Ordering & Installation Notes
- This listing is for the SCI® Press - Copper Reducing Coupling, Fig. SP604R.
- The SP604R uses a Press x Press configuration for connecting different nominal copper tube sizes.
- Confirm both required connection sizes before ordering.
- Follow the supplied SCI Press instructions for tube preparation, insertion marking, pressing, and system testing.
- Verify EPDM service compatibility before placing the completed piping system into service.
