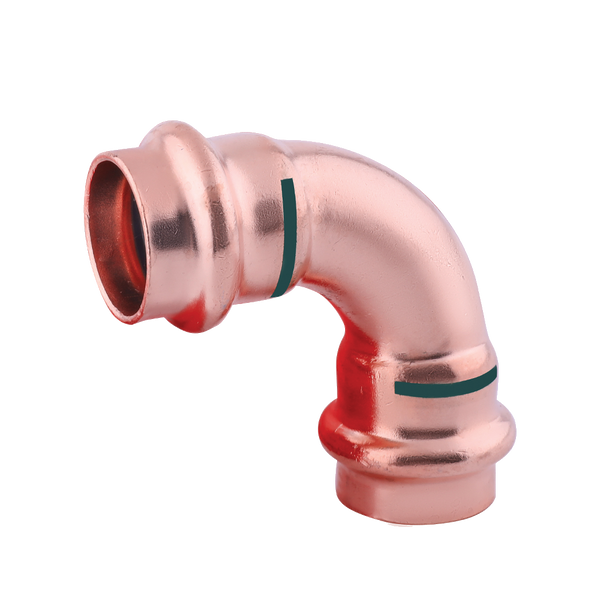

SCI® Press - Copper 90° Elbow
SCI® Press - Copper 90° Elbow provides a reliable press-to-press connection for creating a 90-degree change in direction in compatible copper tubing systems without conventional soldering or brazing.
Identified by SCI as Fig. SP690, this elbow is manufactured from copper alloy conforming to UNS C12200 and incorporates a peroxide-cured Grade “E” EPDM sealing element. SCI Press Copper Fittings are designed for ASTM B88 copper tubing and are compatible with common pressing tools and jaws.
Product Highlights
- SCI® Press Copper 90° Elbow
- SCI Fig. SP690
- Press x Press connection
- Creates a 90-degree change in piping direction
- Copper alloy body conforming to UNS C12200
- Grade “E” EPDM sealing element
- EPDM operating temperature range of -20°F to 248°F
- Designed for ASTM B88 Types K, L, and M hard copper tubing
- Compatible with ASTM B88 soft copper tubing in applicable sizes
- IAPMO UPC PS-117, NSF/ANSI 61, and NSF/ANSI 372 approvals/certifications
- Compatible with common pressing tools and jaws
- Eliminates the need for conventional soldering or brazing
Technical Specifications
| Product Type | Copper Press 90° Elbow |
|---|---|
| Brand | SCI® Press |
| Figure | SP690 |
| Connection | Press x Press |
| Direction Change | 90 Degrees |
| Body Material | Copper Alloy |
| Body Material Specification | UNS C12200 |
| O-Ring | Grade “E” EPDM, Peroxide Cured |
| EPDM Temperature Range | -20°F to 248°F |
| Hard Copper Tubing Compatibility | ASTM B88 Types K, L & M, 1/2" through 4" |
| Soft Copper Tubing Compatibility | ASTM B88, 1/2" through 1-1/4" |
| Water Systems | 300 PSI; 600 PSI Test Pressure |
| Approvals & Certifications | IAPMO UPC PS-117, NSF/ANSI 61, NSF/ANSI 372 |
Construction Details
The SCI® Press Copper 90° Elbow is manufactured with a copper alloy body conforming to UNS C12200. The press connection incorporates a Grade “E” EPDM sealing element with silicone grease.
SCI specifies the peroxide-cured EPDM seal for an operating temperature range of -20°F to 248°F. The EPDM material is recommended for water service, diluted acids, alkaline solutions, oil-free air, and many other compatible chemical services.
For sizes 2-1/2" through 4", the SCI Press Copper fitting system incorporates a Grade 304 stainless steel fastening grip ring and a nylon spacer as part of the larger-diameter press connection design.
Important: SCI specifically states that the EPDM seal is not for use in petroleum applications.
90° Press-to-Press Configuration
90-Degree Direction Change
The SP690 elbow redirects the copper tubing run by 90 degrees, providing a compact right-angle change in direction for compatible plumbing and mechanical piping systems.
Press x Press Ends
Both ends use SCI Press connections. Compatible copper tubing is inserted into each fitting end and the connection is completed using an appropriate pressing tool and jaw.
SCI® Press Copper Connection
SCI Press Technology provides a mechanical copper piping connection that eliminates the need for conventional soldering or brazing. The system is compatible with common pressing tools and jaws.
SCI Press Copper Fittings are intended for use with ASTM B88 Types K, L, and M hard copper tubing from 1/2" through 4" and soft copper tubing from 1/2" through 1-1/4".
Fittings are approved for above- and below-ground installations where permitted by applicable local building codes.
ASTM B88 Copper Tubing Compatibility
Hard Copper Tubing
SCI Press Copper Fittings are intended for use with ASTM B88 Types K, L, and M hard copper tubing in sizes from 1/2" through 4".
Soft Copper Tubing
SCI also specifies compatibility with ASTM B88 soft copper tubing in sizes from 1/2" through 1-1/4".
EPDM Sealing Element
The SCI Press Copper system uses a peroxide-cured Grade “E” EPDM O-ring. SCI lists an operating temperature range of -20°F to 248°F for this sealing material.
The EPDM seal is recommended by SCI for water service, diluted acids, alkaline solutions, oil-free air, and many other compatible chemical services.
Fluids containing hydrocarbon-based oils are not compatible with the EPDM seal. Do not use these fittings in petroleum applications.
Selected Service Ratings
| Water Systems | 300 PSI; Test Pressure 600 PSI; -20°F to 248°F |
|---|---|
| Residential Steam | 5 PSI Maximum; 227°F |
| Compressed Air | 200 PSI Maximum; 140°F Maximum; oil concentration ≤25 mg/m³ |
| Nitrogen | 200 PSI Maximum; 140°F Maximum |
| Carbon Dioxide | 200 PSI Maximum; 140°F Maximum |
| Argon | 200 PSI Maximum; 140°F Maximum |
| Non-Medical Oxygen | 140 PSI Maximum; 140°F Maximum; keep free of oil and grease |
| Hydrogen | 125 PSI Maximum; 140°F Maximum |
| Vacuum - Differential Pressure | 29.2" Hg Maximum; 160°F Maximum |
Approvals & Certifications
IAPMO UPC PS-117
SCI identifies its Press Copper fitting system with IAPMO UPC PS-117 approval.
NSF/ANSI 61
The SCI Press Copper fitting system carries NSF/ANSI 61 certification for applicable drinking-water applications.
NSF/ANSI 372
SCI also identifies NSF/ANSI 372 certification for its Press Copper fitting system.
Typical Applications
Plumbing & Water Systems
- Potable water systems
- Residential plumbing
- Commercial plumbing
- Mechanical copper systems
- Compatible ASTM B88 copper tubing
Commercial & Industrial Systems
- Commercial mechanical piping
- Industrial copper piping
- Oil-free compressed air
- Compatible gas services
- Vacuum applications within published limits
Installation & Selection Considerations
- Confirm that the copper tubing complies with ASTM B88 and is compatible with the selected SCI Press fitting size.
- Inspect the fitting, sealing element, and tubing before assembly and follow the supplied SCI Press installation instructions.
- Use a compatible pressing tool and jaw and complete the press connection according to SCI installation requirements.
- After visually confirming each connection, pressure-test the completed system in accordance with applicable local code requirements.
- Verify EPDM compatibility with the intended fluid and do not use the fitting in petroleum applications.
Use the supplied SCI Press documents to confirm copper tubing compatibility, EPDM service requirements, pressure and temperature ratings, approvals, pressing procedures, and installation requirements before assembling your copper piping system.
