Description
Schedule 80 PVC 2000 EPDM (SOC x MPT)

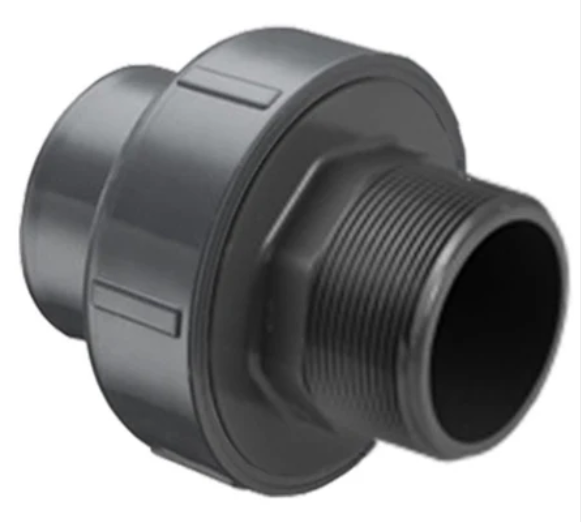

Schedule 80 PVC 2000 EPDM (SOC x MPT) provides a removable connection between compatible PVC pipe and a female-threaded component using socket and male pipe-threaded connections. The union-style configuration allows connected piping sections to be separated at the fitting without requiring adjoining pipe to be cut.
The SOC x MPT configuration combines socket and male-threaded connection interfaces with EPDM sealing material. Selection should account for nominal size, Schedule 80 PVC compatibility, adjoining components, connection orientation, EPDM compatibility, joining requirements, piping alignment, and available service clearance.
Product Highlights
- PVC construction
- EPDM sealing material
- Schedule 80 design
- 2000-series configuration
- Socket x MPT connections
- Provides a removable piping connection
- Combines socket and male-threaded interfaces
- Allows connected piping sections to be separated at the fitting
Technical Specifications
| Product Type | 2000-Series Union |
|---|---|
| Material | PVC |
| Schedule | Schedule 80 |
| Connection | Socket x Male Pipe Thread (SOC x MPT) |
| Connection Count | Two |
| Fitting Configuration | Union |
| Socket Interface | Compatible PVC Pipe |
| Threaded Interface | Compatible Female Pipe Thread |
| Sealing Material | EPDM |
| Connection Style | Socket x Male Threaded |
| Joining Method | Compatible PVC Solvent-Cement Joining x Threaded Connection |
| Primary Function | Provide a Removable Connection Between Compatible PVC Pipe and Female-Threaded Components |
Union Design
The union configuration provides a connection point that can be separated when access to adjoining piping or equipment is required. This can simplify servicing or piping changes because the connection can be opened without cutting the connected pipe.
The fitting should be positioned where there is adequate room for assembly, disassembly, and future access. Adjoining piping should be aligned and supported so the union is not relied upon to correct offsets or carry unnecessary mechanical loads.
Socket & MPT Connections
The socket connection receives appropriately sized compatible PVC pipe, while the MPT connection mates with a compatible female pipe thread. Each side requires the appropriate assembly method for its connection style while the fitting provides the removable connection point.
The socket surfaces should be prepared for the applicable PVC solvent-cement joining procedure, while the male-threaded connection should be started carefully and kept properly aligned. Compatible joining and thread-sealing materials should be selected for the adjoining components and intended installation.
Schedule 80 PVC Integration
The Schedule 80 PVC construction allows the fitting to integrate into compatible Schedule 80 PVC piping arrangements requiring SOC x MPT connections. Matching the nominal size and both connection interfaces to the adjoining components helps maintain the intended piping configuration.
Application suitability should be evaluated using the requirements of the complete piping system rather than the schedule designation alone. Intended service conditions, adjoining materials, connection compatibility, sealing materials, joining materials, piping support, and applicable practices should all be considered during fitting selection.
EPDM Sealing Configuration
The EPDM sealing material is part of the fitting's sealing configuration and should be evaluated for compatibility with the intended service. Seal-material selection can depend on the conveyed media, temperature, operating conditions, and other application requirements.
The sealing surfaces and EPDM seal should be inspected before assembly and kept free from damage or contamination. The fitting should be assembled evenly so the sealing components remain correctly positioned during installation and future servicing.
Installation & Selection Considerations
- Confirm the nominal size.
- Verify the SOC x MPT arrangement.
- Check Schedule 80 PVC compatibility.
- Confirm EPDM suitability for the application.
- Allow adequate clearance for future servicing.
Our PVC fitting specialists can help review your nominal size, Schedule 80 requirements, SOC x MPT configuration, EPDM sealing material, adjoining PVC pipe, mating female-threaded component, joining requirements, fitting orientation, piping layout, and available service clearance before you order.
Frequently Asked Questions
What is a Schedule 80 PVC 2000 EPDM fitting used for?
It provides a removable connection between compatible PVC pipe and a compatible female-threaded component using SOC x MPT connections.
What does SOC mean?
SOC identifies a socket-style connection designed to receive appropriately sized compatible PVC pipe.
What does MPT mean?
MPT means Male Pipe Thread and identifies an externally threaded connection designed to mate with a compatible female pipe thread.
What does EPDM identify?
EPDM identifies the specified sealing material used in the fitting and should be checked for compatibility with the intended application.
Why use a union-style connection?
A union-style connection can be separated for access or servicing without requiring the adjoining pipe to be cut.
What should I confirm before ordering?
Confirm the nominal size, SOC x MPT arrangement, Schedule 80 PVC compatibility, EPDM sealing requirements, and adjoining components.
Important Ordering & Installation Notes
- Inspect the fitting before use.
- Confirm the nominal connection size.
- Verify EPDM compatibility for the application.
- Align adjoining piping before final assembly.
- Allow clearance for future servicing.
