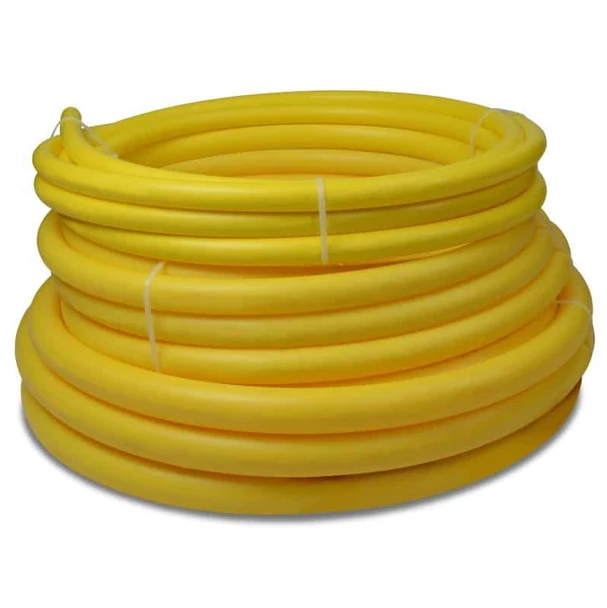

Pro-Flex Pro-Poly 3/4" IPS Polyethylene Gas Pipe
- Availability:
- Usually Ships in 5-7 Business Days
- Weight:
- 0.00 LBS
Description
Pro-Flex Pro-Poly 3/4" IPS Polyethylene Gas Pipe
Pro-Flex Pro-Poly 3/4" IPS Polyethylene Gas Pipe is part of the PEIPS/PECTS Series designed for underground Natural Gas and LP (Propane) gas piping systems. Manufactured from PE2708 medium-density polyethylene, the pipe is engineered for direct-burial applications.
This listing provides 3/4" IPS pipe in 50', 100', 150', 250', 300', and 500' lengths. The manufacturer's dimensional data identifies the 3/4" IPS pipe as SDR 11 with a 1.050" average outside diameter and 0.860" approximate inside diameter.
Product Highlights
- Pro-Flex Pro-Poly polyethylene gas piping
- PEIPS/PECTS Series
- For underground Natural Gas and LP (Propane) gas piping systems
- Engineered for direct-burial applications
- PE2708 medium-density polyethylene
- 3/4" IPS pipe size
- SDR 11
- 1.050" average outside diameter
- 0.860" approximate inside diameter
- 80 PSIG maximum working pressure
- 120 PSIG maximum testing pressure
- -20°F to 140°F temperature rating
- ASTM D2513
- Multiple coil lengths available from 50' through 500'
Technical Specifications
| Manufacturer | Pro-Flex |
|---|---|
| Product Line | Pro-Poly |
| Series | PEIPS/PECTS |
| Product Type | Polyethylene Gas Pipe |
| Application | Underground Natural Gas and LP (Propane) Gas Piping Systems |
| Installation Type | Direct Burial |
| Material | PE2708 Medium-Density Polyethylene |
| Pipe Size | 3/4" IPS |
| SDR | 11 |
| Average Outside Diameter | 1.050" |
| Approximate Inside Diameter | 0.860" |
| Published Weight | 11.6 lb per 100' |
| Approved Gases | Natural Gas and LP (Propane) Gas |
| Maximum Working Pressure | 80 PSIG |
| Maximum Testing Pressure | 120 PSIG |
| Temperature Rating | -20°F to 140°F |
| Standard | ASTM D2513 |
| Available Lengths | 50', 100', 150', 250', 300', and 500' |
Available Lengths
50' Coil
- Manufacturer part number: PEIPS-3450
- Pipe size: 3/4" IPS
- Length: 50'
- SDR: 11
- Calculated pipe weight: approximately 5.80 lb
100' Coil
- Manufacturer part number: PEIPS-34100
- Pipe size: 3/4" IPS
- Length: 100'
- SDR: 11
- Calculated pipe weight: approximately 11.60 lb
150' Coil
- Manufacturer part number: PEIPS-34150
- Pipe size: 3/4" IPS
- Length: 150'
- SDR: 11
- Calculated pipe weight: approximately 17.40 lb
250' Coil
- Manufacturer part number: PEIPS-34250
- Pipe size: 3/4" IPS
- Length: 250'
- SDR: 11
- Calculated pipe weight: approximately 29.00 lb
300' Coil
- Manufacturer part number: PEIPS-34300
- Pipe size: 3/4" IPS
- Length: 300'
- SDR: 11
- Calculated pipe weight: approximately 34.80 lb
500' Coil
- Manufacturer part number: PEIPS-34500
- Pipe size: 3/4" IPS
- Length: 500'
- SDR: 11
- Calculated pipe weight: approximately 58.00 lb
Underground Gas Piping Applications
Pro-Flex specifies the Pro-Poly PEIPS/PECTS Series for use in underground Natural Gas and LP (Propane) gas piping systems. The polyethylene gas pipe is engineered for direct-burial applications.
Product installation must be completed in accordance with applicable local codes and the current Pro-Poly Installation Guide.
Joining & Installation
Pro-Flex states that the pipe may be joined using mechanical fittings, various types of fusion fittings, or stab fittings listed for use with ASTM D2513 pipe of the same diameter and SDR.
Installers must follow the installation instructions provided by the fitting manufacturer.
Pressure & Temperature Ratings
Working Pressure
Maximum working pressure: 80 PSIG.
Testing Pressure
Maximum testing pressure: 120 PSIG.
Temperature
Temperature rating: -20°F to 140°F.
Codes, Standards & Listings
- ASTM D2513
- NFPA 54
- NFPA 58
- ICC Codes including IFGC, IRC, IPC, and IMC
- UPC
Product Documents
Pro-Flex PEIPS/PECTS Polyethylene Gas Piping Spec Sheet
Review the Pro-Flex specification sheet for PEIPS and PECTS polyethylene gas pipe dimensional data, materials, pressure ratings, temperature ratings, applicable standards, and installation information.
Need Help Selecting Pro-Poly Gas Pipe?
Our industrial PVF specialists can help review your required pipe size, IPS or CTS sizing standard, SDR, coil length, and compatible Pro-Poly components before you order.
Frequently Asked Questions
What is Pro-Flex Pro-Poly gas pipe used for?
The PEIPS/PECTS Series is intended for underground Natural Gas and LP (Propane) gas piping systems and is engineered for direct-burial applications.
What material is the pipe made from?
Pro-Flex specifies PE2708 medium-density polyethylene.
What size is the pipe in this listing?
This listing is specifically for 3/4" IPS Pro-Flex Pro-Poly polyethylene gas pipe.
What is the SDR of the 3/4" IPS pipe?
The manufacturer specifies SDR 11 for the 3/4" IPS pipe.
What are the pipe dimensions?
The manufacturer specification sheet lists a 1.050" average outside diameter and 0.860" approximate inside diameter for the 3/4" IPS pipe.
What is the published pipe weight?
Pro-Flex lists the 3/4" IPS pipe at approximately 11.6 lb per 100'. Individual coil weights vary according to length.
Can this pipe be used with propane?
Yes. Pro-Flex lists Natural Gas and LP (Propane) Gas as approved gases for the PEIPS/PECTS Series.
What is the maximum working pressure?
The manufacturer specifies a maximum working pressure of 80 PSIG.
What is the maximum testing pressure?
The manufacturer specifies a maximum testing pressure of 120 PSIG.
What is the temperature rating?
The manufacturer specifies a temperature rating of -20°F to 140°F.
What lengths are available?
This listing includes 50', 100', 150', 250', 300', and 500' coil lengths.
How can the polyethylene pipe be joined?
Pro-Flex states that the pipe may be joined by mechanical fittings, various types of fusion fittings, or stab fittings listed for use with ASTM D2513 pipe of the same diameter and SDR. Follow the fitting manufacturer's installation instructions.
Important Ordering & Installation Notes
- This listing is specifically for 3/4" IPS polyethylene gas piping.
- Confirm IPS sizing is required before ordering.
- Confirm the required coil length before ordering.
- Confirm pipe diameter, SDR, and fitting compatibility.
- Installation must comply with applicable local codes and the Pro-Poly Installation Guide.
- Follow the fitting manufacturer's instructions when joining the pipe.
