Pro-Flex Pro-Poly 1/2" IPS Polyethylene Gas Pipe
- Availability:
- Usually Ships in 5-7 Business Days
- Weight:
- 0.00 LBS
Description

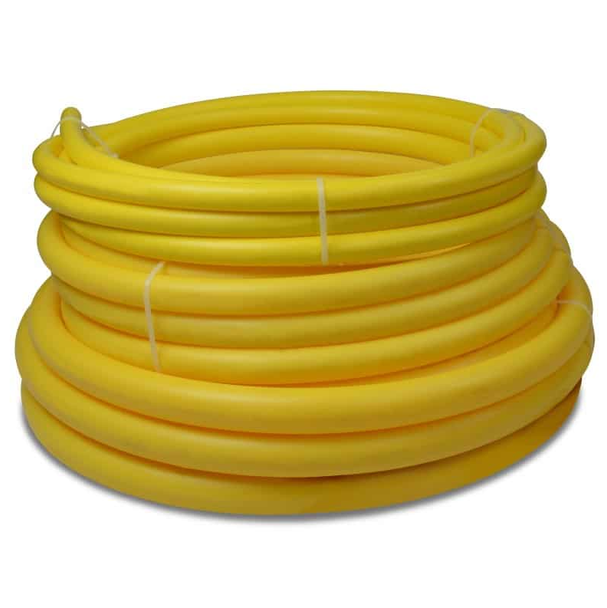

Pro-Flex Pro-Poly 1/2" IPS Polyethylene Gas Pipe
Pro-Flex Pro-Poly 1/2" IPS Underground Polyethylene Gas Pipe is engineered for direct-burial Natural Gas and LP (Propane) gas piping systems. Manufactured from PE2708 medium-density polyethylene, this 1/2" IPS gas pipe is available in 150', 300', and 500' coil lengths.
The 1/2" IPS pipe features an SDR of 11, 0.840" average outside diameter, 0.660" approximate inside diameter, and .090" wall thickness. Select the required coil length for your underground gas distribution installation.
Product Highlights
- Pro-Flex Pro-Poly underground polyethylene gas piping
- Engineered for direct-burial applications
- For Natural Gas and LP (Propane) gas piping systems
- PE2708 medium-density polyethylene construction
- 1/2" IPS sizing
- SDR 11
- .090" wall thickness
- 80 PSIG maximum working pressure
- 120 PSIG maximum testing pressure
- -20°F to 140°F temperature rating
- ASTM D2513
- Available in 150', 300', and 500' coil lengths
Technical Specifications
| Manufacturer | Pro-Flex |
|---|---|
| Product Line | Pro-Poly |
| Series | PEIPS/PECTS |
| Product Type | Underground Polyethylene Gas Pipe |
| Application | Underground Natural Gas and LP (Propane) Gas Piping Systems |
| Installation Type | Direct Burial |
| Material | PE2708 Medium-Density Polyethylene |
| Pipe Size | 1/2" IPS |
| SDR | 11 |
| Average Outside Diameter | 0.840" |
| Approximate Inside Diameter | 0.660" |
| Wall Thickness | .090" |
| Weight | 8.7 lb per 100' |
| Approved Gases | Natural Gas and LP (Propane) Gas |
| Maximum Working Pressure | 80 PSIG |
| Maximum Testing Pressure | 120 PSIG |
| Temperature Rating | -20°F to 140°F |
| Standard | ASTM D2513 |
| Available Lengths | 150', 300', and 500' |
Available Lengths
150' Coil
- Manufacturer part number: PEIPS-12150
- Pipe size: 1/2" IPS
- SDR: 11
- Length: 150'
- Calculated pipe weight: approximately 13.05 lb
300' Coil
- Manufacturer part number: PEIPS-12300
- Pipe size: 1/2" IPS
- SDR: 11
- Length: 300'
- Calculated pipe weight: approximately 26.10 lb
500' Coil
- Manufacturer part number: PEIPS-12500
- Pipe size: 1/2" IPS
- SDR: 11
- Length: 500'
- Calculated pipe weight: approximately 43.50 lb
Underground Gas Piping Applications
The Pro-Poly PEIPS/PECTS Series is intended for use in underground Natural Gas and LP (Propane) gas piping systems. Pro-Flex specifies the pipe for direct-burial applications.
Product installation must be performed in accordance with applicable local codes and the current Pro-Poly Installation Guide.
Joining & Installation
According to Pro-Flex, the pipe may be joined using mechanical fittings, various types of fusion fittings, or stab fittings listed for use with ASTM D2513 pipe of the same diameter and SDR.
Installers must follow the installation instructions supplied by the fitting manufacturer and all applicable local codes.
CTS vs. IPS Sizing
This listing is specifically for 1/2" IPS polyethylene gas piping. Pro-Flex manufactures both IPS and CTS polyethylene gas pipe, and these represent different dimensional systems.
Confirm the required pipe sizing system, diameter, SDR, and fitting compatibility before ordering.
Codes, Standards & Listings
- ASTM D2513
- NFPA 54
- NFPA 58
- ICC Codes including IFGC, IRC, IPC, and IMC
- UPC
Product Documents
Pro-Flex PEIPS/PECTS Polyethylene Gas Piping Spec Sheet
Review the manufacturer specification sheet for PEIPS and PECTS underground polyethylene gas pipe dimensional data, materials, pressure ratings, temperature ratings, applicable standards, and installation information.
Need Help Selecting Pro-Poly Gas Pipe?
Our industrial PVF specialists can help review your required pipe size, IPS or CTS sizing standard, SDR, coil length, and compatible Pro-Poly components before you order.
Frequently Asked Questions
What is Pro-Flex Pro-Poly gas pipe used for?
The PEIPS/PECTS Series is intended for underground Natural Gas and LP (Propane) gas piping systems and is engineered for direct-burial applications.
What material is the pipe made from?
Pro-Flex specifies PE2708 medium-density polyethylene.
What are the dimensions of the 1/2" IPS pipe?
The manufacturer specifies a 0.840" average OD, 0.660" approximate ID, .090" wall thickness, and SDR 9.3.
What is the maximum working pressure?
The manufacturer specifies a maximum working pressure of 80 PSIG.
What is the maximum testing pressure?
The maximum testing pressure specified by Pro-Flex is 120 PSIG.
What is the temperature rating?
The manufacturer specifies a temperature rating from -20°F through 140°F.
Can this pipe be used for propane?
Yes. Pro-Flex lists both Natural Gas and LP (Propane) Gas as approved gases for the PEIPS/PECTS Series.
What lengths are available in this listing?
This 1/2" IPS listing includes 150', 300', and 500' coil lengths.
What is the difference between CTS and IPS?
CTS and IPS are different dimensional sizing systems. Confirm the required sizing system and compatible fittings before ordering.
How can Pro-Poly polyethylene pipe be joined?
Pro-Flex states that the pipe may be joined using mechanical fittings, various types of fusion fittings, or stab fittings listed for ASTM D2513 pipe of the same diameter and SDR. Follow the fitting manufacturer's installation instructions.
Important Ordering & Installation Notes
- This listing is specifically for 1/2" IPS polyethylene gas piping.
- Confirm IPS sizing is required before ordering.
- PEIPS-12150 is the 150' configuration.
- PEIPS-12300 is the 300' configuration.
- PEIPS-12500 is the 500' configuration.
- Confirm the required pipe diameter, SDR, and fitting compatibility.
- Installation must comply with applicable local codes and the Pro-Poly Installation Guide.
- Follow the fitting manufacturer's instructions when joining the pipe.
