Pro-Flex
Pro-Flex Pro-Poly 1" IPS Polyethylene Gas Pipe
- Availability:
- Usually Ships in 5-7 Business Days
- Weight:
- 0.00 LBS
Description

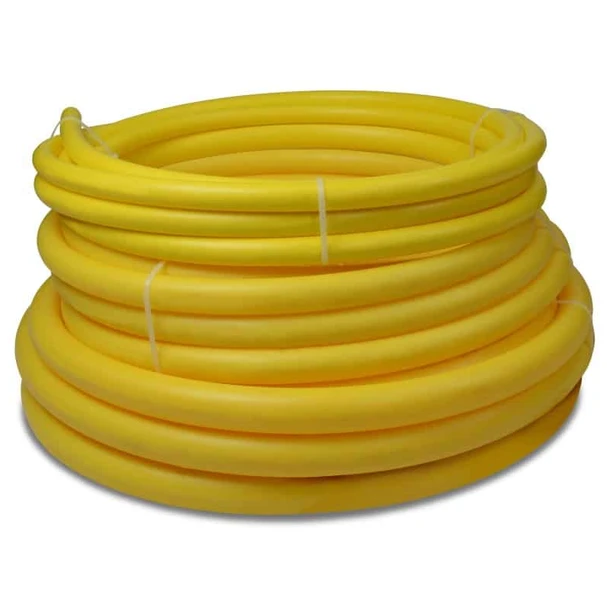

Pro-Flex Pro-Poly 1" IPS Polyethylene Gas Pipe
Pro-Flex Pro-Poly 1" IPS Polyethylene Gas Pipe is part of the PEIPS/PECTS Series designed for underground Natural Gas and LP (Propane) gas piping systems. Manufactured from PE2708 medium-density polyethylene, the pipe is engineered for direct-burial applications.
This listing provides 1" IPS SDR 11 polyethylene gas pipe in 50', 100', 150', 300', and 500' coil lengths. Manufacturer dimensional data for the 1" IPS pipe specifies a 1.315" average outside diameter, 1.075" approximate inside diameter, and .120" wall thickness.
Product Highlights
- Pro-Flex Pro-Poly polyethylene gas piping
- PEIPS/PECTS Series
- 1" IPS pipe size
- SDR 11
- PE2708 medium-density polyethylene
- 1.315" average outside diameter
- 1.075" approximate inside diameter
- .120" wall thickness
- 18.3 lb per 100' published pipe weight
- For Natural Gas and LP (Propane) gas piping systems
- Engineered for direct-burial applications
- 80 PSIG maximum working pressure
- 120 PSIG maximum testing pressure
- -20°F to 140°F temperature rating
- ASTM D2513
- Available in 50', 100', 150', 300', and 500' coil lengths
Technical Specifications
| Manufacturer | Pro-Flex |
|---|---|
| Product Line | Pro-Poly |
| Series | PEIPS/PECTS |
| Product Type | Polyethylene Gas Pipe |
| Application | Underground Natural Gas and LP (Propane) Gas Piping Systems |
| Installation Type | Direct Burial |
| Material | PE2708 Medium-Density Polyethylene |
| Pipe Size | 1" IPS |
| SDR | 11 |
| Average Outside Diameter | 1.315" |
| Approximate Inside Diameter | 1.075" |
| Wall Thickness | .120" |
| Published Weight | 18.3 lb per 100' |
| Approved Gases | Natural Gas and LP (Propane) Gas |
| Maximum Working Pressure | 80 PSIG |
| Maximum Testing Pressure | 120 PSIG |
| Temperature Rating | -20°F to 140°F |
| Standard | ASTM D2513 |
| Available Lengths | 50', 100', 150', 300', and 500' |
Available Lengths
50' Coil
- Part number: PEIPS-0150
- Pipe size: 1" IPS
- SDR: 11
- Length: 50'
100' Coil
- Manufacturer part number: PEIPS-01100
- Pipe size: 1" IPS
- SDR: 11
- Length: 100'
150' Coil
- Manufacturer part number: PEIPS-01150
- Pipe size: 1" IPS
- SDR: 11
- Length: 150'
300' Coil
- Manufacturer part number: PEIPS-01300
- Pipe size: 1" IPS
- SDR: 11
- Length: 300'
500' Coil
- Manufacturer part number: PEIPS-01500
- Pipe size: 1" IPS
- SDR: 11
- Length: 500'
Underground Gas Piping Applications
Pro-Flex specifies the Pro-Poly PEIPS/PECTS Series for use in underground Natural Gas and LP (Propane) gas piping systems. The polyethylene pipe is engineered for direct-burial applications.
Installation must be performed in accordance with applicable local codes and the current Pro-Poly Installation Guide.
Joining & Installation
According to Pro-Flex, PEIPS/PECTS pipe may be joined using mechanical fittings, various types of fusion fittings, or stab fittings listed for use with ASTM D2513 pipe of the same diameter and SDR.
Installers must follow the installation instructions provided by the fitting manufacturer.
Pressure & Temperature Ratings
Working Pressure
Maximum working pressure: 80 PSIG.
Testing Pressure
Maximum testing pressure: 120 PSIG.
Temperature
Temperature rating: -20°F to 140°F.
IPS Sizing & SDR 11
This listing is specifically for 1" IPS SDR 11 polyethylene gas pipe. Confirm that IPS sizing and SDR 11 are required for the installation and associated fittings before ordering.
Pro-Flex states that joining fittings must be listed for use with ASTM D2513 pipe of the same diameter and SDR.
Codes, Standards & Listings
- ASTM D2513
- NFPA 54
- NFPA 58
- ICC Codes including IFGC, IRC, IPC, and IMC
- UPC
Product Documents
Pro-Flex PEIPS/PECTS Polyethylene Gas Piping Spec Sheet
Review the Pro-Flex specification sheet for PEIPS and PECTS polyethylene gas pipe dimensional data, materials, pressure ratings, temperature ratings, applicable standards, and installation information.
Need Help Selecting Pro-Poly Gas Pipe?
Our industrial PVF specialists can help review your required pipe size, IPS or CTS sizing standard, SDR, coil length, and compatible Pro-Poly components before you order.
Frequently Asked Questions
What size is the pipe in this listing?
This listing is for 1" IPS SDR 11 polyethylene gas pipe.
What are the dimensions of the 1" IPS pipe?
Pro-Flex specifies a 1.315" average outside diameter, 1.075" approximate inside diameter, and .120" wall thickness.
What is the published pipe weight?
Pro-Flex lists the 1" IPS SDR 11 pipe at 18.3 lb per 100'. Individual coil weights vary according to length.
What lengths are available in this listing?
This listing includes 50', 100', 150', 300', and 500' coil lengths.
Can this pipe be used with Natural Gas?
Yes. Natural Gas is listed as an approved gas for the Pro-Poly PEIPS/PECTS Series.
Can this pipe be used with propane?
Yes. Pro-Flex also lists LP (Propane) Gas as an approved gas.
What is the maximum working pressure?
The manufacturer specifies a maximum working pressure of 80 PSIG.
What is the maximum testing pressure?
The manufacturer specifies a maximum testing pressure of 120 PSIG.
What is the temperature rating?
The manufacturer specifies a temperature rating of -20°F to 140°F.
What standard is this polyethylene gas pipe manufactured to?
The Pro-Flex specification sheet identifies ASTM D2513.
How can the polyethylene pipe be joined?
Pro-Flex states that the pipe may be joined using mechanical fittings, various types of fusion fittings, or stab fittings listed for use with ASTM D2513 pipe of the same diameter and SDR. Follow the fitting manufacturer's installation instructions.
Important Ordering & Installation Notes
- This listing is specifically for 1" IPS SDR 11 polyethylene gas pipe.
- Confirm IPS sizing and SDR 11 are required before ordering.
- Select the required coil length before ordering.
- Confirm pipe diameter, SDR, and fitting compatibility.
- Installation must comply with applicable local codes and the Pro-Poly Installation Guide.
- Follow the fitting manufacturer's instructions when joining the pipe.
