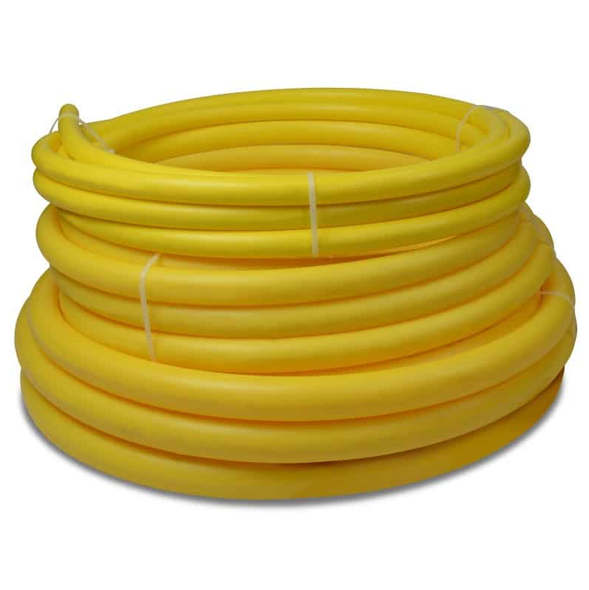

Pro-Flex Pro-Poly 1-1/4" IPS SDR 10 Polyethylene Gas Pipe
- Availability:
- Usually Ships in 5-7 Business Days
- Weight:
- 0.00 LBS
Description
Pro-Flex Pro-Poly 1-1/4" IPS SDR 10 Polyethylene Gas Pipe
Pro-Flex Pro-Poly 1-1/4" IPS SDR 10 Polyethylene Gas Pipe is part of the PEIPS/PECTS Series intended for underground Natural Gas and LP (Propane) gas piping systems. Manufactured from PE2708 medium-density polyethylene, the pipe is engineered for direct-burial applications.
This listing includes 50', 100', 150', 300', and 500' coil options. Manufacturer dimensional data for the 1 1/4" IPS SDR 10 pipe specifies a 1.660" average outside diameter, 1.328" approximate inside diameter, and a published weight of 30 lb per 100'.
Product Highlights
- Pro-Flex Pro-Poly polyethylene gas piping
- 1-1/4" IPS pipe size
- SDR 10
- PE2708 medium-density polyethylene construction
- 1.660" average outside diameter
- 1.328" approximate inside diameter
- 30 lb per 100' published pipe weight
- For Natural Gas and LP (Propane) gas piping systems
- Engineered for direct-burial applications
- 80 PSIG maximum working pressure
- 120 PSIG maximum testing pressure
- -20°F to 140°F temperature rating
- ASTM D2513
- Available in multiple coil lengths from 50' through 500'
Technical Specifications
| Manufacturer | Pro-Flex |
|---|---|
| Product Line | Pro-Poly |
| Series | PEIPS/PECTS |
| Product Type | Polyethylene Gas Pipe |
| Application | Underground Natural Gas and LP (Propane) Gas Piping Systems |
| Installation Type | Direct Burial |
| Material | PE2708 Medium-Density Polyethylene |
| Pipe Size | 1 1/4" IPS |
| SDR | 10 |
| Average Outside Diameter | 1.660" |
| Approximate Inside Diameter | 1.328" |
| Published Weight | 30 lb per 100' |
| Approved Gases | Natural Gas and LP (Propane) Gas |
| Maximum Working Pressure | 80 PSIG |
| Maximum Testing Pressure | 120 PSIG |
| Temperature Rating | -20°F to 140°F |
| Standard | ASTM D2513 |
| Available Lengths | 50', 100', 150', 300', and 500' |
Available Lengths
50' Coil
- Part number: PESDR10-011450
- Pipe size: 1 1/4" IPS
- SDR: 10
- Length: 50'
- Calculated pipe weight: approximately 15.00 lb
100' Coil
- Part number: PESDR10-0114100
- Pipe size: 1 1/4" IPS
- SDR: 10
- Length: 100'
- Calculated pipe weight: approximately 30.00 lb
150' Coil
- Manufacturer part number: PESDR10-0114150
- Pipe size: 1 1/4" IPS
- SDR: 10
- Length: 150'
- Calculated pipe weight: approximately 45.00 lb
300' Coil
- Manufacturer part number: PESDR10-0114300
- Pipe size: 1 1/4" IPS
- SDR: 10
- Length: 300'
- Calculated pipe weight: approximately 90.00 lb
500' Coil
- Manufacturer part number: PESDR10-0114500
- Pipe size: 1 1/4" IPS
- SDR: 10
- Length: 500'
- Calculated pipe weight: approximately 150.00 lb
Underground Gas Piping Applications
Pro-Flex specifies the PEIPS/PECTS Series for use in underground Natural Gas and LP (Propane) gas piping systems. The polyethylene gas pipe is engineered for direct-burial applications.
Installation must be performed in accordance with applicable local codes and the current Pro-Poly Installation Guide.
Joining & Installation
According to Pro-Flex, the pipe may be joined using mechanical fittings, various types of fusion fittings, or stab fittings listed for use with ASTM D2513 pipe of the same diameter and SDR.
Installers must follow the installation instructions supplied by the fitting manufacturer.
Pressure & Temperature Ratings
Working Pressure
Maximum working pressure: 80 PSIG.
Testing Pressure
Maximum testing pressure: 120 PSIG.
Temperature
Temperature rating: -20°F to 140°F.
IPS Sizing & SDR 10
This listing is specifically for 1 1/4" IPS SDR 10 polyethylene gas pipe. Pro-Flex also offers other pipe sizes and SDR configurations, so confirm the required diameter and SDR before ordering fittings or system components.
Pro-Flex states that joining fittings must be listed for ASTM D2513 pipe of the same diameter and SDR.
Codes, Standards & Listings
- ASTM D2513
- NFPA 54
- NFPA 58
- ICC Codes including IFGC, IRC, IPC, and IMC
- UPC
Product Documents
Pro-Flex PEIPS/PECTS Polyethylene Gas Piping Spec Sheet
Review the Pro-Flex specification sheet for PEIPS and PECTS polyethylene gas pipe dimensional data, materials, pressure ratings, temperature ratings, applicable standards, and installation information.
Need Help Selecting Pro-Poly Gas Pipe?
Our industrial PVF specialists can help review your required pipe size, IPS or CTS sizing standard, SDR, coil length, and compatible Pro-Poly components before you order.
Frequently Asked Questions
What size is the pipe in this listing?
This listing is for 1 1/4" IPS SDR 10 polyethylene gas pipe.
What are the manufacturer-published dimensions?
The specification sheet lists a 1.660" average outside diameter and a 1.328" approximate inside diameter for the 1 1/4" IPS SDR 10 pipe.
What is the published pipe weight?
Pro-Flex lists the 1 1/4" IPS SDR 10 pipe at 30 lb per 100'. Individual coil weights vary according to length.
What lengths are available?
This listing includes 50', 100', 150', 300', and 500' coil options.
Can this pipe be used for Natural Gas?
Yes. Natural Gas is listed as an approved gas for the PEIPS/PECTS Series.
Can this pipe be used for LP or propane?
Yes. Pro-Flex also lists LP (Propane) Gas as an approved gas.
What is the maximum working pressure?
The manufacturer specifies a maximum working pressure of 80 PSIG.
What is the maximum testing pressure?
The manufacturer specifies a maximum testing pressure of 120 PSIG.
What is the temperature rating?
The manufacturer specifies a temperature rating of -20°F to 140°F.
What standard applies to this gas pipe?
The Pro-Flex specification sheet identifies ASTM D2513.
Why is confirming SDR important?
Pro-Flex requires joining fittings to be listed for ASTM D2513 pipe of the same diameter and SDR. Confirm SDR 10 compatibility before selecting fittings.
Important Ordering & Installation Notes
- This listing is specifically for 1 1/4" IPS SDR 10 polyethylene gas pipe.
- Confirm IPS sizing and SDR 10 compatibility before ordering.
- Select the required coil length before ordering.
- Confirm pipe diameter, SDR, and fitting compatibility.
- Installation must comply with applicable local codes and the Pro-Poly Installation Guide.
- Follow the fitting manufacturer's instructions when joining the pipe.
