Milwaukee

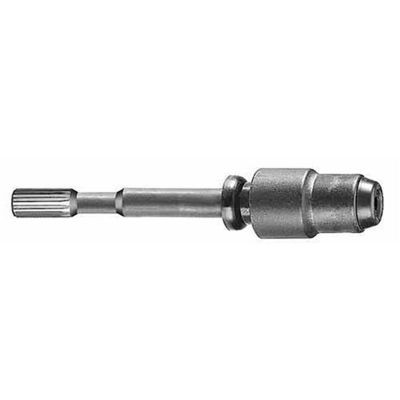

Milwaukee Tool SDS+ Vaccuum Bit Adapter
- SKU:
- MLW48-20-2100
- Availability:
- Usually Ships Same Day
- Weight:
- 0.30 LBS
Description
DUTY®
SDS-Plus Vacuum
Bit Adapter
Connect a Milwaukee SDS-Plus vacuum drill bit to a compatible dust extractor hose.
Product Overview
Use the vacuum bit system in dry, cured concrete; wet dust can solidify inside the bit.
Before drilling, clear any debris and check that the adapter is seated and can rotate freely.
- Dry operationAvoid water and wet areas
- Debris checkClear blocked dust paths
- Adapter movementCheck free rotation
- Hose setupMatch extractor requirements
Technical Specifications
- Bit family
- SDS-Plus vacuum bits
- Min. hose bore
- 1-1/4 in / 32 mm
- Min. vacuum power
- 1,200 W
- Min. airflow
- 82 CFM
- Max. hose length
- 16 ft 5 in / 5 m
- Filter requirement
- 99%+, self-cleaning
Choose the Correct Fit
Confirm the vacuum drill bit uses the SDS-Plus adapter before ordering. This part connects the extraction hose; it does not convert an ordinary solid drill bit.
The specifications above describe the connected extraction system requirements. Use a hose at least 1-1/4 inches in diameter and no longer than 16 feet 5 inches.
Installation & Care
Milwaukee also specifies at least 92 inches of water lift. Check the extractor manual for airflow, power, filtration and pressure before use.
Keep the bit and adapter clear of debris. Do not wash with water or drill in wet areas; follow the vacuum bit instructions for dry cleaning and safe setup.
Small Details. Big Jobsite Energy.
Get set. Stay focused. Make your next move count.
THE NEXT JOB.
Ask Willy:
Tell Willy the vacuum bit model, extractor model and hose size to help confirm this SDS-Plus adapter connection.
Important Product Questions
Can I use the vacuum bit system in wet areas?
No. Milwaukee says not to drill in water or wet areas. If the bit gets wet, stop and let it dry thoroughly; concrete must be properly cured before drilling.
What should I check if dust escapes while drilling?
Remove the bit from the work surface and check for a clog. Confirm the hose connection and extractor setup before restarting; Milwaukee requires at least 92 inches of water lift in addition to the listed airflow and filtration.
How should debris be cleared?
Milwaukee allows a screwdriver or compressed air to clear debris and says not to clean with water. Follow the bit instructions and wear the required eye and respiratory protection.
