Empire Industries

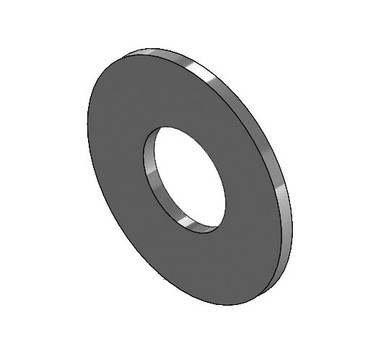

Fig. 52 Round Steel Washer
- SKU:
- Fig. 52
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
Fig. 52 Round Steel Washer
Empire Fig. 52 Round Steel Washer is designed to produce a greater bearing surface.
Available in multiple rod sizes and material or finish options, Fig. 52 washers are supplied in full box quantities. Specify the figure number, finish, and rod size when ordering.
Product Highlights
- Round steel washer
- Designed to produce a greater bearing surface
- Sizes from 1/4" through 7/8"
- Available in plain carbon steel, electro-galvanized, T-304 stainless steel, and T-316 stainless steel
- Full box quantities only
Size, Dimensions & Weight
| Size | OD | ID | Weight Each |
|---|---|---|---|
| 1/4" | 3/4" | 5/16" | 0.01 lbs. |
| 3/8" | 1" | 7/16" | 0.02 lbs. |
| 1/2" | 1-3/8" | 9/16" | 0.04 lbs. |
| 5/8" | 1-3/4" | 11/16" | 0.08 lbs. |
| 3/4" | 2" | 13/16" | 0.11 lbs. |
| 7/8" | 2-1/4" | 15/16" | 0.15 lbs. |
Technical Specifications
| Manufacturer | Empire Industries |
|---|---|
| Figure | 52 |
| Product Type | Round Steel Washer |
| Service | Designed to produce a greater bearing surface |
| Available Finishes | Plain Carbon Steel, Electro-Galvanized, T-304 Stainless Steel & T-316 Stainless Steel |
| Ordering | Specify Figure Number, Finish and Rod Size |
| Packaging | Full Box Quantities Only |
Material & Finish Options
Empire lists the Fig. 52 Round Steel Washer in the following configurations:
- Fig. 52B – Plain Carbon Steel
- Fig. 52G – Electro-Galvanized
- Fig. 52SS – T-304 Stainless Steel
- Fig. 52SX – T-316 Stainless Steel
Bearing Surface
The Fig. 52 washer is designed to provide a greater bearing surface. Select the appropriate rod size and finish for the required assembly.
Important Ordering Notes
Specify the figure number, finish, and rod size when ordering. Fig. 52 Round Steel Washers are supplied in full box quantities only.
Product Documents
Product Questions
What is the Empire Fig. 52 Round Steel Washer designed for?
It is designed to produce a greater bearing surface.
What sizes are available?
The Fig. 52 submittal lists 1/4", 3/8", 1/2", 5/8", 3/4", and 7/8" sizes.
What material and finish options are available?
Empire lists plain carbon steel, electro-galvanized, T-304 stainless steel, and T-316 stainless steel configurations.
What information should be specified when ordering?
Specify the figure number, finish, and rod size.
How are Fig. 52 Round Steel Washers packaged?
Empire specifies full box quantities only.
