Empire Industries
Fig. 52F Fender Washer
- SKU:
- Fig. 52F
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description

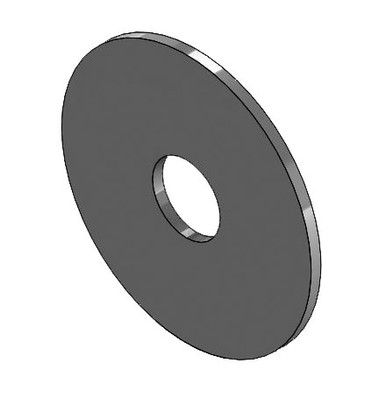

Fig. 52F Fender Washer - Zinc Plated
Empire Fig. 52F Fender Washer is designed to produce a greater bearing surface.
Available in an electro-galvanized finish, the Fig. 52F is offered in 1/4", 3/8", and 1/2" sizes. Specify the figure number, finish, and rod size when ordering.
Product Highlights
- Fender washer design
- Designed to produce a greater bearing surface
- Electro-galvanized finish
- Available in 1/4", 3/8", and 1/2" sizes
Size, Dimensions & Weight
| Size | OD | ID | Approx. Pieces / 50 lbs. | Weight Each |
|---|---|---|---|---|
| 1/4" | 1-1/4" | 9/32" | 1,575 | 0.03 lbs. |
| 3/8" | 1-1/2" | 13/32" | 1,650 | 0.03 lbs. |
| 1/2" | 1-1/2" | 17/32" | 925 | 0.05 lbs. |
Technical Specifications
| Manufacturer | Empire Industries |
|---|---|
| Figure | 52F |
| Product Type | Fender Washer |
| Finish | Electro-Galvanized |
| Service | Designed to produce a greater bearing surface |
| Available Sizes | 1/4", 3/8" & 1/2" |
| Ordering | Specify Figure Number, Finish and Rod Size |
Electro-Galvanized Finish
Empire identifies the Fig. 52F configuration as electro-galvanized.
Bearing Surface
The Fig. 52F Fender Washer is designed to provide a greater bearing surface. Select the appropriate rod size for the required assembly.
Important Ordering Notes
Specify the figure number, finish, and rod size when ordering. Refer to the Empire Fig. 52F submittal for the listed OD, ID, approximate pieces per 50 lbs., and individual washer weights.
Product Documents
Product Questions
What is the Empire Fig. 52F Fender Washer designed for?
It is designed to produce a greater bearing surface.
What finish is available?
The Fig. 52F Fender Washer is available with an electro-galvanized finish.
What sizes are available?
The Fig. 52F submittal lists 1/4", 3/8", and 1/2" sizes.
What information should be specified when ordering?
Specify the figure number, finish, and rod size.
