Fig. 72 Bevel Washer
- SKU:
- Fig. 72
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description

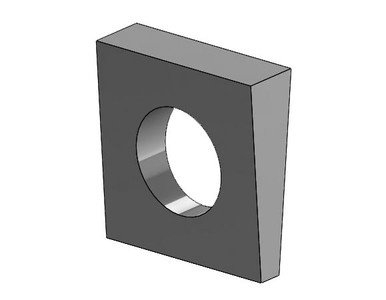

Fig. 72 Bevel Washer
Empire Fig. 72 Bevel Washer is designed to compensate for the taper of “S” shape beam flanges so the bearing surface of a bolt or nut will seat flush.
This bevel washer is supplied with an electro-galvanized finish and is available for multiple bolt sizes.
Product Highlights
- Designed for use with tapered “S” shape beam flanges
- Compensates for flange taper to provide a flush bearing surface
- Allows the bearing surface of a bolt or nut to seat flush
- Electro-galvanized finish
- Available for bolt sizes from 3/8" through 7/8"
- Specify figure number and bolt size when ordering
Dimensions & Weights
| Bolt Size | O.D. | I.D. | Thickness A | Thickness B | Weight Each |
|---|---|---|---|---|---|
| 3/8" | 1-1/4" | 7/16" | 11/32" | 5/32" | 0.09 lbs. |
| 1/2" | 1-1/4" | 9/16" | 11/32" | 5/32" | 0.09 lbs. |
| 5/8" | 1-1/2" | 11/16" | 13/32" | 5/32" | 0.14 lbs. |
| 3/4" | 1-1/2" | 13/16" | 15/32" | 7/32" | 0.16 lbs. |
| 7/8" | 2" | 15/16" | 9/16" | 7/32" | 0.34 lbs. |
Technical Specifications
| Manufacturer | Empire Industries |
|---|---|
| Figure | 72 |
| Product Type | Bevel Washer |
| Finish | Electro-Galvanized |
| Application | “S” Shape Beam Flanges |
| Function | Compensates for Beam Flange Taper so Bolt or Nut Bearing Surface Seats Flush |
| Bolt Sizes | 3/8", 1/2", 5/8", 3/4" and 7/8" |
| Ordering | Specify Figure Number and Bolt Size |
Bevel Washer Design
The Fig. 72 uses a beveled profile to compensate for the taper found on “S” shape beam flanges. This provides a more level bearing surface for the associated bolt or nut.
Available Finish
This listing is for the electro-galvanized Fig. 72G configuration. The manufacturer’s submittal also identifies a plain carbon steel Fig. 72B configuration.
Important Ordering Notes
Specify the figure number and bolt size when ordering. Refer to the Empire Fig. 72 submittal for the corresponding outside diameter, inside diameter, thickness, and weight for each bolt size.
Product Documents
Product Questions
What is the Fig. 72 Bevel Washer designed for?
It is designed to compensate for the taper of “S” shape beam flanges so the bearing surface of a bolt or nut will seat flush.
What finish does this Fig. 72 Bevel Washer have?
This listing is for the electro-galvanized configuration.
What bolt sizes are available?
The manufacturer lists 3/8", 1/2", 5/8", 3/4", and 7/8" bolt sizes.
What information should be specified when ordering?
Specify the figure number and required bolt size.
