Fig. 909 Forged Steel Clevis
- SKU:
- Fig. 909
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description

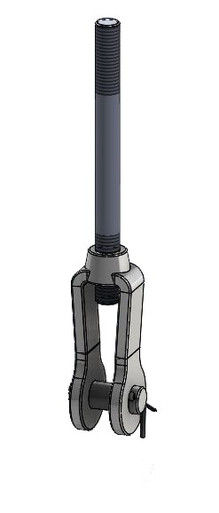

Fig. 909 Forged Steel Clevis
Empire Fig. 909 Forged Steel Clevis is designed for use on high-temperature piping installations and provides a heavy-duty connection point for threaded hanger rod assemblies.
Available in plain carbon steel, hot-dip galvanized, and T-316 stainless steel configurations, the Fig. 909 complies with MSS SP-58 and MSS SP-69 Type 14 requirements.
Product Highlights
- Forged steel clevis for high-temperature piping installations
- Complies with MSS SP-58 and MSS SP-69 Type 14
- Available in plain carbon steel, hot-dip galvanized, and T-316 stainless steel
- Domestic, oversized-tap, and special-thread-direction variants available
- Supplied standard with pin and cotter pins
- Rod sizes from 3/8"-16 through 1-1/2"-6
- Maximum recommended loads published for 650°F and 750°F service
Maximum Recommended Loads
| Rod Size | Clevis Size | Weight Each | Max Load at 650°F | Max Load at 750°F |
|---|---|---|---|---|
| 3/8"-16 | 2 | 1.0 lb | 730 lb | 540 lb |
| 1/2"-13 | 2 | 1.0 lb | 1,350 lb | 1,010 lb |
| 5/8"-11 | 2 | 1.1 lb | 2,160 lb | 1,610 lb |
| 3/4"-10 | 2-1/2 | 2.3 lb | 3,230 lb | 2,420 lb |
| 7/8"-9 | 2-1/2 | 2.5 lb | 4,480 lb | 3,360 lb |
| 1"-8 | 3 | 5.1 lb | 5,900 lb | 4,420 lb |
| 1-1/8"-7 | 3 | 5.2 lb | 6,230 lb | 5,560 lb |
| 1-1/4"-7 | 3 | 5.6 lb | 9,500 lb | 7,140 lb |
| 1-1/2"-6 | 3-1/2 | 8.1 lb | 13,800 lb | 10,370 lb |
Technical Specifications
| Manufacturer | Empire Industries |
|---|---|
| Figure | 909 |
| Product Type | Forged Steel Clevis |
| Service | High-Temperature Piping Installations |
| Materials / Finishes | Plain Carbon Steel, Hot-Dip Galvanized, T-316 Stainless Steel |
| Available Variants | Domestic, Oversized Tap, Special Thread Direction |
| Approvals | MSS SP-58 and MSS SP-69, Type 14 |
| Standard Hardware | Pin and Cotter Pins |
| Published Rod Sizes | 3/8"-16 through 1-1/2"-6 |
Ordering Information
Specify the size number, rod size, finish, and part number when ordering. For non-standard dimensional requirements, also specify the required pin size and grip.
Important Ordering Notes
- For non-standard dimensions, specify the required pin size and grip.
- Do not exceed the published maximum recommended load for the applicable service temperature.
- Variant item patterns may vary.
Product Documents
Product Questions
What is the Fig. 909 Forged Steel Clevis designed for?
It is designed for use on high-temperature piping installations.
What materials and finishes are available?
Empire lists plain carbon steel, hot-dip galvanized, and T-316 stainless steel configurations.
Does the Fig. 909 meet MSS standards?
Yes. Empire identifies the Fig. 909 as complying with MSS SP-58 and MSS SP-69 Type 14.
What hardware is included?
Forged clevises are normally supplied with a pin and cotter pins.
Are special configurations available?
Yes. Empire lists domestic, oversized-tap, and special-thread-direction variants.
