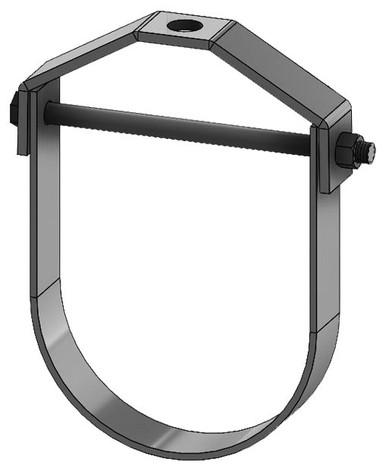

Fig. 11DIP Adjustable Clevis Hanger for Ductile Iron Pipe
- SKU:
- Fig. 11DIP
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
Fig. 11DIP Adjustable Clevis Hanger for Ductile Iron Pipe
Empire Fig. 11DIP Adjustable Clevis Hangers are designed for the suspension of stationary AWWA ductile iron pipe and PVC C-900 pipe.
For 3" ductile iron pipe, Empire specifies use of standard 11G0350. For sizes 8" and larger, a spacer sleeve is added over the cross bolt. The upper locknut must be tightened securely to assure proper hanger performance. Stainless steel hangers are recommended for applications where protection from a corrosive environment is required.
Product Highlights
- Designed for stationary AWWA ductile iron pipe
- Compatible with PVC C-900 pipe
- Adjustable clevis hanger design
- For 3" DIP, use standard 11G0350
- Spacer sleeve added over the cross bolt on sizes 8" and larger
- Upper locknut must be tightened securely for proper hanger performance
- Stainless steel hangers recommended for corrosive environments
Pipe Support Design
The Fig. 11DIP is designed specifically for suspending stationary AWWA ductile iron pipe and PVC C-900 pipe. Its adjustable clevis configuration allows the supported pipe to be positioned within the hanger assembly while providing a dedicated suspension point.
For 3" ductile iron pipe, Empire specifies the standard 11G0350 hanger. For sizes 8" and larger, a spacer sleeve is added over the cross bolt to support the larger hanger configuration.
Technical Specifications
| Manufacturer | Empire Industries |
|---|---|
| Figure | 11DIP |
| Product Type | Adjustable Clevis Hanger |
| Primary Pipe Type | AWWA Ductile Iron Pipe |
| Additional Pipe Compatibility | PVC C-900 Pipe |
| Pipe Service | Stationary Piping |
| 3" DIP Requirement | Use Standard 11G0350 |
| 8" & Larger Sizes | Spacer Sleeve Added Over Cross Bolt |
| Installation Requirement | Upper Locknut Must Be Tightened Securely |
| Corrosive Environments | Stainless Steel Hangers Recommended |
Installation Requirements
The upper locknut must be tightened securely to assure proper hanger performance.
Where protection from a corrosive environment is required, stainless steel hangers are recommended.
Important Ordering Notes
- Select the hanger size appropriate for the ductile iron or PVC C-900 pipe being supported.
- For 3" ductile iron pipe, use standard 11G0350.
- For sizes 8" and larger, the hanger includes a spacer sleeve over the cross bolt.
- The upper locknut must be tightened securely to assure proper hanger performance.
- Stainless steel hangers are recommended where protection from a corrosive environment is required.
- Review the Empire Fig. 11DIP submittal before installation.
Product Documents
Product Questions
What pipe is the Fig. 11DIP designed to support?
The Fig. 11DIP is designed for the suspension of stationary AWWA ductile iron pipe and PVC C-900 pipe.
What hanger should be used for 3" ductile iron pipe?
For 3" DIP, Empire specifies use of standard 11G0350.
What changes on sizes 8" and larger?
For sizes 8" and larger, a spacer sleeve is added over the cross bolt.
Does the upper locknut need to be tightened?
Yes. Empire states that the upper locknut must be tightened securely to assure proper hanger performance.
What is recommended for corrosive environments?
Stainless steel hangers are recommended for applications where protection from a corrosive environment is required.
Where can I find additional pipe dimension information?
The Pipe Chart provided in the Product Documentation section includes common pipe diameters and wall thicknesses for reference.
