Titan
Y (Wye) Strainer Cast Iron Threaded - Class 250
- SKU:
- YS12-CI
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description

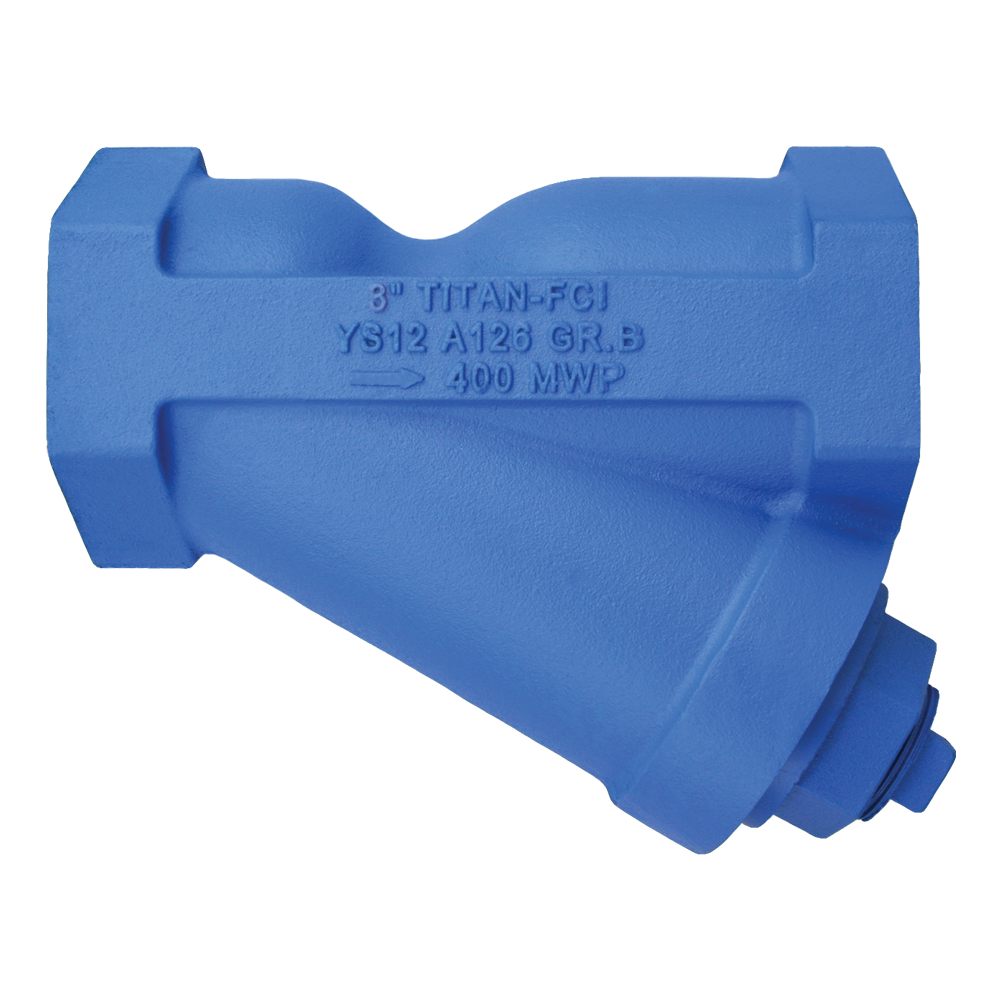

Titan YS12-CI Cast Iron Threaded Y Strainer - Class 250
Titan Flow Control YS12-CI cast iron threaded Y strainers are designed to remove unwanted solids from compatible piping systems before debris reaches pumps, valves, meters, heat exchangers, spray nozzles, and other downstream equipment.
Select the required nominal pipe size from the product options above. The selected variation determines the Titan part code, GetPipe selling price, shipping weight, and net cost.
Product Highlights
- Titan Flow Control model YS12-CI
- ASTM A126 Grade B cast iron body
- Threaded end connections
- ASME Class 250 design
- 400 psi WOG non-shock pressure rating at 150°F
- Large straining capacity for pipeline protection
- Precision-machined seats
- Threaded cap for access to the straining element
- Epoxy-painted body
- Self-cleaning capability when installed and maintained appropriately
- Available in nominal sizes from 1/4" through 3"
Technical Specifications
| Manufacturer | Titan Flow Control |
|---|---|
| Model | YS12-CI |
| Product Type | Y / Wye Strainer |
| Body Material | Cast Iron - ASTM A126 Grade B |
| End Connection | Threaded |
| ASME Rating | Class 250 |
| Pressure Rating | 400 psi WOG non-shock at 150°F |
| Body Finish | Epoxy Painted |
| Cap Style | Threaded Cap |
| Available Sizes | 1/4" through 3" |
| Straining Elements | Titan offers Type 304 stainless steel stocked mesh and perforation selections; confirm the required element for the application. |
How a Y Strainer Works
Process flow passes through the Y strainer's internal straining element, which captures debris before it can travel downstream. The angled branch provides access to the straining element for inspection and cleaning. Proper strainer sizing, screen or perforation selection, and routine maintenance help protect system components while minimizing unnecessary pressure loss.
Straining Element Options
Titan lists stocked Type 304 stainless steel mesh and perforation options for the YS12-CI family. Stocked mesh selections include 10, 20, 30, 40, 60, 80, and 100 mesh. Stocked perforation selections include 1/32", 3/64", 1/16", 1/8", 5/32", and 1/4". If your service requires a specific mesh or perforation, contact GetPipe.com before ordering so the required configuration can be confirmed.
Common Applications
Mechanical & Utility Piping
- Water and compatible liquid systems
- Pump protection
- Meter protection
- Valve and control-equipment protection
Commercial & Industrial
- Process piping
- General industrial piping systems
- Spray nozzle protection
- Equipment inlet protection
Titan Product Resources
Use the manufacturer documents below for model-specific technical information, installation guidance, maintenance procedures, and selection assistance.
Need Help Selecting a Titan Y Strainer?
Our industrial PVF specialists can help confirm nominal pipe size, pressure class, straining element, service conditions, material compatibility, and product availability.
Frequently Asked Questions
What is the Titan YS12-CI?
The YS12-CI is a cast iron threaded Y strainer used to capture debris in compatible piping systems and help protect downstream equipment.
What pressure class is the YS12-CI?
Titan identifies the YS12-CI as ASME Class 250 with a 400 psi WOG non-shock pressure rating at 150°F.
What material is the body?
The body is ASTM A126 Grade B cast iron with an epoxy-painted exterior.
What straining elements are available?
Titan offers multiple Type 304 stainless steel stocked mesh and perforation selections. The required element should be selected for the service and particle size that must be retained.
Can I access the screen for cleaning?
Yes. The YS12-CI uses a threaded cap that provides access to the internal straining element. Always isolate, depressurize, and cool the piping system as required before maintenance.
Important Ordering Notes
- Select the required nominal pipe size before adding the product to your cart.
- The selected variation determines the Titan part code, price, shipping weight, and cost.
- Confirm the required mesh or perforation when the application requires a specific level of filtration.
- Confirm pressure, temperature, media compatibility, and applicable system requirements before installation.
- Review Titan's current specification sheet and IOM manual before installation or maintenance.
