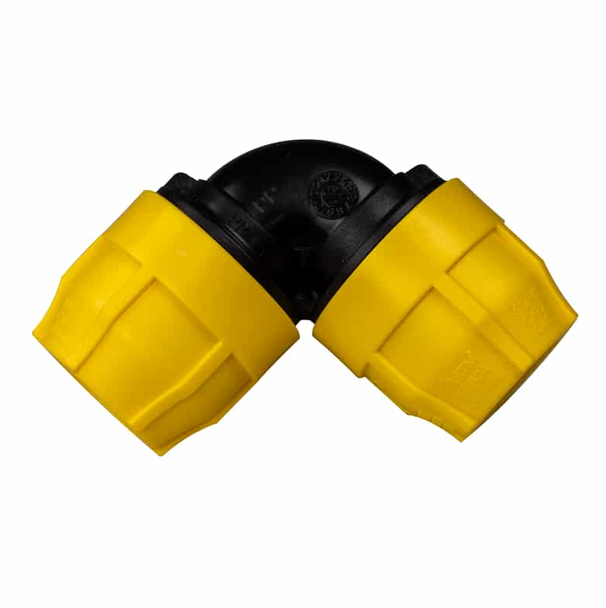

Pro-Flex Pro-Poly Underground Compression Elbow Fitting
- Availability:
- Usually Ships in 5-7 Business Days
- Weight:
- 0.00 LBS
Description
Pro-Flex Pro-Poly Underground Compression Elbow Fitting
Pro-Flex Pro-Poly Underground Compression Elbow Fittings are designed to join two compatible MDPE gas pipes of the same size at a right angle. The PEEL2-Series is available for 1/2" CTS and 3/4" through 2" IPS polyethylene gas pipe in SDR 10 and SDR 11 configurations where specified.
The fittings are approved for Natural Gas and LP (Propane), with a maximum working pressure of 80 PSIG and a maximum testing pressure of 120 PSIG.
Product Highlights
- Pro-Flex Pro-Poly Underground Compression Elbow Fitting
- Designed to join two MDPE gas pipes of the same size at a right angle
- 1/2" CTS and 3/4"-2" IPS configurations available
- SDR 10 and SDR 11 configurations available
- Approved for Natural Gas and LP (Propane)
- Maximum working pressure: 80 PSIG
- Maximum testing pressure: 120 PSIG
- Polypropylene nut and main body
- Nitrile O-ring
- Nylon spacer
- Acetal grip ring and stiffener
- IAPMO listed
Technical Specifications
| Manufacturer | Pro-Flex |
|---|---|
| Product Line | Pro-Poly |
| Series | PEEL2-Series |
| Product Type | Underground Compression Elbow Fitting |
| Application | Joining two MDPE gas pipes of the same size at a right angle |
| Approved Gases | Natural Gas & LP (Propane) |
| Maximum Working Pressure | 80 PSIG |
| Maximum Testing Pressure | 120 PSIG |
| Nut & Main Body | Polypropylene |
| O-Ring | Nitrile |
| Spacer | Nylon |
| Grip Ring | Acetal |
| Stiffener | Acetal |
| Codes | NFPA 54, ICC Codes (IFGC, IRC, IPC, IMC), UPC, UMC |
| Standard | ASTM F1924-10218 |
| Listing | IAPMO |
Available Elbow Sizes
1/2" CTS
- Manufacturer part number: PEEL2-12CTSC
- Pipe size: 1/2" CTS
- Pipe dimension: .625" x .090"
3/4" IPS SDR 11
- Manufacturer part number: PEEL2-34C
- Pipe size: 3/4" IPS
- SDR: 11
1" IPS SDR 11
- Manufacturer part number: PEEL2-01C
- Pipe size: 1" IPS
- SDR: 11
1-1/4" IPS SDR 11
- Manufacturer part number: PEEL2-0114C
- Pipe size: 1-1/4" IPS
- SDR: 11
1-1/4" IPS SDR 10
- Manufacturer part number: PEEL210-0114C
- Pipe size: 1-1/4" IPS
- SDR: 10
1-1/2" IPS SDR 11
- Manufacturer part number: PEEL2-015C
- Pipe size: 1-1/2" IPS
- SDR: 11
2" IPS SDR 11
- Manufacturer part number: PEEL2-02C
- Pipe size: 2" IPS
- SDR: 11
Right-Angle Gas Pipe Connections
The PEEL2-Series elbow is designed to connect two MDPE gas pipes of the same size at a right angle. Select the fitting according to the complete CTS or IPS pipe designation and SDR where applicable.
CTS, IPS & SDR Selection
This listing includes a 1/2" CTS .625" x .090" configuration and IPS sizes from 3/4" through 2".
The 1-1/4" IPS elbow is available in both SDR 11 and SDR 10. Confirm the pipe SDR before ordering.
Materials & Construction
Body & Sealing Components
- Nut: Polypropylene
- Main body: Polypropylene
- O-ring: Nitrile
- Spacer: Nylon
Pipe Retention Components
- Grip ring: Acetal
- Stiffener: Acetal
Pressure Ratings & Approved Gases
Pressure Ratings
- Maximum working pressure: 80 PSIG
- Maximum testing pressure: 120 PSIG
Approved Gases
- Natural Gas
- LP (Propane)
Codes, Standards & Listings
- NFPA 54
- ICC Codes: IFGC, IRC, IPC, IMC
- UPC
- UMC
- ASTM F1924-10218
- IAPMO Listed
Installation
Pro-Flex specifies that product installation and system testing be completed by a qualified installer in accordance with NFPA 54/ANSI Z223.1, National Gas & Propane Installation Code B149.1 in Canada, applicable state and local codes, and the current Pro-Flex Installation/Training Guide.
Product Documents
Pro-Flex PEEL2-Series Elbow Fitting Spec Sheet
Review the Pro-Flex PEEL2-Series specification sheet for underground compression elbow application information, materials, approved gases, pressure ratings, codes, standards, installation requirements, and dimensional data.
Need Help Selecting an Underground Compression Elbow?
Our industrial PVF specialists can help confirm your MDPE pipe size, CTS or IPS sizing system, and SDR before you order.
Frequently Asked Questions
What is the PEEL2-Series elbow used for?
The PEEL2-Series elbow is designed to join two MDPE gas pipes of the same size at a right angle.
Can these elbows be used for Natural Gas?
Yes. Natural Gas is listed as an approved gas for the PEEL2-Series.
Can they be used for propane?
Yes. LP (Propane) is also an approved gas.
What is the maximum working pressure?
The manufacturer specifies a maximum working pressure of 80 PSIG.
What is the maximum testing pressure?
The manufacturer specifies a maximum testing pressure of 120 PSIG.
What sizes are available?
This listing includes 1/2" CTS and IPS sizes from 3/4" through 2".
What is the difference between PEEL2-0114C and PEEL210-0114C?
PEEL2-0114C is the 1-1/4" IPS SDR 11 elbow, while PEEL210-0114C is the 1-1/4" IPS SDR 10 elbow.
What is the fitting body made from?
The manufacturer specifies polypropylene for the nut and main body.
What materials are used for the sealing and retention components?
The manufacturer specifies a nitrile O-ring, nylon spacer, and acetal grip ring and stiffener.
Important Ordering & Installation Notes
- Designed for two MDPE gas pipes of the same size.
- Confirm CTS or IPS sizing before ordering.
- Confirm pipe diameter before ordering.
- Confirm SDR 10 or SDR 11 where applicable.
- The 1-1/4" IPS size is offered in separate SDR 10 and SDR 11 configurations.
- Maximum working pressure: 80 PSIG.
- Maximum testing pressure: 120 PSIG.
- Installation and system testing must be performed by a qualified installer in accordance with applicable codes and current Pro-Flex instructions.
