Pro-Flex

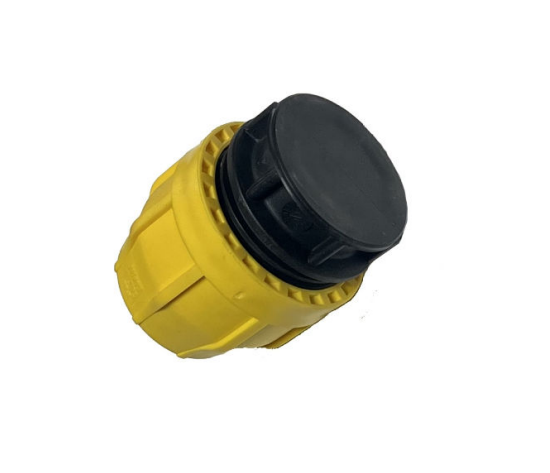

Pro-Flex Pro-Poly Underground Compression Cap Fitting
- Availability:
- Usually Ships in 5-7 Business Days
- Weight:
- 0.00 LBS
Description
Pro-Flex Pro-Poly Underground Compression Cap Fitting
Pro-Flex Pro-Poly Underground Compression Cap Fittings are designed to terminate the end of compatible MDPE gas pipe for future use or leak testing. The PECAP2-Series is available for 1/2" CTS and 3/4" through 2" IPS polyethylene gas pipe, with SDR 10 and SDR 11 configurations where specified.
The fittings are approved for Natural Gas and LP (Propane), with a maximum working pressure of 80 PSIG and a maximum testing pressure of 120 PSIG.
Product Highlights
- Pro-Flex Pro-Poly Underground Compression Cap Fitting
- Designed to terminate the end of MDPE gas pipe
- Suitable for future-use termination or leak testing
- 1/2" CTS and 3/4"-2" IPS configurations available
- SDR 10 and SDR 11 configurations available
- Approved for Natural Gas and LP (Propane)
- Maximum working pressure: 80 PSIG
- Maximum testing pressure: 120 PSIG
- Polypropylene nut and main body
- Nitrile O-ring
- Nylon spacer
- Acetal grip ring and stiffener
- IAPMO listed
Technical Specifications
| Manufacturer | Pro-Flex |
|---|---|
| Product Line | Pro-Poly |
| Series | PECAP2-Series |
| Product Type | Underground Compression Cap Fitting |
| Application | Terminating the end of poly pipe for future use or leak testing |
| Approved Gases | Natural Gas & LP (Propane) |
| Maximum Working Pressure | 80 PSIG |
| Maximum Testing Pressure | 120 PSIG |
| Nut & Main Body | Polypropylene |
| O-Ring | Nitrile |
| Spacer | Nylon |
| Grip Ring | Acetal |
| Stiffener | Acetal |
| Codes | NFPA 54, ICC Codes (IFGC, IRC, IPC, IMC), UPC, UMC |
| Standard | ASTM F1924-10218 |
| Listing | IAPMO |
Available Cap Sizes
1/2" CTS
- Manufacturer part number: PECAP2-12CTSC
- Pipe size: 1/2" CTS
- Pipe dimension: .625" x .090"
3/4" IPS SDR 11
- Manufacturer part number: PECAP2-34C
- Pipe size: 3/4" IPS
- SDR: 11
1" IPS SDR 11
- Manufacturer part number: PECAP2-01C
- Pipe size: 1" IPS
- SDR: 11
1-1/4" IPS SDR 11
- Manufacturer part number: PECAP2-0114C
- Pipe size: 1-1/4" IPS
- SDR: 11
1-1/4" IPS SDR 10
- Manufacturer part number: PECAP210-0114C
- Pipe size: 1-1/4" IPS
- SDR: 10
1-1/2" IPS SDR 11
- Manufacturer part number: PECAP2-015C
- Pipe size: 1-1/2" IPS
- SDR: 11
2" IPS SDR 11
- Manufacturer part number: PECAP2-02C
- Pipe size: 2" IPS
- SDR: 11
Pipe Termination Applications
The PECAP2-Series Cap Fitting is intended to terminate the end of compatible polyethylene gas pipe. Pro-Flex identifies future use and leak testing as the intended applications for this fitting.
CTS, IPS & SDR Selection
This listing includes a 1/2" CTS .625" x .090" configuration and IPS sizes from 3/4" through 2".
The 1-1/4" IPS cap is available in both SDR 11 and SDR 10. Confirm the pipe SDR before ordering.
Materials & Construction
Body & Sealing Components
- Nut: Polypropylene
- Main body: Polypropylene
- O-ring: Nitrile
- Spacer: Nylon
Pipe Retention Components
- Grip ring: Acetal
- Stiffener: Acetal
Pressure Ratings & Approved Gases
Pressure Ratings
- Maximum working pressure: 80 PSIG
- Maximum testing pressure: 120 PSIG
Approved Gases
- Natural Gas
- LP (Propane)
Codes, Standards & Listings
- NFPA 54
- ICC Codes: IFGC, IRC, IPC, IMC
- UPC
- UMC
- ASTM F1924-10218
- IAPMO Listed
Installation
Pro-Flex specifies that product installation and system testing be completed by a qualified installer in accordance with NFPA 54/ANSI Z223.1, National Gas & Propane Installation Code B149.1 in Canada, applicable state and local codes, and the current Pro-Flex Installation/Training Guide.
Product Documents
Pro-Flex PECAP2-Series Cap Fitting Spec Sheet
Review the Pro-Flex PECAP2-Series specification sheet for underground compression cap application information, materials, approved gases, pressure ratings, codes, standards, installation requirements, and dimensional data.
Need Help Selecting an Underground Compression Cap?
Our industrial PVF specialists can help confirm your MDPE pipe size, CTS or IPS sizing system, and SDR before you order.
Frequently Asked Questions
What is the PECAP2-Series cap used for?
Pro-Flex specifies the cap for terminating the end of poly pipe for future use or leak testing.
Can these caps be used for Natural Gas?
Yes. Natural Gas is listed as an approved gas for the PECAP2-Series.
Can they be used for propane?
Yes. LP (Propane) is also an approved gas.
What is the maximum working pressure?
The manufacturer specifies a maximum working pressure of 80 PSIG.
What is the maximum testing pressure?
The manufacturer specifies a maximum testing pressure of 120 PSIG.
What sizes are available?
This listing includes 1/2" CTS and IPS sizes from 3/4" through 2".
What is the difference between PECAP2-0114C and PECAP210-0114C?
PECAP2-0114C is the 1-1/4" IPS SDR 11 cap, while PECAP210-0114C is the 1-1/4" IPS SDR 10 cap.
What is the cap body made from?
The manufacturer specifies polypropylene for the nut and main body.
What materials are used for the sealing and retention components?
The manufacturer specifies a nitrile O-ring, nylon spacer, and acetal grip ring and stiffener.
Important Ordering & Installation Notes
- Designed to terminate compatible MDPE gas pipe.
- Confirm CTS or IPS sizing before ordering.
- Confirm pipe diameter before ordering.
- Confirm SDR 10 or SDR 11 where applicable.
- The 1-1/4" IPS size is offered in separate SDR 10 and SDR 11 configurations.
- Maximum working pressure: 80 PSIG.
- Maximum testing pressure: 120 PSIG.
- Installation and system testing must be performed by a qualified installer in accordance with applicable codes and current Pro-Flex instructions.
