Pro-Flex

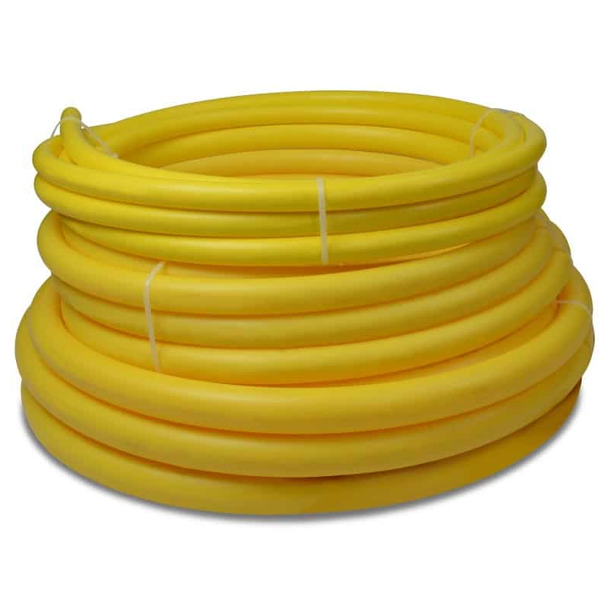

Pro-Flex Pro-Poly 1" CTS Polyethylene Gas Pipe
- Availability:
- Usually Ships in 5-7 Business Days
- Weight:
- 0.00 LBS
Description
Pro-Flex Pro-Poly 1" CTS Polyethylene Gas Pipe
Pro-Flex Pro-Poly 1" CTS Polyethylene Gas Pipe is part of the Pro-Poly PEIPS/PECTS gas piping system for underground Natural Gas and LP (Propane) installations. The pipe is manufactured from PE2708 medium-density polyethylene and is engineered for direct-burial applications.
This listing includes 150', 300', and 500' coil lengths. The supplied product information identifies these configurations as 1" CTS with 1.126" outside dimension and .099" wall thickness.
Product Highlights
- Pro-Flex Pro-Poly polyethylene gas piping
- PEIPS/PECTS product family
- 1" CTS sizing
- 1.126" supplied outside dimension
- .099" supplied wall thickness
- PE2708 medium-density polyethylene construction
- For Natural Gas and LP (Propane) gas piping systems
- Engineered for direct-burial applications
- 80 PSIG maximum working pressure
- 120 PSIG maximum testing pressure
- -20°F to 140°F temperature rating
- ASTM D2513
- Available in 150', 300', and 500' coil lengths
Technical Specifications
| Manufacturer | Pro-Flex |
|---|---|
| Product Line | Pro-Poly |
| Series | PEIPS/PECTS |
| Product Type | Polyethylene Gas Pipe |
| Application | Underground Natural Gas and LP (Propane) Gas Piping Systems |
| Installation Type | Direct Burial |
| Material | PE2708 Medium-Density Polyethylene |
| Pipe Size | 1" CTS |
| Outside Dimension | 1.126" |
| Wall Thickness | .099" |
| Approved Gases | Natural Gas and LP (Propane) Gas |
| Maximum Working Pressure | 80 PSIG |
| Maximum Testing Pressure | 120 PSIG |
| Temperature Rating | -20°F to 140°F |
| Standard | ASTM D2513 |
| Available Lengths | 150', 300', and 500' |
Available Lengths
150' Coil
- Manufacturer part number: PECTS-01150
- Pipe size: 1" CTS
- Outside dimension: 1.126"
- Wall thickness: .099"
- Length: 150'
300' Coil
- Manufacturer part number: PECTS-01300
- Pipe size: 1" CTS
- Outside dimension: 1.126"
- Wall thickness: .099"
- Length: 300'
500' Coil
- Manufacturer part number: PECTS-01500
- Pipe size: 1" CTS
- Outside dimension: 1.126"
- Wall thickness: .099"
- Length: 500'
Selecting the Correct Length
All three options in this listing are 1" CTS polyethylene gas pipe with the supplied 1.126" x .099" dimensional specification. Select the coil length according to the total amount of pipe required for the installation.
PECTS-01150 provides 150', PECTS-01300 provides 300', and PECTS-01500 provides 500' of pipe.
Underground Gas Piping Applications
Pro-Flex specifies the Pro-Poly PEIPS/PECTS Series for underground Natural Gas and LP (Propane) gas piping systems. The pipe is engineered for direct-burial applications.
Installation must be completed in accordance with applicable local codes and the current Pro-Poly Installation Guide.
Joining & Installation
Pro-Flex states that PEIPS/PECTS pipe may be joined using mechanical fittings, various types of fusion fittings, or stab fittings listed for use with ASTM D2513 pipe of the same diameter and SDR.
Installers must follow the installation instructions provided by the fitting manufacturer.
Pressure & Temperature Ratings
Working Pressure
Maximum working pressure: 80 PSIG.
Testing Pressure
Maximum testing pressure: 120 PSIG.
Temperature
Temperature rating: -20°F to 140°F.
CTS Sizing
This listing is specifically for 1" CTS polyethylene gas piping. CTS and IPS are different dimensional sizing systems, so confirm the required sizing standard and compatible fittings before ordering.
Codes, Standards & Listings
- ASTM D2513
- NFPA 54
- NFPA 58
- ICC Codes including IFGC, IRC, IPC, and IMC
- UPC
Product Documents
Pro-Flex PEIPS/PECTS Polyethylene Gas Piping Spec Sheet
Review the Pro-Flex specification sheet for PEIPS and PECTS polyethylene gas piping materials, pressure ratings, temperature ratings, standards, dimensional data, and installation information.
Need Help Selecting Pro-Poly Gas Pipe?
Our industrial PVF specialists can help review your pipe size, CTS or IPS sizing requirement, coil length, and compatible Pro-Poly fittings before you order.
Frequently Asked Questions
What size is the pipe in this listing?
This listing is for 1" CTS polyethylene gas pipe.
What dimensions are supplied for the 1" CTS pipe?
The supplied product information identifies the pipe as 1.126" x .099".
What lengths are available?
This listing includes 150', 300', and 500' coil lengths.
Can this pipe be used for Natural Gas?
Yes. Pro-Flex identifies Natural Gas as an approved gas for the PEIPS/PECTS Series.
Can this pipe be used for propane?
Yes. LP (Propane) Gas is also listed as an approved gas.
What is the maximum working pressure?
The manufacturer specifies a maximum working pressure of 80 PSIG for the PEIPS/PECTS Series.
What is the maximum testing pressure?
The manufacturer specifies a maximum testing pressure of 120 PSIG.
What is the temperature rating?
The PEIPS/PECTS Series is rated from -20°F to 140°F.
Is this CTS or IPS pipe?
This listing is specifically for CTS pipe. Confirm CTS sizing is required before selecting fittings or other system components.
Important Ordering & Installation Notes
- This listing is specifically for 1" CTS polyethylene gas pipe.
- Confirm CTS sizing is required before ordering.
- PECTS-01150 is the 150' configuration.
- PECTS-01300 is the 300' configuration.
- PECTS-01500 is the 500' configuration.
- Supplied dimensions are 1.126" x .099".
- Confirm fitting compatibility before installation.
- Installation must comply with applicable local codes and the Pro-Poly Installation Guide.
- Follow the fitting manufacturer's installation instructions when joining pipe.
