Pro-Flex CSST Termination Plates w/ Fittings
- Availability:
- Usually Ships in 5-7 Business Days
- Weight:
- 0.00 LBS
Description

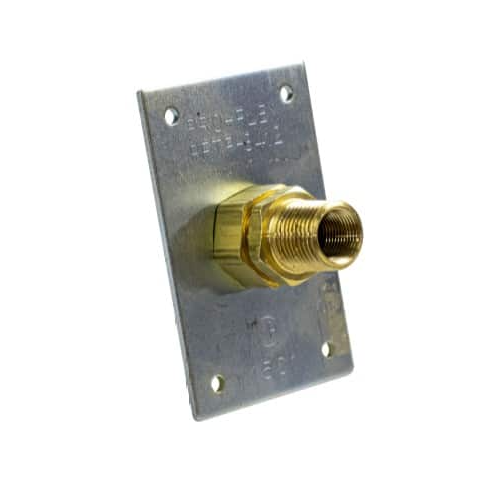

Pro-Flex Special Termination Plate with Fitting
Pro-Flex Special Termination Plate with Fitting provides a supported termination point for Pro-Flex CSST gas piping installations. The termination plate combines a rigid mounting surface with an integrated fitting, creating a convenient transition from flexible CSST tubing to threaded gas-system components.
Available for 1/2", 3/4", and 1" Pro-Flex CSST, these termination plates provide connection options ranging from 1/2" MIP - 3/8" FIP through 1" MIP - 3/4" FIP.
Product Highlights
- Special termination plate with integrated Pro-Flex fitting
- Designed for Pro-Flex CSST gas piping installations
- Provides a supported CSST termination point
- Available for 1/2", 3/4", and 1" tube sizes
- Multiple MIP and FIP connection sizes available
- Rigid plate provides a convenient mounting surface
- Creates a defined transition from flexible CSST to threaded components
- Suitable for gas piping rough-in and termination applications
- Available as Pro-Flex part numbers PFST-12, PFST-34, and PFST-01
Available Models
| Part Number | Tube Size | Description |
|---|---|---|
| PFST-12 | 1/2" | Special Term Plate with Fitting (1/2" MIP - 3/8" FIP) |
| PFST-34 | 3/4" | Special Term Plate with Fitting (3/4" MIP - 1/2" FIP) |
| PFST-01 | 1" | Special Term Plate with Fitting (1" MIP - 3/4" FIP) |
Technical Specifications
| Manufacturer | Pro-Flex |
|---|---|
| Product Type | Special Termination Plate with Fitting |
| Compatible Piping System | Pro-Flex CSST |
| Available Tube Sizes | 1/2", 3/4", and 1" |
| PFST-12 Connection | 1/2" MIP - 3/8" FIP |
| PFST-34 Connection | 3/4" MIP - 1/2" FIP |
| PFST-01 Connection | 1" MIP - 3/4" FIP |
| Configuration | Termination Plate with Integrated Fitting |
| Primary Application | CSST Termination and Gas Piping Rough-In |
What Is a Special Termination Plate with Fitting?
A special termination plate provides a defined transition point where flexible Pro-Flex CSST terminates and connects to threaded gas-system components. The integrated fitting and mounting plate combine the CSST connection and mounting point into a single assembly.
The plate can be secured to an appropriate mounting surface, helping support the termination fitting while providing threaded connection options for downstream gas piping components.
This configuration is useful for creating organized and supported gas piping rough-ins where flexible CSST transitions to valves, appliance connections, or other compatible threaded components.
Why Use a Termination Plate?
Supported CSST Termination
- Provides a defined termination point for Pro-Flex CSST
- Supports the fitting at the transition location
- Provides a rigid mounting surface
- Helps organize gas piping rough-ins
- Useful where a supported threaded connection is required
Integrated Fitting
- Mounting plate and fitting are combined into one assembly
- Designed for use with Pro-Flex CSST
- Provides threaded connections for downstream components
- Available across three common CSST tube sizes
- Simplifies the transition between flexible tubing and threaded connections
Available Connection Sizes
PFST-12 – 1/2"
Designed for 1/2" Pro-Flex CSST with a fitting configuration of 1/2" MIP - 3/8" FIP.
PFST-34 – 3/4"
Designed for 3/4" Pro-Flex CSST with a fitting configuration of 3/4" MIP - 1/2" FIP.
PFST-01 – 1"
Designed for 1" Pro-Flex CSST with a fitting configuration of 1" MIP - 3/4" FIP.
Common Applications
CSST Gas Piping
- Pro-Flex CSST termination points
- Gas piping rough-ins
- Wall-mounted gas connections
- Supported CSST-to-threaded transitions
- Residential and light-commercial gas piping systems
Equipment & Appliance Connections
- Gas appliance rough-ins
- Valve connection points
- Mechanical equipment gas piping
- Fireplace and hearth gas installations
- Locations requiring a supported threaded termination
Pro-Flex CSST System Compatibility
The Special Termination Plate with Fitting is part of the Pro-Flex CSST termination system. Pro-Flex offers corrugated stainless steel tubing as a flexible alternative to rigid gas piping installations.
The Pro-Flex product guide identifies its fitting system for use with both traditional Pro-Flex Yellow CSST and Flak Jacket arc-resistant CSST. Verify the compatibility of all tubing, fittings, valves, and termination components with the specific Pro-Flex system being installed.
Choosing the Correct Model
| Use This Model | CSST Size | Threaded Connection |
|---|---|---|
| PFST-12 | 1/2" | 1/2" MIP - 3/8" FIP |
| PFST-34 | 3/4" | 3/4" MIP - 1/2" FIP |
| PFST-01 | 1" | 1" MIP - 3/4" FIP |
Installation Considerations
- Select the termination plate that matches the Pro-Flex CSST tube size being installed.
- Verify the required MIP and FIP connection sizes before ordering.
- Secure the termination plate to an appropriate mounting surface.
- Use compatible Pro-Flex CSST tubing, fittings, and system components.
- Follow current Pro-Flex installation instructions when preparing and connecting CSST.
- Ensure connected valves, piping, and equipment are supported as required.
- Confirm that threaded connections are appropriate for the intended gas piping application.
- Leak-test completed connections according to applicable installation requirements.
- Follow applicable fuel-gas codes and local requirements.
- Gas piping installation should be completed by qualified personnel.
Need Help Selecting a Pro-Flex Termination Plate?
Our industrial PVF specialists can help review your Pro-Flex CSST tube size, threaded connection requirements, termination configuration, and application before you order.
Frequently Asked Questions
What is the Pro-Flex Special Termination Plate with Fitting used for?
It provides a supported termination point where Pro-Flex CSST can transition to compatible threaded gas-system components.
What sizes are available?
Pro-Flex offers these termination plates for 1/2", 3/4", and 1" CSST.
What connections does the PFST-12 provide?
PFST-12 is for 1/2" CSST and has a 1/2" MIP - 3/8" FIP fitting configuration.
What connections does the PFST-34 provide?
PFST-34 is for 3/4" CSST and has a 3/4" MIP - 1/2" FIP fitting configuration.
What connections does the PFST-01 provide?
PFST-01 is for 1" CSST and has a 1" MIP - 3/4" FIP fitting configuration.
Why use a termination plate with CSST?
A termination plate provides a defined mounting and transition point between flexible CSST and compatible threaded gas-system components.
Is this designed specifically for Pro-Flex CSST?
Yes. The Special Termination Plate with Fitting is listed by Pro-Flex as a CSST termination option.
How do I select the correct termination plate?
Match the plate to the Pro-Flex CSST tube size and verify that its MIP and FIP connection sizes match the components being connected.
Can these termination plates be used in gas appliance rough-ins?
They provide a supported threaded termination suitable for gas piping rough-in configurations. Verify the complete installation and connected components for the specific appliance and application.
Who should install Pro-Flex CSST termination components?
Gas piping and CSST components should be installed by qualified personnel according to current Pro-Flex installation instructions and applicable fuel-gas codes.
Important Ordering Notes
- PFST-12 is for 1/2" CSST with a 1/2" MIP - 3/8" FIP fitting.
- PFST-34 is for 3/4" CSST with a 3/4" MIP - 1/2" FIP fitting.
- PFST-01 is for 1" CSST with a 1" MIP - 3/4" FIP fitting.
- Confirm the Pro-Flex CSST tube size before ordering.
- Confirm the required MIP and FIP threaded connection sizes.
- Verify compatibility with the applicable Pro-Flex CSST system and connected components.
- Follow current Pro-Flex installation instructions and applicable fuel-gas codes.
- Secure the plate to an appropriate mounting surface as required by the installation.
- Installation should be completed by qualified gas-piping personnel.
