Pro-Flex CSST Female Fittings
- Availability:
- Usually Ships in 5-7 Business Days
- Weight:
- 0.00 LBS
Description

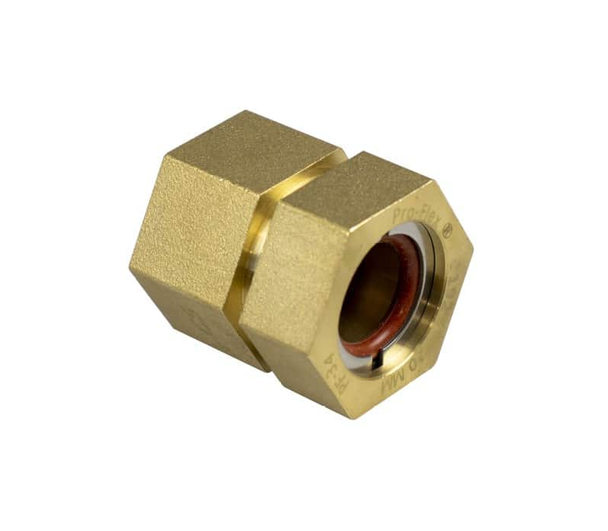

Pro-Flex CSST Female Fittings
Pro-Flex CSST Female Fittings provide a transition from Pro-Flex corrugated stainless steel gas tubing to compatible threaded gas piping components. These fittings are designed as part of the Pro-Flex fitting system and are available for common 1/2", 3/4", and 1" CSST sizes.
The Pro-Flex product guide lists three female fitting models: PFFN-1212, PFFN-3406, and PFFN-0106. They correspond to 1/2", 3/4", and 1" tube sizes respectively.
Product Highlights
- Female fitting for Pro-Flex CSST gas piping systems
- Designed for transitioning CSST to compatible threaded components
- Available in 1/2", 3/4", and 1" tube sizes
- Part of the Pro-Flex CSST fitting system
- Compact fitting configuration for gas piping installations
- Suitable for properly designed natural-gas and propane systems
- Available as Pro-Flex part numbers PFFN-1212, PFFN-3406, and PFFN-0106
Available Models
| Part Number | Tube Size | Description |
|---|---|---|
| PFFN-1212 | 1/2" | Female Fitting |
| PFFN-3406 | 3/4" | Female Fitting |
| PFFN-0106 | 1" | Female Fitting |
Technical Specifications
| Manufacturer | Pro-Flex |
|---|---|
| Product Type | CSST Female Fitting |
| Compatible Piping System | Pro-Flex CSST |
| Available Tube Sizes | 1/2", 3/4", and 1" |
| PFFN-1212 Size | 1/2" |
| PFFN-3406 Size | 3/4" |
| PFFN-0106 Size | 1" |
| Configuration | Female Fitting |
| Primary Application | CSST-to-Threaded Gas Piping Transition |
What Is a Pro-Flex Female Fitting?
A Pro-Flex female fitting is used to terminate a section of Pro-Flex CSST and provide a female threaded connection for a compatible gas-system component.
The fitting forms part of the Pro-Flex CSST connection system and allows flexible corrugated stainless steel tubing to transition to threaded valves, fittings, piping, or equipment connections where the required configuration calls for a female connection.
Select the fitting according to the nominal CSST tube size being installed.
Why Use a Female CSST Fitting?
Threaded Transition
- Provides a transition from Pro-Flex CSST to threaded components
- Creates a female connection at the CSST termination
- Useful for valves, piping fittings, and equipment connections
- Provides a defined termination point for flexible gas tubing
- Available in three common CSST sizes
Pro-Flex System Compatibility
- Designed as part of the Pro-Flex fitting system
- Matched to specific Pro-Flex CSST tube sizes
- Suitable for gas piping rough-in and equipment connections
- Compact configuration for mechanical and appliance installations
- Uses the Pro-Flex CSST fitting assembly method
Available Female Fitting Sizes
PFFN-1212 – 1/2"
The PFFN-1212 is designed for 1/2" Pro-Flex CSST and provides a female fitting termination for compatible threaded gas-system components.
PFFN-3406 – 3/4"
The PFFN-3406 is designed for 3/4" Pro-Flex CSST and provides a female fitting termination for compatible threaded gas-system components.
PFFN-0106 – 1"
The PFFN-0106 is designed for 1" Pro-Flex CSST and provides a female fitting termination for compatible threaded gas-system components.
Common Applications
CSST Gas Piping
- Pro-Flex CSST termination points
- Gas piping rough-ins
- Threaded transitions from flexible gas tubing
- Residential gas piping systems
- Light-commercial gas piping systems
Equipment & Valve Connections
- Gas valve connections
- Appliance gas piping
- Water-heater gas supply piping
- Furnace and boiler gas piping
- Fireplace and hearth gas installations
Choosing the Correct Female Fitting
| Part Number | CSST Tube Size | Fitting Type |
|---|---|---|
| PFFN-1212 | 1/2" | Female Fitting |
| PFFN-3406 | 3/4" | Female Fitting |
| PFFN-0106 | 1" | Female Fitting |
Pro-Flex CSST System Compatibility
The Pro-Flex product guide identifies these female fittings as fittings for use with Pro-Flex CSST. The guide also states that its fitting family is intended for use with both Pro-Flex Yellow CSST and Flak Jacket arc-resistant CSST.
Verify that the tubing size, fitting, and connected threaded component are compatible with the specific Pro-Flex system being installed.
Pro-Flex Fitting Installation
Pro-Flex describes its fitting installation as a three-step process. The CSST jacket is stripped back, the retainer, slide ring, and O-ring are positioned in the specified tubing valleys, and the fitting is then tightened according to the manufacturer's procedure.
Always refer to current Pro-Flex installation instructions for the complete assembly procedure, tubing preparation requirements, tightening procedure, inspection, and testing requirements.
Installation Considerations
- Select the female fitting that matches the nominal Pro-Flex CSST tube size.
- Verify the required threaded connection before ordering.
- Use compatible Pro-Flex tubing and fitting components.
- Prepare the CSST according to current Pro-Flex installation instructions.
- Ensure all fitting components are properly positioned before tightening.
- Properly support the connected piping and equipment as required.
- Protect exposed CSST where required by the installation.
- Leak-test completed gas piping connections according to applicable requirements.
- Follow applicable fuel-gas codes and local installation requirements.
- Installation should be completed by qualified gas-piping personnel.
Need Help Selecting a Pro-Flex Female Fitting?
Our industrial PVF specialists can help review your Pro-Flex CSST size, threaded connection requirements, piping configuration, and application before you order.
Frequently Asked Questions
What is a Pro-Flex female fitting used for?
It is used to terminate Pro-Flex CSST and provide a female threaded connection for a compatible gas-system component.
What sizes are available?
The listed female fittings are available for 1/2", 3/4", and 1" Pro-Flex CSST.
What size is PFFN-1212?
PFFN-1212 is the 1/2" Pro-Flex female fitting.
What size is PFFN-3406?
PFFN-3406 is the 3/4" Pro-Flex female fitting.
What size is PFFN-0106?
PFFN-0106 is the 1" Pro-Flex female fitting.
Can these fittings be used with Pro-Flex Yellow CSST?
Yes. The manufacturer's product guide lists the fitting family for use with Pro-Flex Yellow CSST.
Can these fittings be used with Flak Jacket CSST?
The Pro-Flex product guide identifies its fitting system for use with both Pro-Flex Yellow CSST and Flak Jacket arc-resistant CSST.
How do I select the correct female fitting?
Match the fitting to the nominal Pro-Flex CSST tube size and confirm that the female threaded connection is appropriate for the component being connected.
Can these fittings be used in natural-gas and propane systems?
Pro-Flex CSST is offered for natural-gas and propane piping systems. Confirm that the complete piping system and connected components are suitable for the specific application.
Who should install Pro-Flex CSST female fittings?
CSST gas piping fittings should be installed by qualified personnel according to current Pro-Flex installation instructions and applicable fuel-gas codes.
Important Ordering Notes
- PFFN-1212 is the 1/2" female fitting.
- PFFN-3406 is the 3/4" female fitting.
- PFFN-0106 is the 1" female fitting.
- Select the fitting that matches the nominal Pro-Flex CSST tube size.
- Confirm the required female threaded connection before ordering.
- Verify compatibility with the applicable Pro-Flex CSST system and connected components.
- Follow current Pro-Flex installation instructions when assembling the fitting.
- Leak-test the completed connection according to applicable requirements.
- Follow applicable fuel-gas codes and local installation requirements.
- Installation should be completed by qualified gas-piping personnel.
