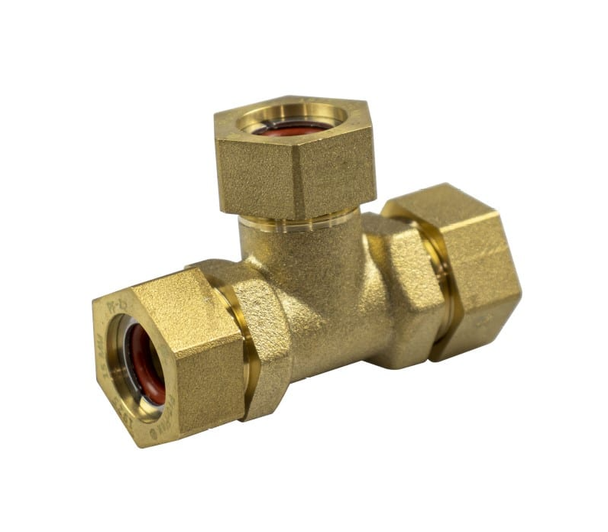

Pro-Flex CSST Tee Fittings
- Availability:
- Usually Ships in 5-7 Business Days
- Weight:
- 0.00 LBS
Description
Pro-Flex CSST Tees
Pro-Flex CSST Tees provide branch connections for distributing gas piping from a main Pro-Flex CSST run into additional tubing or threaded branches. The product family includes standard Pro-Flex tees, reducing configurations, a bullhead tee, and models incorporating an NPT branch connection.
Available in configurations from 1/2" through 1", these fittings allow installers to match the run and branch sizes required by the gas piping layout. The Pro-Flex product guide identifies standard and NPT tee configurations as part of its CSST fitting system.
Product Highlights
- Branch fittings for Pro-Flex CSST gas piping systems
- Standard Pro-Flex CSST tee configurations available
- Reducing tee configurations for different run and branch sizes
- Bullhead tee configuration available
- NPT branch tee models available for threaded transitions
- Sizes ranging from 1/2" through 1"
- Designed for organized gas distribution and branch piping layouts
- Multiple run x run x rise configurations available
- Suitable for properly designed natural-gas and propane piping systems
Available Models
| Part Number | Tube Size | Description |
|---|---|---|
| PFTE-BBB6 | 1/2" | 1/2" x 1/2" x 1/2" Pro-Flex Tee |
| PFTE-BBC6 | 1/2" / 3/4" | 1/2" x 1/2" x 3/4" Pro-Flex Tee Bullhead |
| PFTE-CCB6 | 1/2" / 3/4" | 3/4" x 3/4" x 1/2" Pro-Flex Tee |
| PFTE-DDB6 | 1" / 1/2" | 1" x 1" x 1/2" Pro-Flex Tee |
| PFTE-DDD6 | 1" | 1" x 1" x 1" Pro-Flex Tee |
| PFTE-DDC6 | 1" x 3/4" | 1" x 1" x 3/4" Pro-Flex Tee |
| PFTE-CBB6 | 3/4" / 1/2" | 3/4" x 1/2" x 1/2" Pro-Flex Tee |
| PFTE-CCC6 | 3/4" | 3/4" x 3/4" x 3/4" Pro-Flex Tee |
| PFTF-BBB6 | 1/2" | 1/2" PF x 1/2" PF x 1/2" NPT Tee |
| PFTF-CCB6 | 3/4" | 3/4" PF x 3/4" PF x 1/2" NPT Tee |
| PFTF-DDB6 | 1" | 1" PF x 1" PF x 1/2" NPT Tee |
| PFTF-CBB6 | 3/4" / 1/2" | 3/4" PF x 1/2" PF x 1/2" NPT Tee |
| PFTF-CCC6 | 3/4" | 3/4" PF x 3/4" PF x 3/4" NPT Tee |
Technical Specifications
| Manufacturer | Pro-Flex |
|---|---|
| Product Type | CSST Tee / NPT Branch Tee |
| Compatible Piping System | Pro-Flex CSST |
| Available Nominal Sizes | 1/2", 3/4", and 1" |
| Configurations | Equal Tee, Reducing Tee, Bullhead Tee and NPT Branch Tee |
| Connection Arrangement | Run x Run x Rise |
| PF Tee Connections | Pro-Flex CSST Connections |
| NPT Tee Branch Connections | 1/2" or 3/4" NPT Depending on Model |
| Primary Application | Branching and Distribution in Pro-Flex Gas Piping Systems |
What Is a Pro-Flex CSST Tee?
A Pro-Flex CSST tee is a branch fitting used to divide a gas piping run into multiple directions. The fitting provides two run connections and a third branch or rise connection, allowing gas distribution to multiple portions of the piping system.
Equal-size tees maintain the same nominal tubing size through all three connections, while reducing tees provide a smaller or larger branch where required by the piping layout.
Pro-Flex also offers tee configurations with an NPT connection at the branch, providing a transition point between Pro-Flex CSST and compatible threaded gas piping components.
Standard Pro-Flex Tee Configurations
Equal Tees
- PFTE-BBB6: 1/2" x 1/2" x 1/2"
- PFTE-CCC6: 3/4" x 3/4" x 3/4"
- PFTE-DDD6: 1" x 1" x 1"
- Maintains the same nominal size through all three branches
- Useful for equal-size gas distribution layouts
Reducing & Bullhead Tees
- PFTE-CCB6: 3/4" x 3/4" x 1/2"
- PFTE-DDB6: 1" x 1" x 1/2"
- PFTE-DDC6: 1" x 1" x 3/4"
- PFTE-CBB6: 3/4" x 1/2" x 1/2"
- PFTE-BBC6: 1/2" x 1/2" x 3/4" bullhead configuration
NPT Branch Tee Configurations
1/2" NPT Branch Models
- PFTF-BBB6: 1/2" PF x 1/2" PF x 1/2" NPT
- PFTF-CCB6: 3/4" PF x 3/4" PF x 1/2" NPT
- PFTF-DDB6: 1" PF x 1" PF x 1/2" NPT
- PFTF-CBB6: 3/4" PF x 1/2" PF x 1/2" NPT
3/4" NPT Branch Model
- PFTF-CCC6: 3/4" PF x 3/4" PF x 3/4" NPT
- Provides a threaded branch connection from a Pro-Flex CSST run
- Useful where the branch must transition to a compatible NPT component
Understanding Run x Run x Rise
Pro-Flex identifies its tee configurations using a run x run x rise arrangement. The first two dimensions describe the two inline run connections, while the third dimension describes the branch or rise connection.
For example, a 3/4" x 3/4" x 1/2" tee has two 3/4" run connections and a 1/2" branch connection. This configuration allows the installer to continue the larger main run while feeding a smaller downstream branch.
Common Applications
Gas Distribution
- Branching a main CSST gas line
- Supplying multiple gas appliances
- Residential gas distribution systems
- Light-commercial gas piping layouts
- Mechanical-room gas distribution
Equipment Branches
- Water heaters
- Furnaces and boilers
- Gas ranges and cooking equipment
- Fireplaces and gas logs
- Other gas-fired equipment supplied from a common piping run
Choosing the Correct Tee
| Part Number | Run x Run x Rise | Configuration |
|---|---|---|
| PFTE-BBB6 | 1/2" x 1/2" x 1/2" | Equal Pro-Flex Tee |
| PFTE-BBC6 | 1/2" x 1/2" x 3/4" | Bullhead Pro-Flex Tee |
| PFTE-CCB6 | 3/4" x 3/4" x 1/2" | Reducing Pro-Flex Tee |
| PFTE-DDB6 | 1" x 1" x 1/2" | Reducing Pro-Flex Tee |
| PFTE-DDD6 | 1" x 1" x 1" | Equal Pro-Flex Tee |
| PFTE-DDC6 | 1" x 1" x 3/4" | Reducing Pro-Flex Tee |
| PFTE-CBB6 | 3/4" x 1/2" x 1/2" | Reducing Pro-Flex Tee |
| PFTE-CCC6 | 3/4" x 3/4" x 3/4" | Equal Pro-Flex Tee |
| PFTF-BBB6 | 1/2" PF x 1/2" PF x 1/2" NPT | NPT Branch Tee |
| PFTF-CCB6 | 3/4" PF x 3/4" PF x 1/2" NPT | NPT Branch Tee |
| PFTF-DDB6 | 1" PF x 1" PF x 1/2" NPT | NPT Branch Tee |
| PFTF-CBB6 | 3/4" PF x 1/2" PF x 1/2" NPT | Reducing NPT Branch Tee |
| PFTF-CCC6 | 3/4" PF x 3/4" PF x 3/4" NPT | NPT Branch Tee |
Pro-Flex CSST System Compatibility
The manufacturer's product guide identifies these tee fittings within the Pro-Flex CSST fitting family. Pro-Flex states that its fittings are designed for use with both traditional Pro-Flex Yellow CSST and Flak Jacket arc-resistant CSST.
Always match each fitting connection to the correct tubing size and verify compatibility with the specific Pro-Flex tubing and system components being installed.
Installation & Sizing Considerations
- Select the tee according to the required run x run x rise configuration.
- Verify all Pro-Flex CSST connection sizes before ordering.
- For PFTF models, confirm the required NPT branch size.
- Size the main run and branch piping according to the connected gas loads.
- Use compatible Pro-Flex tubing, fittings, and installation components.
- Follow current Pro-Flex fitting assembly and installation instructions.
- Properly support the connected CSST and piping components.
- Protect CSST where required by the installation and applicable codes.
- Leak-test all completed gas piping connections according to applicable requirements.
- Installation should be completed by qualified gas-piping personnel.
Pro-Flex Fitting Installation
Pro-Flex describes its CSST fitting installation process as stripping the tubing jacket, positioning the retainer, slide ring and O-ring in the specified tubing valleys, and tightening the fitting according to manufacturer instructions.
Always use the current Pro-Flex installation instructions for complete preparation, assembly, tightening, protection, bonding, inspection, and testing requirements.
Need Help Selecting a Pro-Flex Tee?
Our industrial PVF specialists can help review your Pro-Flex CSST sizes, run and branch configuration, NPT connection requirements, connected gas loads, and application before you order.
Frequently Asked Questions
What is a Pro-Flex CSST tee used for?
A Pro-Flex tee creates a branch connection within a CSST gas piping system, allowing one gas piping run to supply multiple downstream runs.
What does run x run x rise mean?
The first two dimensions identify the inline run connections, while the third dimension identifies the branch or rise connection.
What is the difference between PFTE and PFTF tees?
PFTE models use Pro-Flex connections for the tee configuration, while PFTF models incorporate an NPT connection at the branch.
What is the PFTE-BBB6 configuration?
PFTE-BBB6 is a 1/2" x 1/2" x 1/2" equal Pro-Flex tee.
What is the PFTE-BBC6 bullhead tee configuration?
PFTE-BBC6 is a 1/2" x 1/2" x 3/4" Pro-Flex bullhead tee.
Which model provides a 1" x 1" x 1/2" connection?
PFTE-DDB6 provides a 1" x 1" run with a 1/2" Pro-Flex branch.
Which model provides a 1" x 1" x 3/4" connection?
PFTE-DDC6 provides a 1" x 1" run with a 3/4" Pro-Flex branch.
Which tee provides a 3/4" NPT branch?
PFTF-CCC6 provides 3/4" PF x 3/4" PF x 3/4" NPT connections.
Can reducing tees be used to supply a smaller gas branch?
Reducing tee configurations provide different run and branch sizes. The complete gas piping system must still be sized according to the required gas load, pressure, piping length, and applicable installation requirements.
Who should install Pro-Flex CSST tees?
CSST gas piping fittings should be installed by qualified personnel according to current Pro-Flex installation instructions and applicable fuel-gas codes.
Important Ordering Notes
- Confirm all three connection sizes before ordering a tee.
- PFTE models provide Pro-Flex CSST branch configurations.
- PFTF models incorporate an NPT branch connection.
- PFTE-BBC6 is a 1/2" x 1/2" x 3/4" bullhead tee.
- PFTE-DDD6 is a 1" x 1" x 1" equal tee.
- PFTE-DDC6 is a 1" x 1" x 3/4" reducing tee.
- Confirm the required NPT connection size when selecting a PFTF model.
- Gas piping must be sized for the connected appliance loads and system conditions.
- Follow current Pro-Flex installation instructions and applicable fuel-gas codes.
- Installation should be completed by qualified gas-piping personnel.
