Pro-Flex

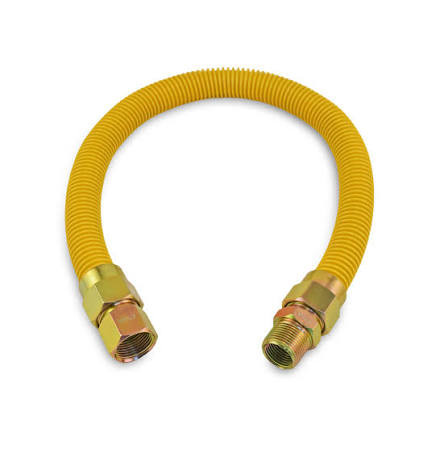

Pro-Flex 3/4" ID x 1" OD Gas Appliance Connector - 3/4" FIP x 3/4" FIP
- Availability:
- Usually Ships in 5-7 Business Days
- Weight:
- 0.00 LBS
Description
Pro-Flex 3/4" ID x 1" OD Gas Appliance Connector - 3/4" FIP x 3/4" FIP
Pro-Flex 3/4" ID x 1" OD Gas Appliance Connectors provide a flexible connection solution for compatible gas appliances requiring a 3/4" FIP x 3/4" FIP connection configuration. This larger-diameter connector family features a 3/4" inside diameter and 1" outside diameter for compatible gas-appliance installations.
Available in 24", 36", and 48" lengths, these connectors provide multiple installation options while maintaining the same tube diameter and female pipe connection configuration throughout the product family.
Product Highlights
- Flexible gas appliance connector
- 3/4" inside diameter
- 1" outside diameter
- 3/4" FIP x 3/4" FIP connection configuration
- Female iron pipe connections on both ends
- Larger-diameter design for compatible gas appliances
- Available in 24", 36", and 48" lengths
- Multiple length options for different installation layouts
- Flexible construction simplifies final appliance connections
- Manufactured by Pro-Flex
Technical Specifications
| Manufacturer | Pro-Flex |
|---|---|
| Product Type | Flexible Gas Appliance Connector |
| Inside Diameter | 3/4" |
| Outside Diameter | 1" |
| Connection - End 1 | 3/4" FIP |
| Connection - End 2 | 3/4" FIP |
| Connection Configuration | 3/4" FIP x 3/4" FIP |
| Available Lengths | 24", 36", and 48" |
| Estimated Weight Range | Approximately 0.95-1.40 lb, depending on length |
Available Sizes
| Part Number | Tube Size | Length | Est. Weight |
|---|---|---|---|
| PFAC-34C-44-24 | 3/4" ID x 1" OD | 24" | 0.95 lb |
| PFAC-34C-44-36 | 3/4" ID x 1" OD | 36" | 1.15 lb |
| PFAC-34C-44-48 | 3/4" ID x 1" OD | 48" | 1.40 lb |
Larger-Diameter Gas Appliance Connection
3/4" ID Connector
The 3/4" inside diameter provides a larger flow path than smaller appliance connector sizes and is intended for compatible gas-appliance installations requiring this connector diameter.
Flexible Installation
Flexible construction helps simplify the final connection between compatible gas-supply piping and the appliance while accommodating common installation layouts.
Available Connector Lengths
24" Length
Provides a compact connection option for installations where the appliance is located relatively close to the gas supply.
36" Length
Provides additional reach for installations requiring more distance between the gas supply and appliance connection.
48" Length
Provides the longest option in this product family for installations requiring additional connector reach.
Consistent Tube Size Across All Variants
Every connector in this product family uses the same 3/4" ID x 1" OD tube size and 3/4" FIP x 3/4" FIP connection configuration. Connector length is the primary difference between the three available variants.
3/4" FIP x 3/4" FIP Connection Configuration
3/4" FIP - End 1
One end provides a 3/4" female iron pipe connection for connection to a compatible male pipe-thread connection.
3/4" FIP - End 2
The opposite end also provides a 3/4" female iron pipe connection, creating the 3/4" FIP x 3/4" FIP configuration used throughout this connector family.
Selecting the Correct Length
Select the connector length according to the required distance between the gas supply and appliance. This family is available in 24", 36", and 48" lengths while maintaining the same 3/4" ID x 1" OD tube size and 3/4" FIP x 3/4" FIP connection configuration.
Common Applications
Larger Gas Appliances
- Compatible larger gas appliances
- Commercial cooking equipment
- Residential gas appliances requiring this connector size
- Replacement appliance connections
Flexible Gas Connections
- Final appliance connections
- Commercial mechanical installations
- Residential mechanical installations
- Other compatible gas equipment
Installation Considerations
- Confirm the required connector length before ordering.
- Verify that the installation requires a 3/4" ID connector.
- Confirm that the 3/4" FIP x 3/4" FIP connection configuration matches the installation.
- Verify appliance and gas-supply connection sizes before installation.
- Confirm that mating connections provide the appropriate male pipe threads.
- Confirm that the selected connector is appropriate for the appliance gas demand.
- Do not kink, crush, stretch, or excessively bend the connector.
- Use only in applications suitable for the connector and fitting configuration.
- Installation must comply with applicable fuel-gas codes and manufacturer requirements.
- Installation should be completed by qualified personnel familiar with fuel-gas systems.
Need Help Selecting a Gas Appliance Connector?
Our industrial PVF specialists can help review the required connector diameter, end connections, length, and appliance application before you order.
Frequently Asked Questions
What size is this Pro-Flex gas appliance connector?
Every connector in this product family has a 3/4" inside diameter and 1" outside diameter.
What is the connection configuration?
This connector family uses a 3/4" FIP x 3/4" FIP connection configuration, with a 3/4" female iron pipe connection on each end.
Are both ends female pipe thread?
Yes. Both ends of this connector family use 3/4" FIP connections.
What lengths are available?
Available lengths are 24", 36", and 48".
Do all lengths use the same tube size?
Yes. All three variants use the same 3/4" ID x 1" OD connector size.
Which SKU is the 24" connector?
The 24" version is Pro-Flex part number PFAC-34C-44-24.
Which SKU is the 36" connector?
The 36" version is Pro-Flex part number PFAC-34C-44-36.
Which SKU is the 48" connector?
The 48" version is Pro-Flex part number PFAC-34C-44-48.
How much does the connector weigh?
Estimated individual weights range from approximately 0.95 lb for the 24" connector to approximately 1.40 lb for the 48" connector. These are estimated weights for product and shipping setup rather than manufacturer-published specifications.
How do I choose the correct connector length?
Measure the required connection distance and select an appropriate available length while confirming that the 3/4" ID x 1" OD tube size and 3/4" FIP x 3/4" FIP fitting configuration match the installation.
Important Ordering Notes
- All variants use a 3/4" ID x 1" OD connector.
- Connection configuration: 3/4" FIP x 3/4" FIP.
- Both ends use 3/4" female iron pipe connections.
- Available lengths are 24", 36", and 48".
- Select the correct connector length before ordering.
- Verify appliance and gas-supply connection requirements before ordering.
- Confirm adequate connector capacity for the connected appliance.
- Variant weights shown are estimated values for product and shipping setup.
- Installation must comply with applicable fuel-gas codes and manufacturer requirements.
