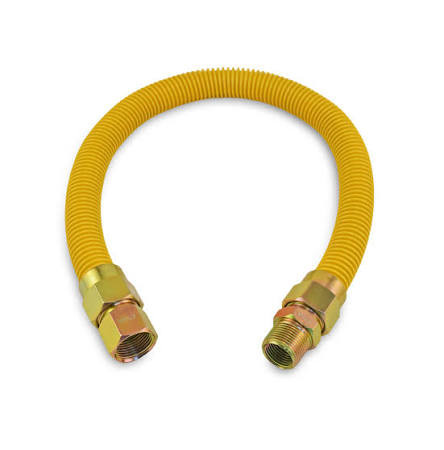

Pro-Flex 1/2" ID x 5/8" OD Gas Appliance Connector - 3/4" MIP x 3/4" FIP
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
Pro-Flex 1/2" ID x 5/8" OD Gas Appliance Connector - 3/4" MIP x 3/4" FIP
Pro-Flex Gas Appliance Connectors feature a 1/2" inside diameter x 5/8" outside diameter flexible connector with a 3/4" MIP connection on one end and 3/4" FIP connection on the other. Available in lengths from 12" through 72" to accommodate a range of appliance installation requirements.
All configurations in this listing use the same connector diameter and end connections. Select the required overall connector length.
Product Highlights
- Pro-Flex gas appliance connector
- 1/2" inside diameter
- 5/8" outside diameter
- 3/4" MIP x 3/4" FIP connection configuration
- Available in eight lengths from 12" through 72"
- Length is the only selectable variation
Technical Specifications
| Manufacturer | Pro-Flex |
|---|---|
| Product Type | Gas Appliance Connector |
| Inside Diameter | 1/2" |
| Outside Diameter | 5/8" |
| Connection 1 | 3/4" MIP |
| Connection 2 | 3/4" FIP |
| Available Lengths | 12", 18", 24", 30", 36", 48", 60", 72" |
Available Lengths
12"
- Manufacturer part number: PFAC-12C-34-12
- 1/2" ID x 5/8" OD
- 3/4" MIP x 3/4" FIP
- Length: 12"
18"
- Manufacturer part number: PFAC-12C-34-18
- 1/2" ID x 5/8" OD
- 3/4" MIP x 3/4" FIP
- Length: 18"
24"
- Manufacturer part number: PFAC-12C-34-24
- 1/2" ID x 5/8" OD
- 3/4" MIP x 3/4" FIP
- Length: 24"
30"
- Manufacturer part number: PFAC-12C-34-30
- 1/2" ID x 5/8" OD
- 3/4" MIP x 3/4" FIP
- Length: 30"
36"
- Manufacturer part number: PFAC-12C-34-36
- 1/2" ID x 5/8" OD
- 3/4" MIP x 3/4" FIP
- Length: 36"
48"
- Manufacturer part number: PFAC-12C-34-48
- 1/2" ID x 5/8" OD
- 3/4" MIP x 3/4" FIP
- Length: 48"
60"
- Manufacturer part number: PFAC-12C-34-60
- 1/2" ID x 5/8" OD
- 3/4" MIP x 3/4" FIP
- Length: 60"
72"
- Manufacturer part number: PFAC-12C-34-72
- 1/2" ID x 5/8" OD
- 3/4" MIP x 3/4" FIP
- Length: 72"
Connection Configuration
Every connector in this listing uses a 3/4" MIP x 3/4" FIP connection configuration with a 1/2" ID x 5/8" OD connector body. The connection sizes remain the same across all eight variants; only the overall connector length changes.
Selecting the Correct Length
Choose the connector according to the length required between the appliance and piping connection. Available lengths are 12", 18", 24", 30", 36", 48", 60", and 72".
Confirm the required installed length and the 3/4" MIP x 3/4" FIP connection configuration before ordering.
Need Help Selecting an Appliance Connector?
Our industrial PVF specialists can help confirm the appropriate Pro-Flex appliance connector length and connection configuration for your application.
Frequently Asked Questions
What size is the connector?
All configurations use a 1/2" inside diameter x 5/8" outside diameter connector.
What connections does this connector use?
Every variant uses a 3/4" MIP connection on one end and a 3/4" FIP connection on the other.
What lengths are available?
Available lengths are 12", 18", 24", 30", 36", 48", 60", and 72".
Do the connection sizes change between lengths?
No. Every length uses the same 3/4" MIP x 3/4" FIP connection configuration.
Does the connector diameter change between lengths?
No. All variants use the same 1/2" ID x 5/8" OD connector size.
Important Ordering Notes
- Select the required connector length before ordering.
- All variants are 1/2" ID x 5/8" OD.
- All variants use 3/4" MIP x 3/4" FIP connections.
- Confirm the required installed length and both connection types before ordering.
